A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera

  • High Light

    1080p Hd Microscope Camera

    ,

    11.6" Hd Microscope Camera

    ,

    OPTO EDU Hd Microscope Camera

  • Sensor
    1/2.8" Sony Star Light Level CMOS Sensor
  • Resolution
    5.0M CMOS
  • LCD Screen
    11.6" LCD, Resolution 1920x1080p High Clearance Screen
  • Output
    HDMI, USB Hard Disk
  • Pixel Size
    2.0x2.0um
  • Power Supply
    DC 12V/2A Power Adapter, Input 100-240V AC
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.3550
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera

5.0M, 11.6" LCD, 1/2.8" CMOS, Screen Resolution 1920*1080 @60FPS, HDMI+USB Mouse Control Menu For Measure, DC12V/2A, 100~240V



Items A59.3550  11.6" LCD Digital Camera, HDMI+Mouse Measure, 5.0M
Sensor 1/2.8" Sony Star Light Level CMOS Sensor
Resolution 5.0M CMOS
LCD Screen 11.6" LCD, Resolution 1920x1080p High Clearance Screen
Output HDMI, USB Hard Disk
Pixel Size 2.0x2.0um
Power Supply DC 12V/2A Power Adapter, Input 100-240V AC
Function Photo, Video, Meaure, Compare
Support USB Mouse Control To Capture Photo, Video, Measure, Setting
Brightness, Contrast, Exposure, White Balance Adjustable
Storage USB 2.0 Hard Disk
Net Line 8 Kinds, Width & Color Adjustable
Size / Weight Product Size 268x165x83mm, Net Weight 1.0kg
Standard Package LCD Camera, DC12V Power Adapter
USB Mouse Control
Operation Manual
1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera.

2. Turn on the power switch, when the camera is running, the LED light turns blue

3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon :
Take Photo, Record Video, Preview, Measure, Setting.

4. Move the mouse to the middle position at the bottom of the screen to call up the
QUICK MENU, including icon:
Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split

5. Click the
MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics.

6. Click the EDIT button and fill in the name to of new ruler to
CALIBRATE. Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps.

7.Click mm/PX to open or close the screen scale.

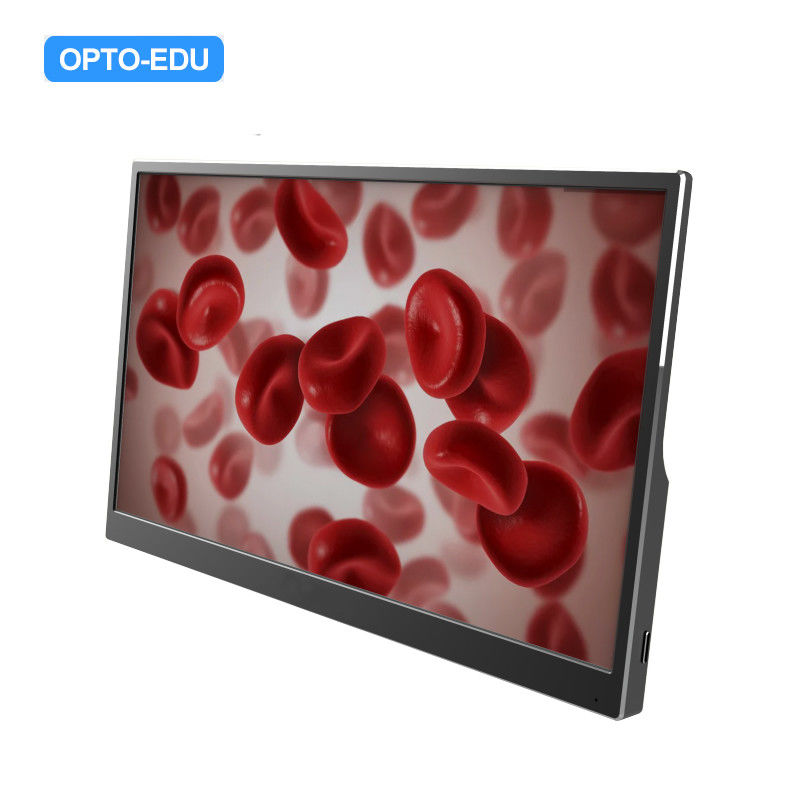

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera 0

At present, the pixels of digital cameras are getting higher and higher, especially the widespread use of mobile phone camera functions, high pixels are loved by everyone. Microscope digital cameras have also introduced digital cameras with 10 million pixels or even 20 million pixels. Most users of microscopes regard the pixel height as the primary condition when choosing a dedicated digital camera. In fact, there is a misunderstanding: the pixels calibrated by the camera are not necessarily real pixels; the reason is that the pixels of some cameras are pixels after interpolation, not the real pixels reflected by the chip; second; you see on the computer The vast majority of image pixels are much lower than the real pixels of the picture taken. The reason is simple: the resolution of your monitor is low, and the image displayed is a compressed and extracted image. Especially for USB cameras, the images we see are compressed images processed by the computer, and the images presented are all images suitable for the computer screen: your computer monitor resolution is 1280X1024, and the preview image displayed is 1.31 million Pixels, your computer monitor is 1920X1080, and the actual preview image is 2.07 million pixels...

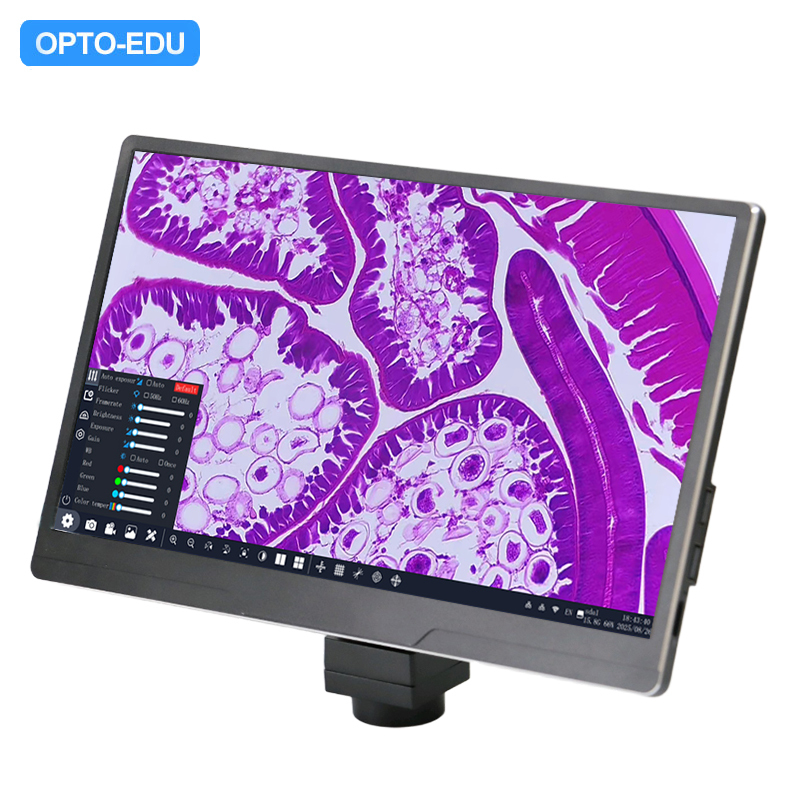

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera 1

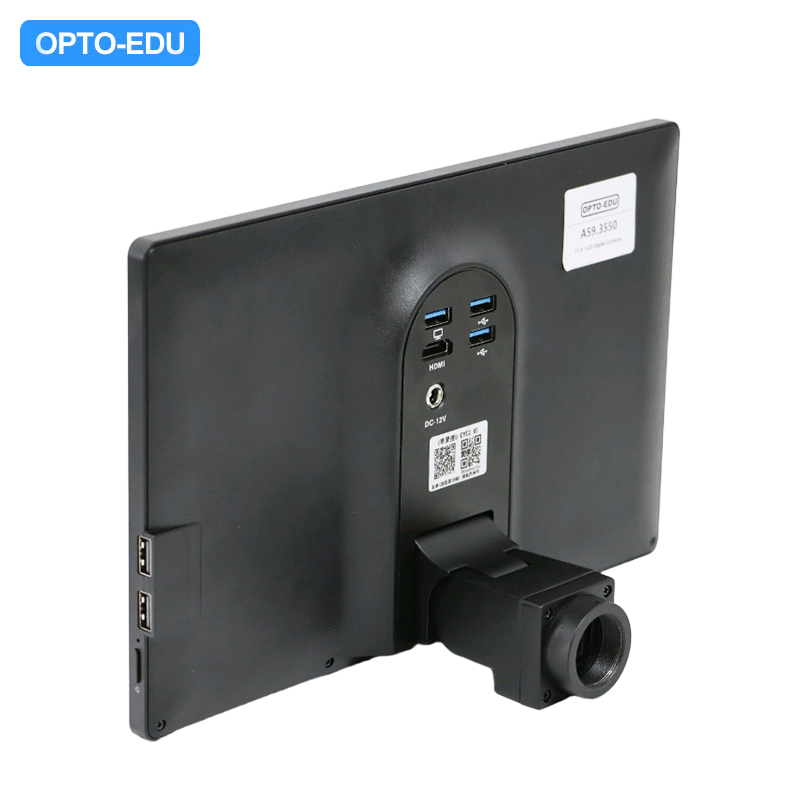

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera 2

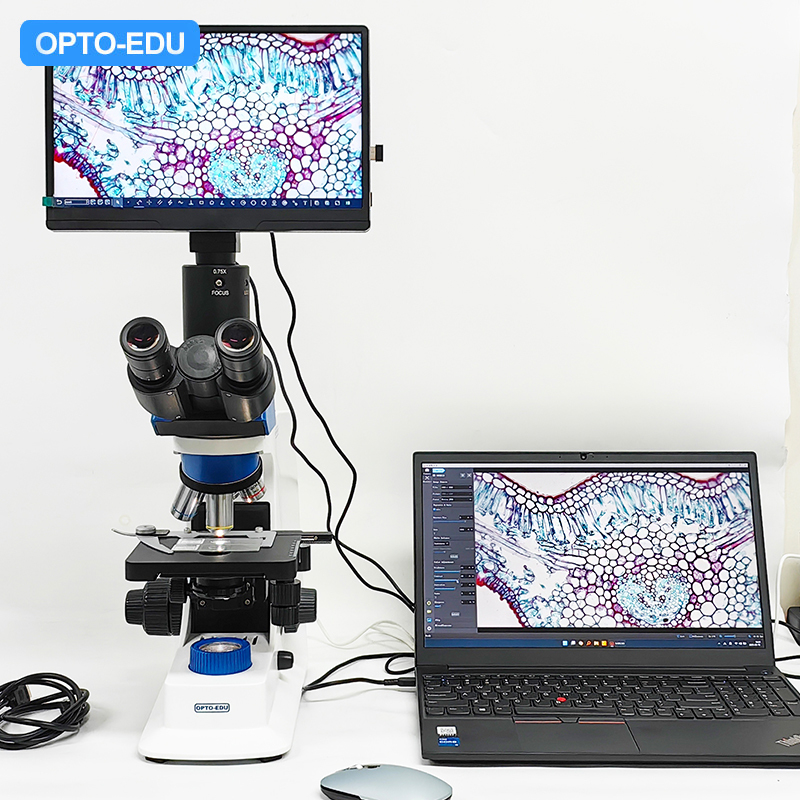

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera 3

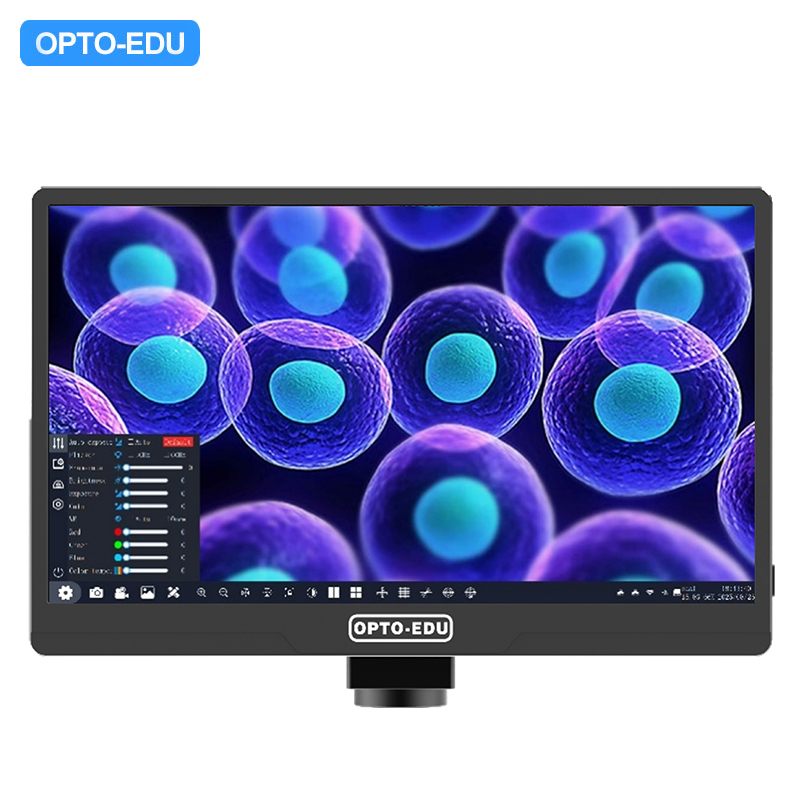

A59.3550 OPTO EDU 11.6" 1080p Hd Microscope Camera 4
