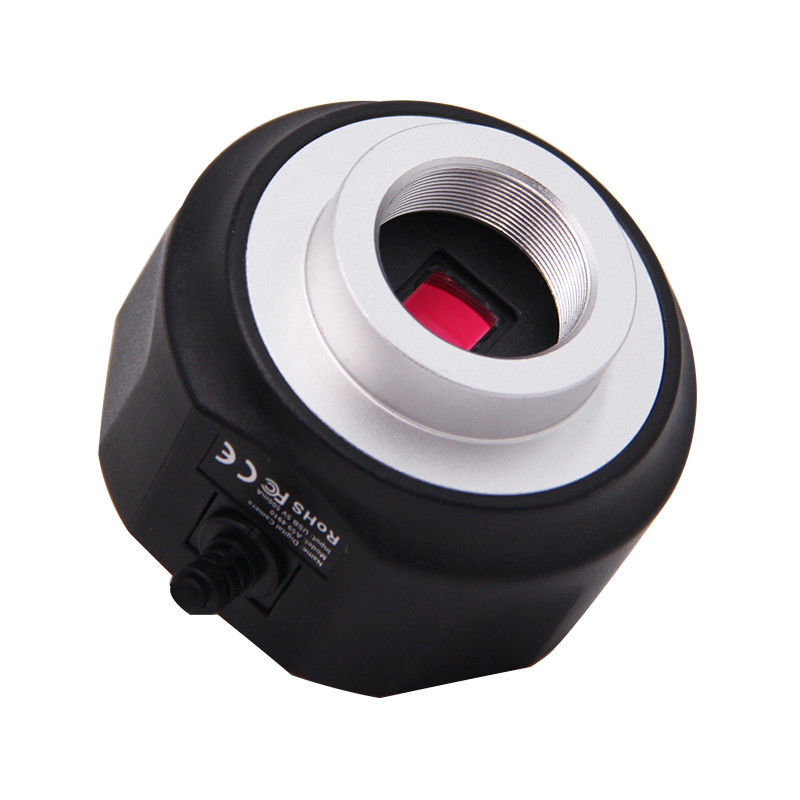

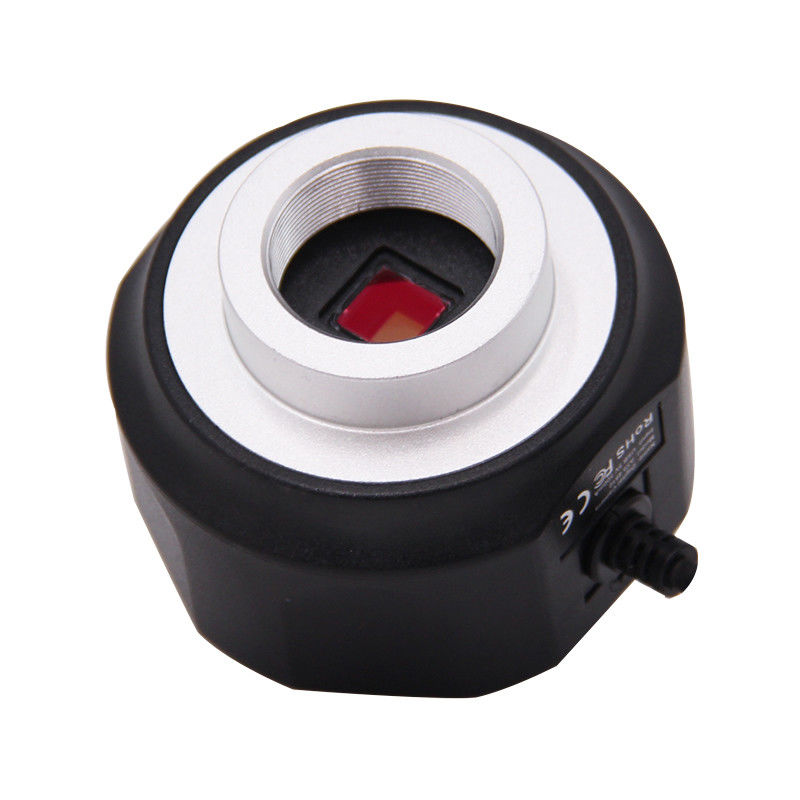

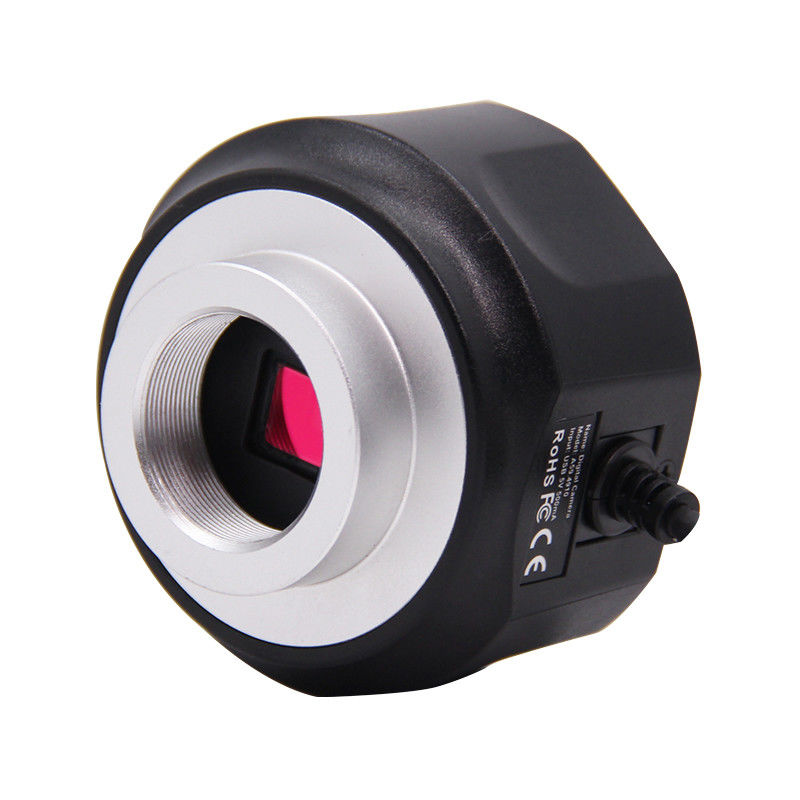

OPTO-EDU A59.4910 5mp Digital Eyepiece Camera For Microscope With Electronic Usb
--A closed structure with color filter built-in, preventing dust from CMOS sensor.

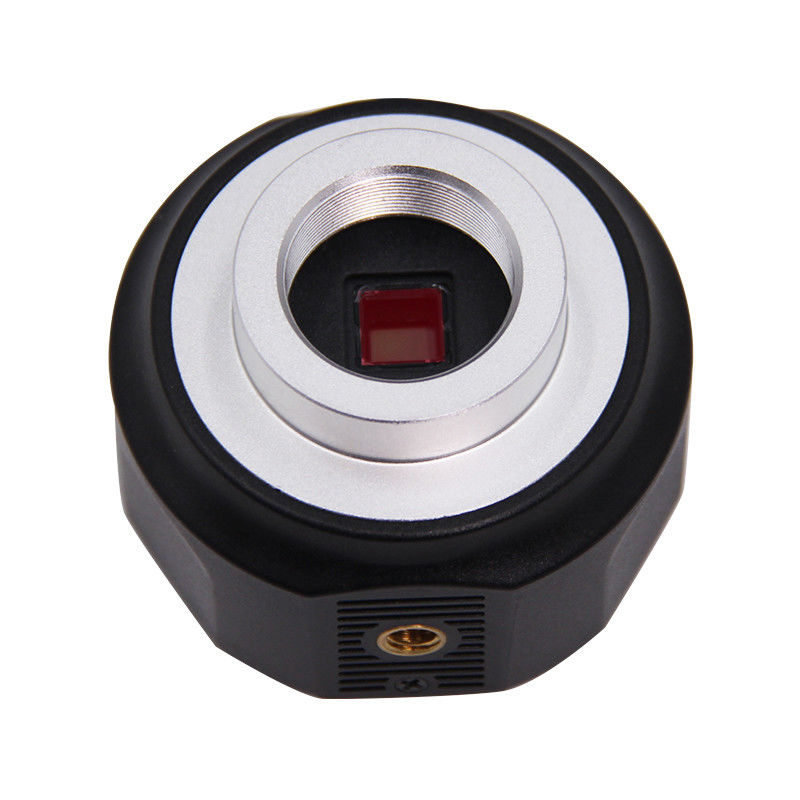

--Designed with commonly used tripod mount 1/4-20A for widely use.
--Reliable electrionic double plates design to resolve over heat problem after long working time.
--5V DC power supply from USB port no need additional power adatper.
--3 Years Quality Warranty!
| A59.4910 Hardware Configuration | |
| Image Sensor | Color |
| Expose | Rolling Shutter |
| Maximum Resolution | 2592x1944(5,038,848 Pixels) |
| Sensor Optical Format | 1/2.5" (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
| Pixel Size | 2.2μm x 2.2μm(BSI) |
| Dynamic Range | 74.3 dB Linear, More Than 96 dB (Interleaved) |
| SNRmax | 40dB |
| Spectral Charatristics | 380-650nm |
| Exposure Capability | 3.9ms-320ms, Automatic And Manual |
| White Balance | Automatic And Manual |
| Preview Modes | 30FPS @2592X1944, 30FPS @1920X1080 30FPS @800X600, 640X480 |
| Record Format | Snapshot Picture Format: JPG, BMP, PNG, TIFF, PDF Resolution: 2592x1944, 1920x1080, 800x600, 640x480 Record Video Format: MJPG Format AVI File Resolution: 1920x1080, 800x600, 640x480 |
| Softwware Environment | |
| Windows System Demand | Microsoft®Windows® XP/7/8/8.1/10 (32&64 Bit) |
| CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz | |
| Memory: 2G Or More | |
| USB Port: USB 2.0 High Speed Port Or Compatible Port | |
| Displayer: Suggest 17 Inches Or Larger | |
| Operating Environment | |
| Operating Temperature | 0℃-40℃ |
| Storage Temperature | -20℃-60℃ |
| Operating Humidity | 30-80%RH |
| Storage Humidity | 10-60%RH |
| Power Supply | Direcct-Current 5V, Supply By USB Port |
A59.4910 Microscope Camera can be connected to any biological microscopes, stereo microscopes, metallographic microscopes, etc. It has advantages of high frame rate, very nice color performance, clear image, convenient storage, widely used in industrial inspection, teaching research, clinical test, material analysis, machine vision, etc.
Packing : Compact Design Box and Strong Master Carton
Shipping Time : 1-5 Days From Stock
G.W: A59.4910 0.24Kgs/Unit, 11.5Kgs/Carton
A59.4910-M05 0.33Kgs/Unit, 16.0Kgs/Carton
