Beginner Level 1000x LED Compound Trinocular Microscope

Beginner Level 1000x LED Compound Trinocular Microscope

  • High Light

    LED Compound Trinocular Microscope

    ,

    1000x Compound Trinocular Microscope

    ,

    1000x trinocular compound microscope

  • Theory
    Stereo Microscope
  • Magnification
    40X-1000X
  • Objective
    Achromatic 4x,10x,40x(S),100x(O,S)
  • Working Stage
    Double Layer Mechanical Stage
  • Focusing
    Coaxial Coarse & Fine Focusing
  • Light Source
    LED Lamp
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1303
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Beginner Level 1000x LED Compound Trinocular Microscope



Beginner Level 1000x LED China Compound Biological Optical Laboratory Trinocular Microscope


40X-1000X Stereo Microscope A12.1303 With LED Lamp And Abbe N.A.1.25 Condenser

Introduction
A12.1303 is a type of professional biological microscope for laboratory or hospital, so its cost is a little higher than student microscope. Five models can be choosing according to your needs. Whats more, A12.1303 can be customized with wooden color protection board and focusing knob if you like. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. CCD adapter 1.0x is optional.
 Beginner Level 1000x LED Compound Trinocular Microscope 0

Beginner Level 1000x LED Compound Trinocular Microscope 1

Beginner Level 1000x LED Compound Trinocular Microscope 2

Beginner Level 1000x LED Compound Trinocular Microscope 3

A12.1303 Biological Microscope M V S B T

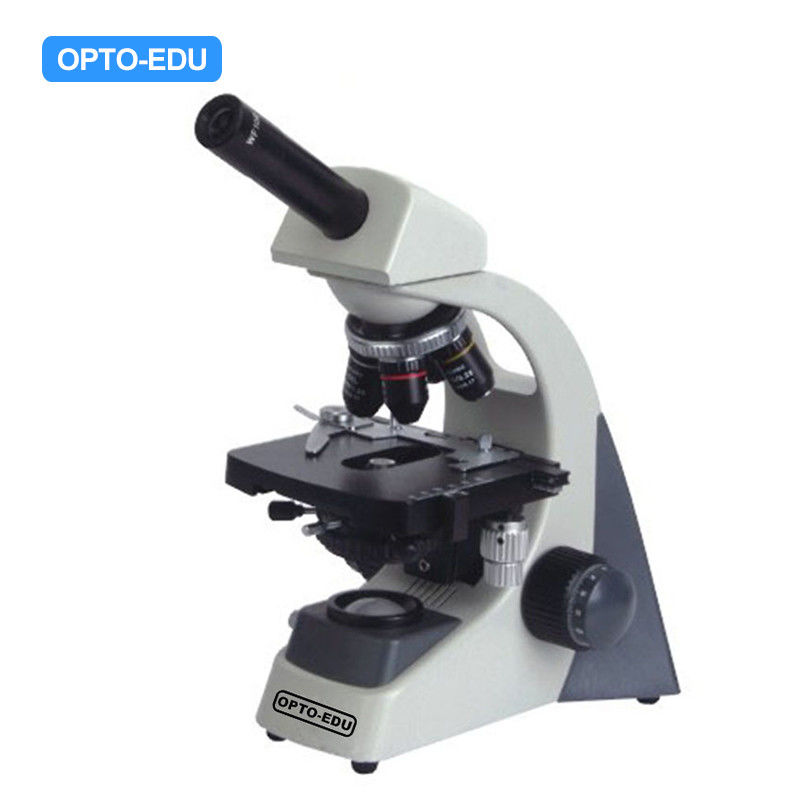

Head Monocular Head, 30° Inclined o

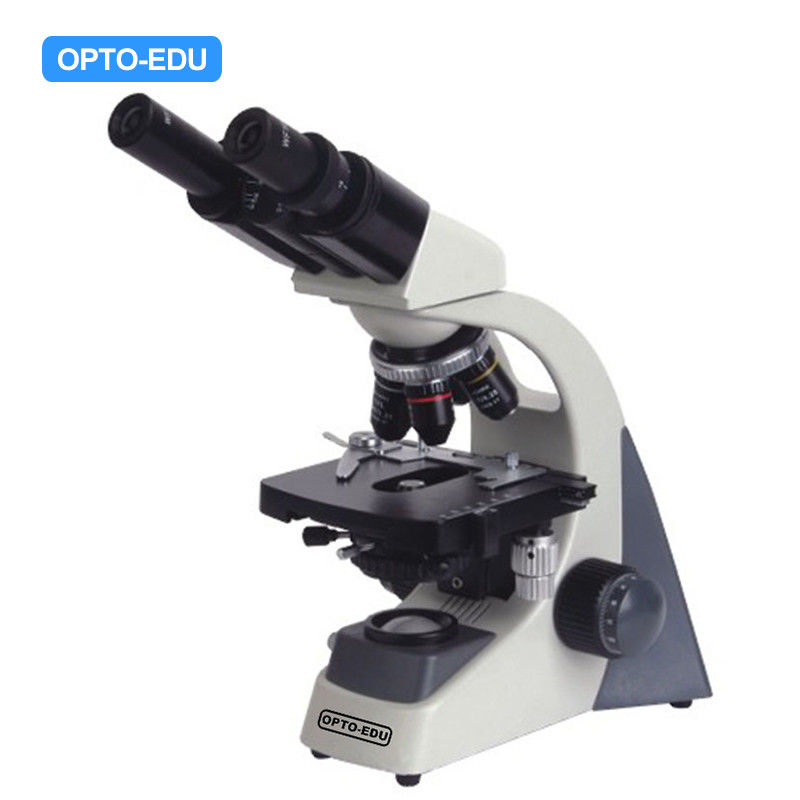

Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm       o

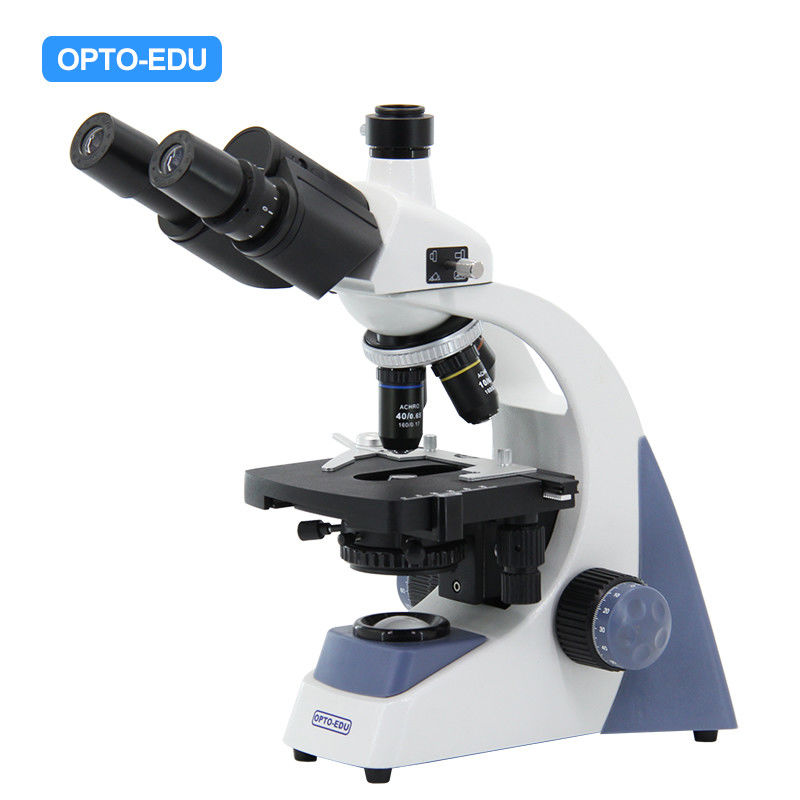

Seidentopf Trinocular Head, 30° Inclined, Interpupillary Distance 50~75mm, With Digital Eyepiece Adapter, Height Adjustable         o

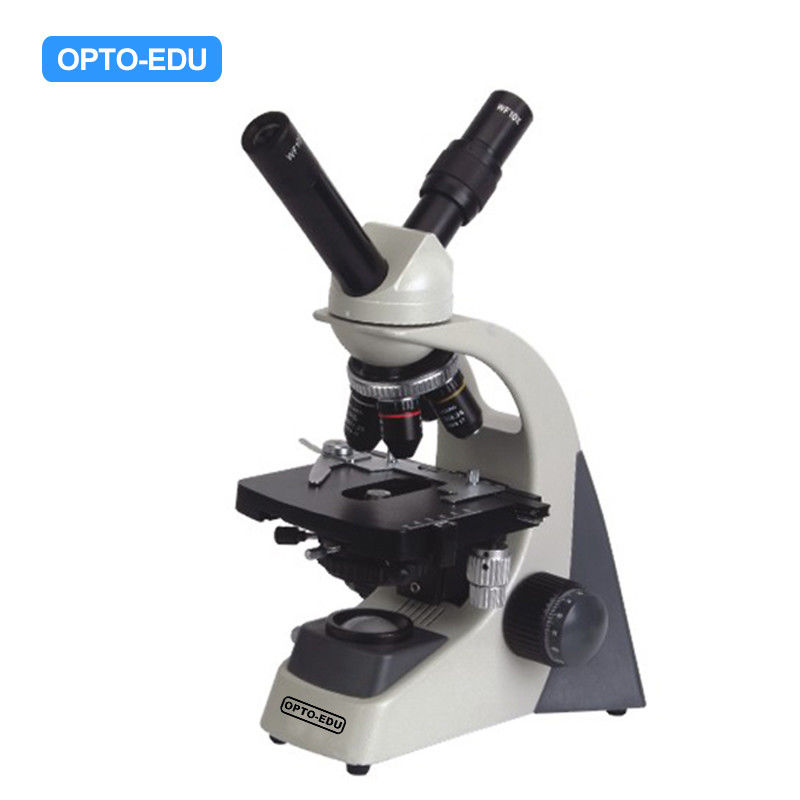

Dual Observation Head, 30° Inclined / Vertical   o
Dual Observation Head, 45° Inclined     o
Eyepiece WF10x
Nosepiece Backward, Quadruple Nosepiece
Objective 45mm DIN Achromatic 4x,10x,40x(S),100x(O,S)
Working Stage Double Layer Mechanical Stage, Size 125*125mm, Moving Range X-Y 50*40mm
Condenser Abbe N.A.1.25, With Dia.2-Dia.30mm Iris Diaphragm,
Focusing Low Position Designed, Coaxial Coarse & Fine Focusing, Coarse Focusing Range 25mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Upper Safety Stop
Light Source LED Lamp
G.W. 10KG
Package 2 Sets/Carton
