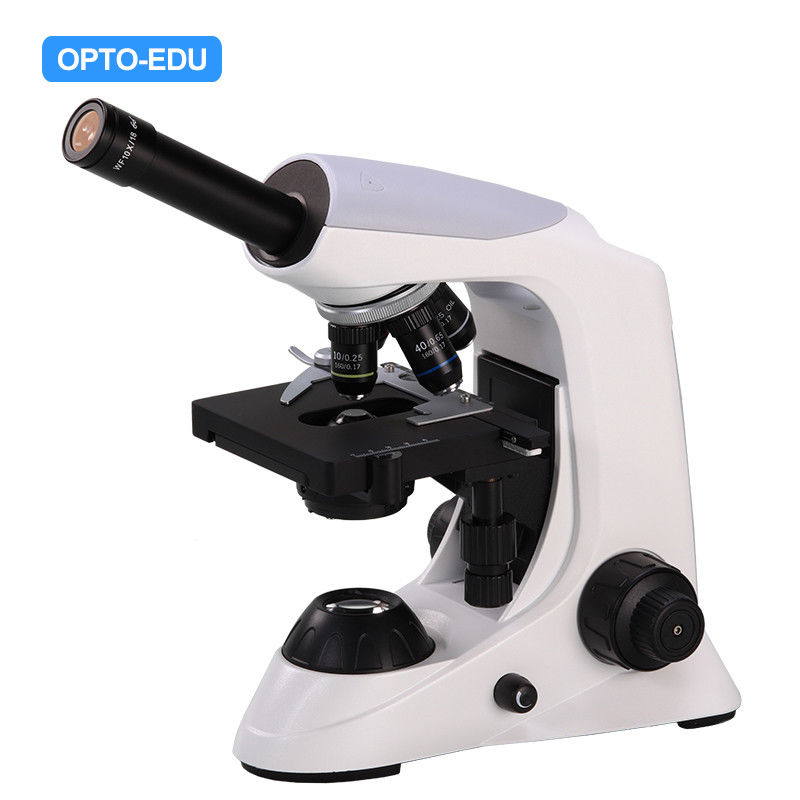

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

  • High Light

    opto edu

    ,

    1000x School Microscope

    ,

    Achromatic School Microscope

  • Head
    Monocular Head, Inclined 30°
  • Applications
    Student|school
  • Certification
    CE|Rohs
  • Drawtube
    Monocular
  • Condenser
    Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder
  • Max Magnification
    1000X
  • Product Name
    Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.6603-M
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope


Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 0

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 1
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 2

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 3

Unique Head And Frame Integrated Body & Integrated Design Of The Eyepiece Lens Barrel
Butterfly Type (Butterfly) Binocular Design, The Lens Barrel Can Be Rotated 360°, The Height Of The Eye Point Is 44mm,

Which Is Convenient For People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And

Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 4

Exclusive And Innovative Low-power Dimming Objective
No Need To Adjust The Brightness Between High And Low Power Objectives

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 5

Mechanical Stage
Mechanical Stage Size 125×115mm, Travel Range 33×71mm

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 6

Condenser & Light Source
Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder
3W LED Illumination With Aspheric Collector

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 7
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 8

Newly Designed Rear Storage Space & Observation Window At The Rear Of The Body
For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 9

Newly Designed Rear Storage Space & Observation Window At The Rear Of The Body
For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 10

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 11

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope 12

Items A11.6603 Student Biological Microscope Specification M B T B1 T1 Cata. No.
Head Monocular Head, Inclined 30°         A53.2603-M

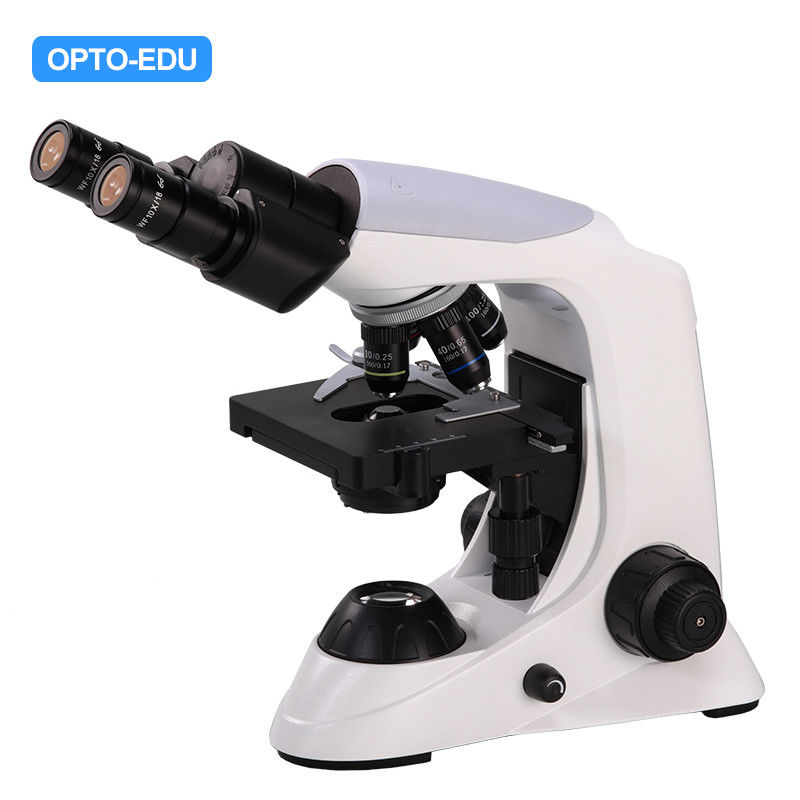

Seidentopf Binocular Head, Inclined 30°, Swiveling Siedentopf Head, Interpupilary Distance: 48-75mm       A53.2603-B

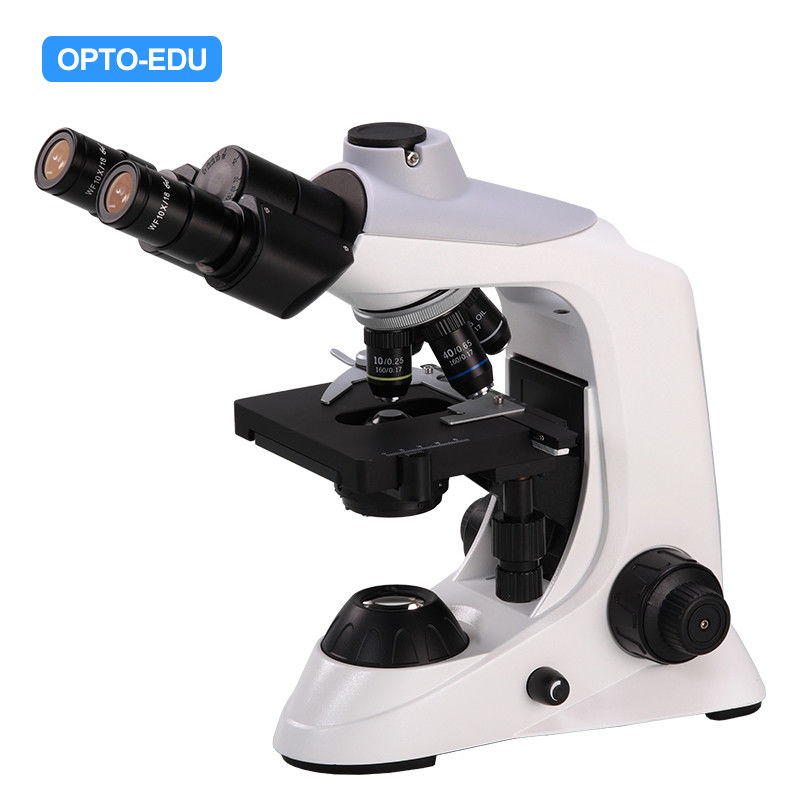

Seidentopf Trinocular Head, Swiveling Siedentopf Head, Interpupilary Distance: 48-75mm, Light Split Fixed P20:E80       A53.2603-T
Eyepiece WF10x/18mm ●● ●● ●● ●● ●● A51.2602-1018
WF16x/13mm ○○ ○○ ○○ ○○ ○○ A51.2602-1613
WF10x/18mm With Pointer ○○ ○○ ○○ ○○ ○○ A51.2604-1018
WF10x/18mm (Non-adjustable, Reticule 0.1mm) ○○ ○○ ○○ ○○ ○○ A51.2605-1018
WF10x/18mm (Adjustable, Reticule 0.1mm) ○○ ○○ ○○ ○○ ○○ A51.2605-1018D
Nosepiece Quadruple, Backward A54.2610-N03
Achromatic Objective 4x/0.1, W.D.=18.6mm     A52.2601-4
10x/0.25, W.D.=6.5mm     A52.2601-10
20x/0.40, W.D.=1.75mm     A52.2601-20
40x/0.6(S), W.D.=0.47mm     A52.2601-40
60x/0.80(S), W.D.=0.10mm     A52.2601-60
100x/1.25(S,O), W.D.=0.07mm     A52.2601-100
Plan
Objective
4x/0.1, W.D.=14.5mm       A52.2603-4
10x/0.25, W.D.=5.65mm       A52.2603-10
40x/0.6(S), W.D.=0.85mm       A52.2603-40
100x/1.25(S,O), W.D.=0.07mm       A52.2603-100
Working Stage Mechanical Stage Size 125×115mm, Travel Range 33×71mm A54.2601-S03
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder A56.2614-09
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 25mm, Fine Focusing Scale 2µm/Division
Adapter 1.0x C-Mount       A55.2601-B10
0.5x C-Mount Focus Adjustable       A55.2601-B05
Dark Field Dark Field Ring, For 4x~40x Objective A5D.2611-B
Light Source 3W LED Illumination With Aspheric Collector, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use A56.2612-3W
Package Carton Size 26x35x46cm, 1 Unit/Ctn
Weight Gross Weight 7.0kgs, Net Weigth 5.5kgs
Note: ""In Table Is Standard Outfits, "" Is Optional Accessories.
