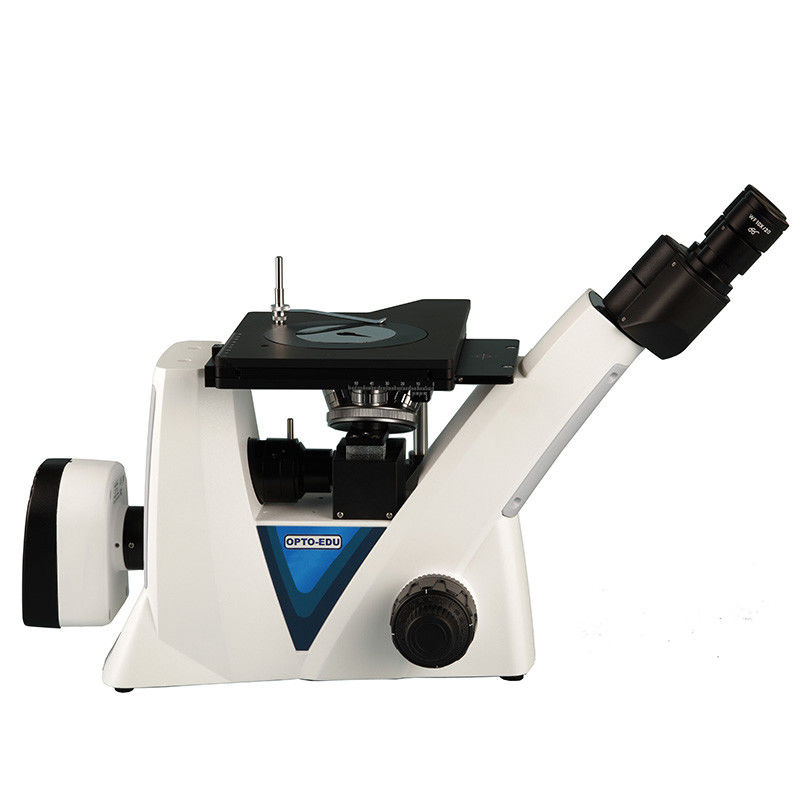

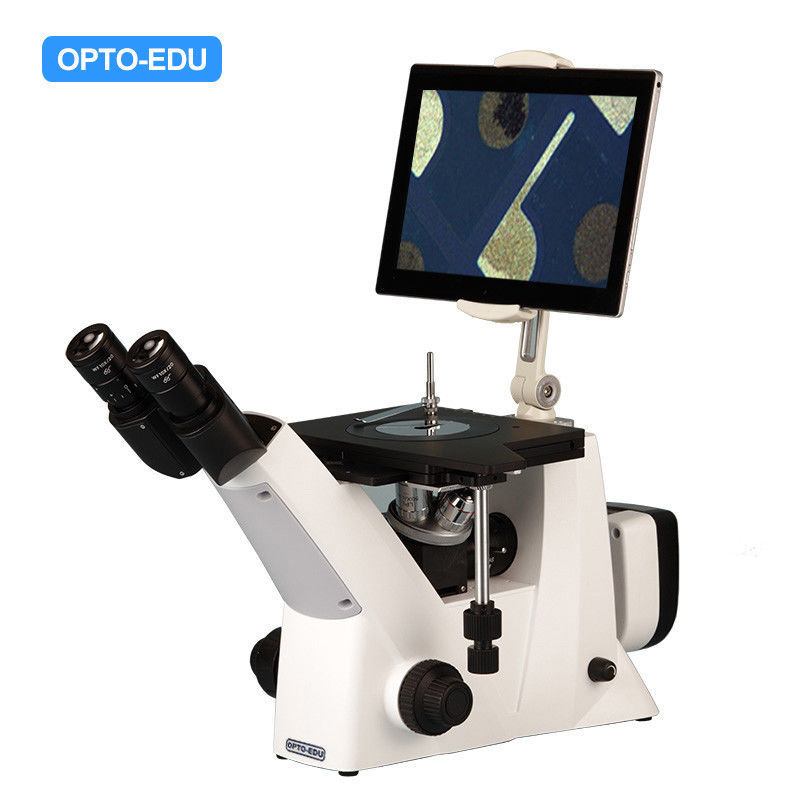

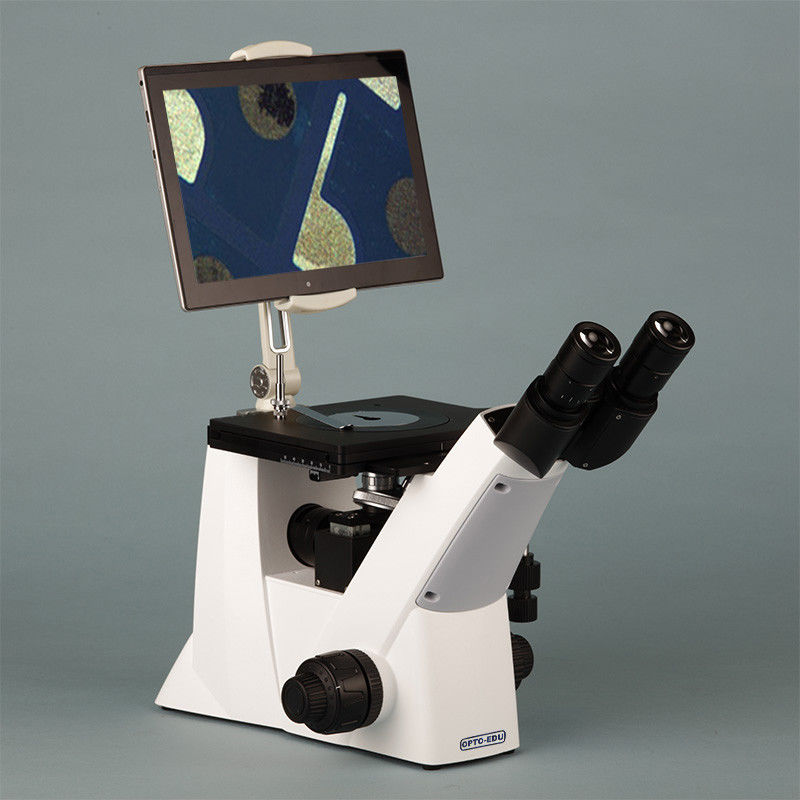

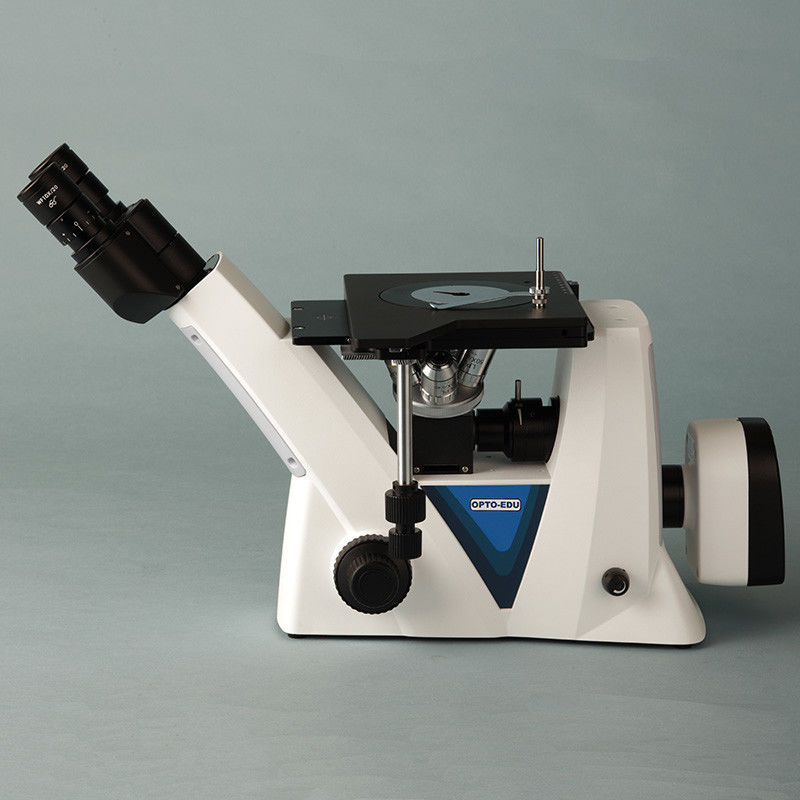

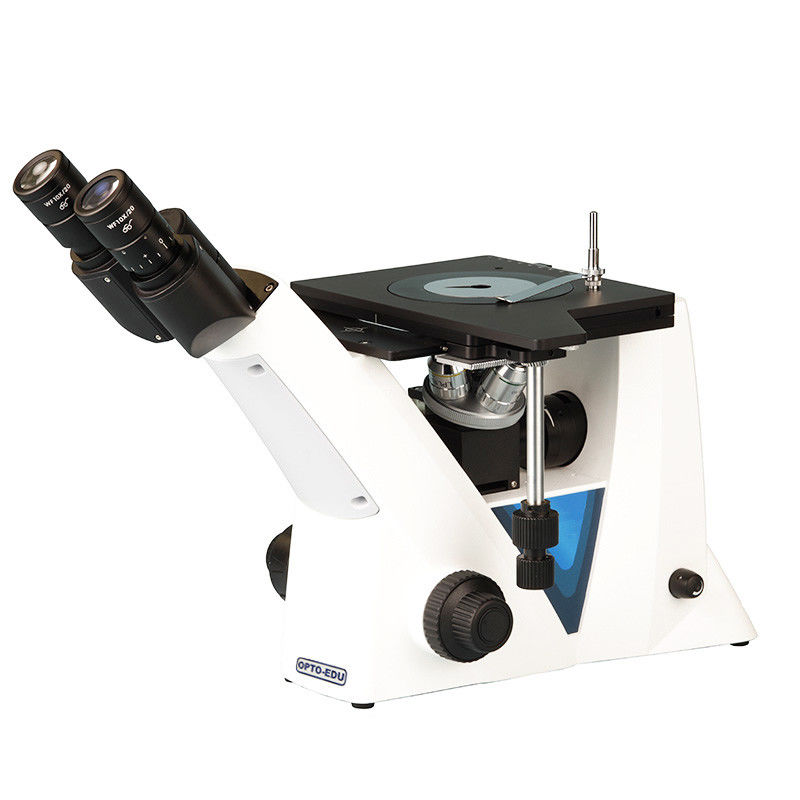

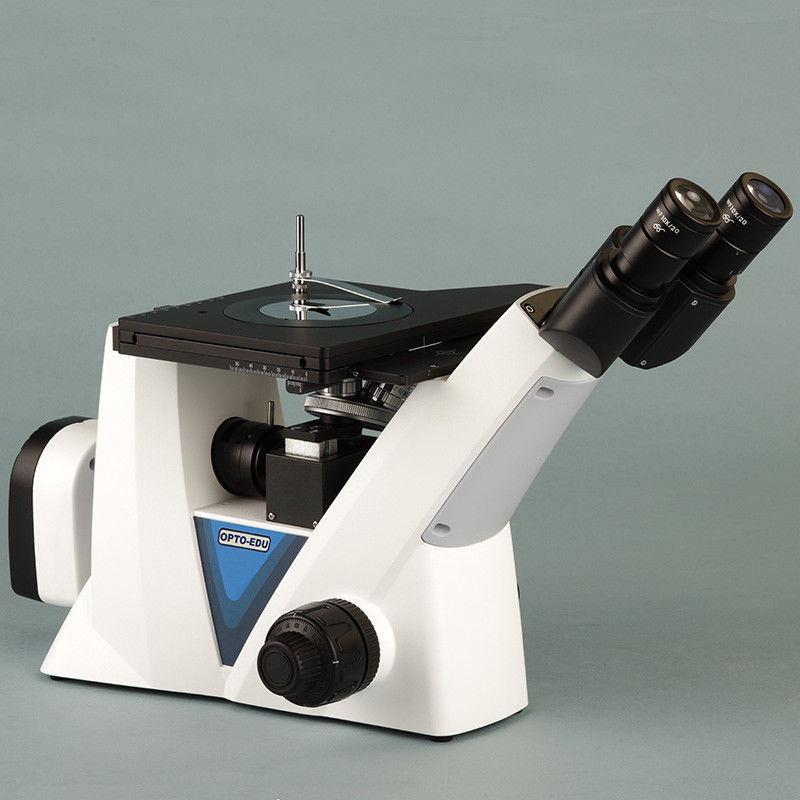

OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope

OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope

Large Image :  OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.2607
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Application: Research|Metallurgical Certification: CE|Rohs
Drawtube: Binocular Illumination: 5WLED Warm Lamp
Magnification: 50x - 500x Theory: Metallurgical Optical Microscope
High Light:

Inverted Metallurgical Optical Microscope

,

OPTO-EDU Metallurgical Optical Microscope

,

A13.2607 Metallurgical Optical Microscope

OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope

OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 0
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 1
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 2
Super Wide Field Eyepiece

Swiveling Siedentopf Rotatable 360°, Inclined 45°, IPD: 48-75mm,
Light distribution: 70:30(70% For Eyepiece, And 30% For Camera Tube), WF10X/20mm

OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 3
Mechanical Stage
Three-layer Working Stage, Stage size: 180×155mm
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 4
Nosepiece & Objectives
Quadruple
LWD Infinity Plan Objectives
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 5

Polarizing
Analyzer & Polarizer & Grey Filter
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 6
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 7
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 8

5W LED Warm Lamp
Powered By Safety Low Voltage Charger

Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 9
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 10
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 11
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 12

Items A13.2607 Inverted Metallurgical Microscope
Head Swiveling Siedentopf, Inclined 45°, IPD: 48-75mm,Light distribution:
70:30(70% For Eyepiece, And 30% For Camera Tube)
Eyepiece WF10X/20mm, High Eyepoint
WF10X/20mm, High Eyepoint, Adjustable Focus, Reticule 0.1mm
LWD Infinity
Plan Objectives
LPL 5×0.13, W.D=16.04mm
LPL 10×0.25, W.D.= 18.48mm
LPL 20×0.40, W.D.= 8.35mm
LPL 50×0.70, W.D.= 1.95mm
LPL 80×0.80, W.D.= 0.85mm
LMPlan FL 100×0.85(Dry), W.D.= 3.00mm
Nosepiece Quadruple
Mechanical Stage Three-layer Working Stage, Stage size: 180×155mm, Moving Range:75×40mm, Scale: 0.1mm, Round Slide Size:φ110mm
Focusing Coaxial Coarse And Fine, Coarse Stroke: 10mm, Fine Stroke PerRrotation: 0.2mm, Fine Division 2 μm.
Polarizing Unit Polarizer, Analyzer
llumination 5W LED Warm Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Filter Grey
C-mount 0.65×C-Mount, Built-in
Holder Universal Holder for HD Screen
HDMI Camera With Measurement Function
HD Screen 10.1” HD LCD
Packing Size: 500mm×425mm×305mm Gross Weight:9.0 kgs Net Weight: 7.0 kgs
Note: ""In Table Is Standard outfits, "" Is Optional Accessories.

OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 13
OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope 14
