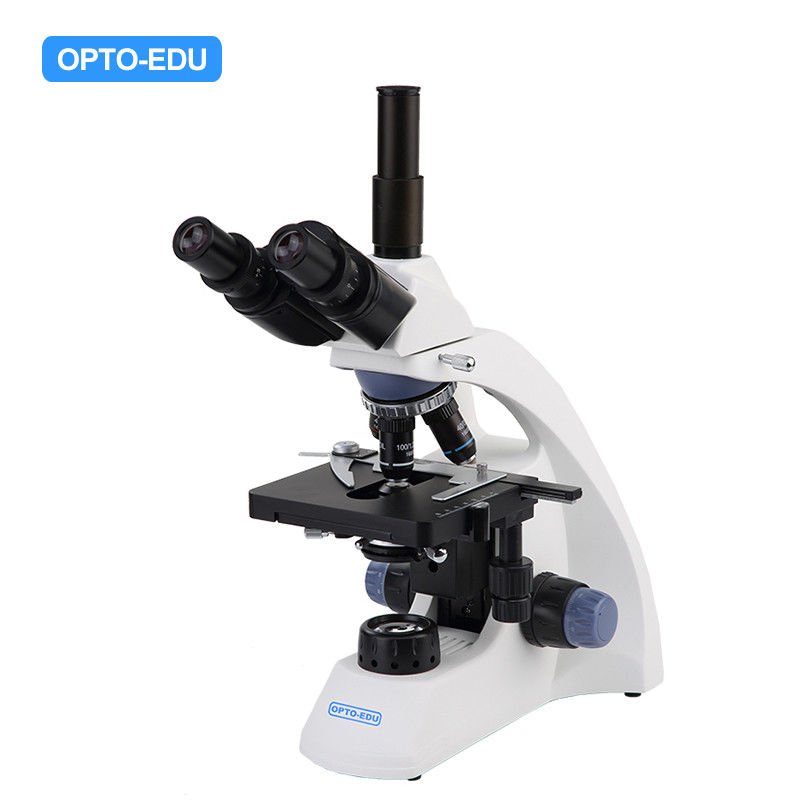

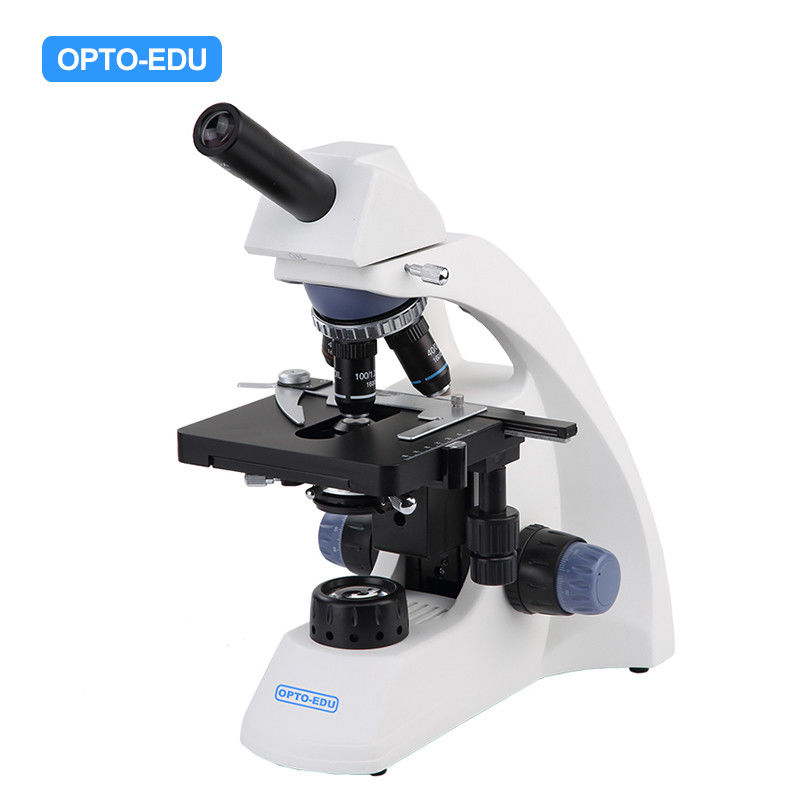

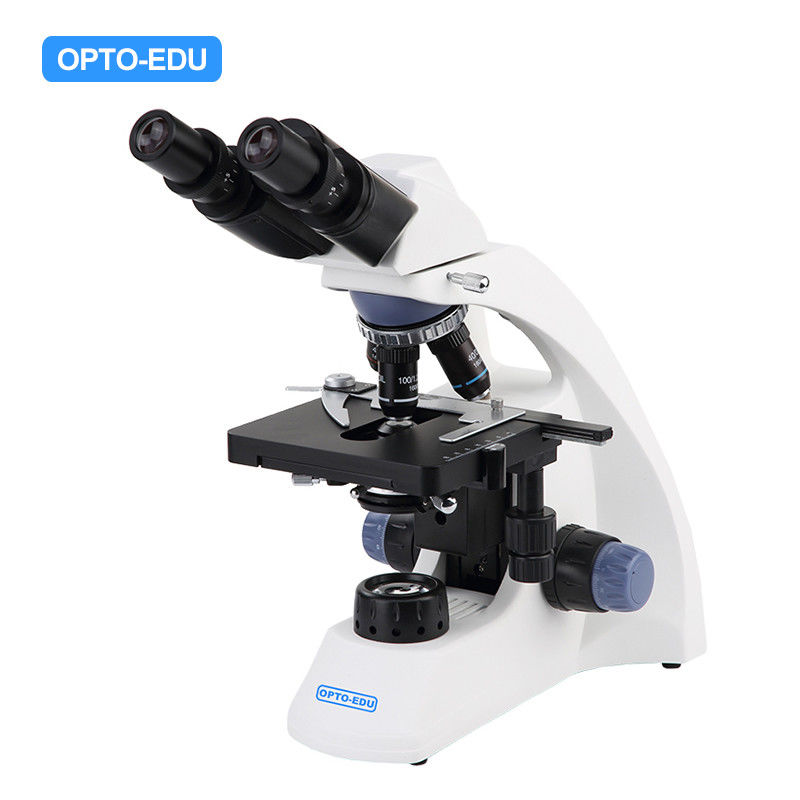

WF10X/18mm Biological Microscope A11.1551 With Abbe Condenser N.A. 1.25 With Diaphragm
Introduction
A11.1551 Is The Best Value Entry Level Biological Microscope, Especially Appreciated When Budget Is limited. All Models Are Equipped With An Integrated X-Y Mechanical Stage Are Supplied With An Abbe N.A. 1.25 Condenser. Optional WF16X, WF20X Eyepiece Enable Utmost 2000X Optical Magnification. The Built-In Rechargeable Batteries Enable Cordless Operation.
Specification
| A11.1551 Biological Microscope | ||
| Model | A11.1551-B | A11.1551-T |
| Optical System | Finity Optical System | |
| Head | Seidentopf Binocular Head, Inclined at 30º, 360º Rotatable | Seidentopf Trinocular Head, Inclined at 30º, 360º Rotatable |
| Eyepiece | Wide Field Eyepiece WF10X/18mm | |
| Objective | Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | |
| Nosepiece | Quadruple Nosepiece | |
| Condenser | Abbe Condenser N.A. 1.25 With Diaphragm, Filter | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 36mm With Tension Adjustment | |
| Stage | Double Layer Mechanical Stage 142X135mm, Moving Range 75X50mm | |
| Illumination | 6V/20W Halogm Lamp,Brightness Adjustable | |
| Adapter | N/A | Eyepiece Tube Adapter |
| A11.1551 Biological Microscope Optional Accessories | ||
| Eyepiece | Wide Field Eyepiece WF16X/13mm | A51.1503 |
| Wide Field Eyepiece WF20X/11mm | A51.1503 | |
| Objective | Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil) | A52.1510 |
| Nosepiece | Quintuple Nosepiece | A54.1502-5A |
| Illumination | 3W LED Brightness Adjustable, Rechargeable, Without Batteries | A56.1503 |
| CCD Adapter | 1.0x | A55.1550-10 |
| 0.5x | A55.1550-05 | |
Application
Biological Microscope Is Widely Used To Observe Biological Slices, Biological Cells, Bacteria And Living Tissue Culture, Fluid Precipitation Observation And Research, While Observing Other Transparent Or Translucent Objects And Powder, Fine Particles And Other Objects.
