LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901

LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901

  • High Light

    OPTO-EDU A14.0901

    ,

    Infinity Trinocular Inverted Optical Microscope

    ,

    LED Inverted Optical Microscope

  • Applications
    Laboratory|Research
  • Certification
    CE|Rohs
  • Drawtube
    Binocular|Trinocular
  • Illumination
    LED
  • Product Name
    Inverted Optical Microscope
  • Theory
    Inverted Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A14.0901
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901



A14.0901 Inverted Microscope A B
Optical System Infinity Color Corrected Optical System
Head Binocular Head
Trinocular Head, Light Split Switch E100:P0/E80:P20
Gemel Viewing Head, 45 Degree Inclined, Interpupillary Distance 54-75mm, One eyepiece tube with ±5 Diopter Adjustment,
Eyepiece PL10x/22mm, High Eyepoint, Wide Field
PL15x/16mm, High Eyepoint, Wide Field
Nosepiece Reversed Revolving Quintuple Nosepiece
Objective Long Working Distance Infinity Plan Achromatic Objectives LWDPL 4x/0.10, W.D.=22mm
LWDPL 10x/0.25, W.D.=7.94mm
LWDPL 20x/0.40, W.D.=7.66mm
LWDPL 40x/0.60, W.D.=3.72mm
LWD Infinity Plan Phase Contrast Objectives LWDPL 10x/0.25, W.D.=7.94mm
LWDPL 20x/0.40, W.D.=7.66mm
LWDPL 40x/0.60, W.D.=3.71mm
Stage Fixed Stage Size 250*160mm, Slider Clips
Glass Plate
Metal Plate
Petri Dish Holder, Dia.35mm
Movable Ruler, Travel Range 120x78mm
Extension Plate
Focusing Coaxial Coarse & Fine Focusing System, Working Distance Of Every Circle: 38mm/Coarse Focus, 0.2mm/ Fine Focus, Minimal Read 0.002mm/,With Tension Adjustment, With Safty Stop

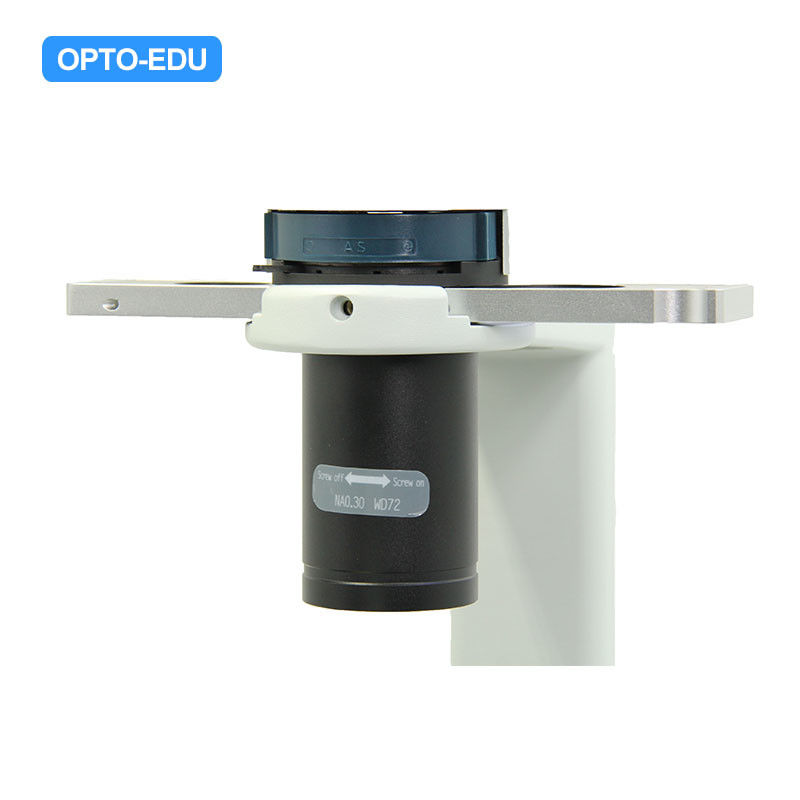

Condenser N.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down
N.A.0.5 condenser for option, dismountable
Phase Contrast Phase Contrast Plug-board for 10x-40x, Center Adjustable
Centering Telescope Dia. 30mm
Filter Dia.45mm Green Interference Filter
Dia.45mm Color Temperature Change Filter
Dia.45mm Infrared Eliminate Filter
Dia.45mm Rubidium Glass Filter
Light Critical Illumination, With Iris Aperture, Halogen 6V30W, Pre-centered, Intensity Adjustable
Photo Adapter Photo Tube(with PK adaptor), 3.2x Lens
Video Adapter 0.5x/0.67x C Mount Adaptor
Power Wide Voltage 90-240V



Series Magnification N.A. W.D. F.N. Cover Glass Thickness Immersion Spring
Lplan Series(PH) Lplan4x 0.1 22 22 1.2 / /
Lplan10x 0.25 7.94 22 1.2 / /
Lplan PH10x 0.25 7.94 22 1.2 / /
Lplan20x 0.4 7.66 22 1.2 / /
Lplan PH20x 0.4 7.66 22 1.2 / /
Lplan40x 0.6 3.71 22 1.2 / /
Lplan PH40x 0.6 3.71 22 1.2 / /

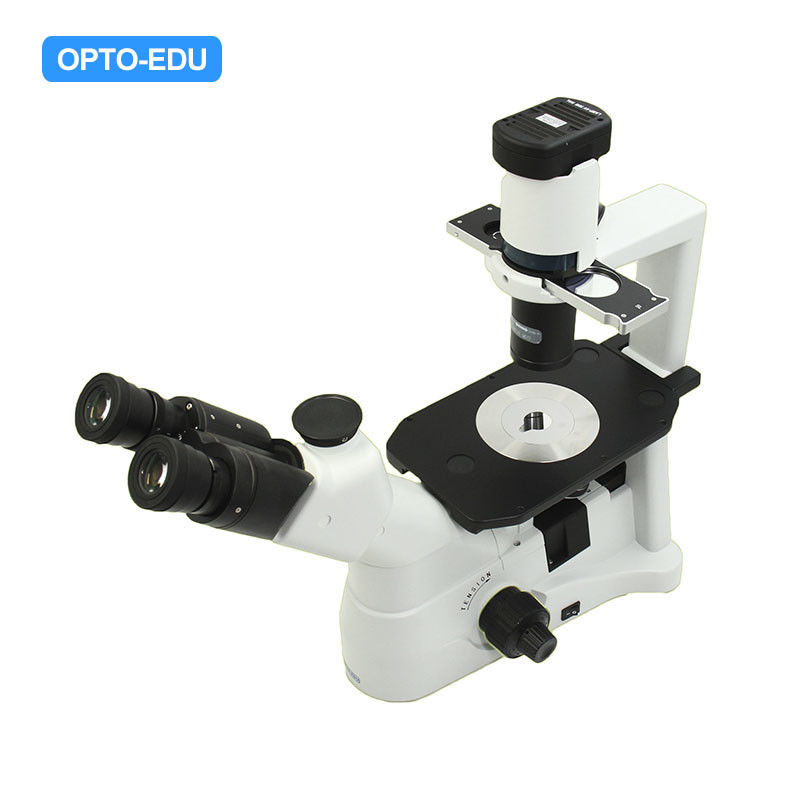

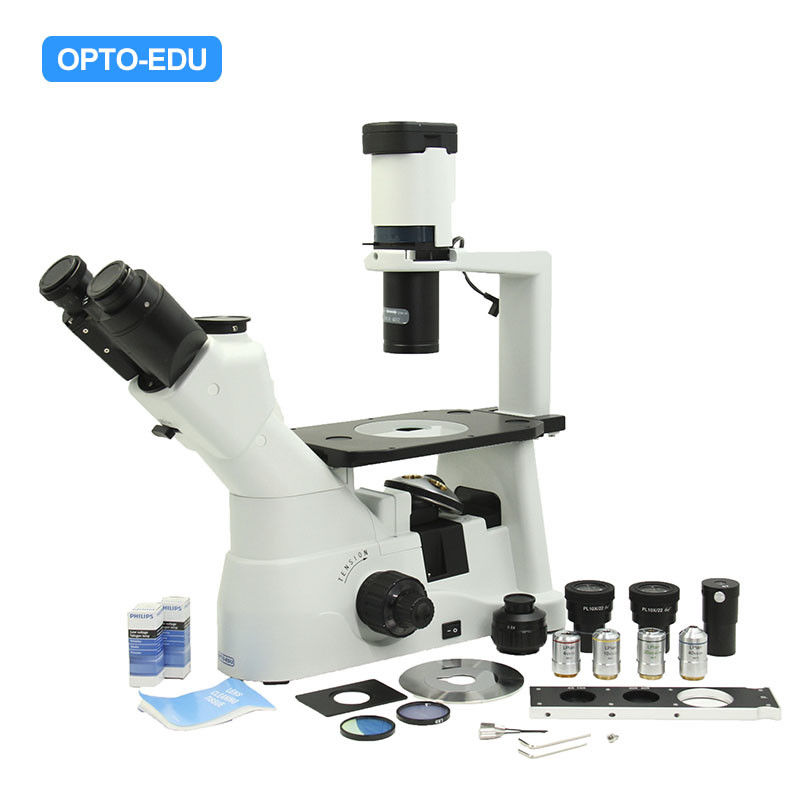

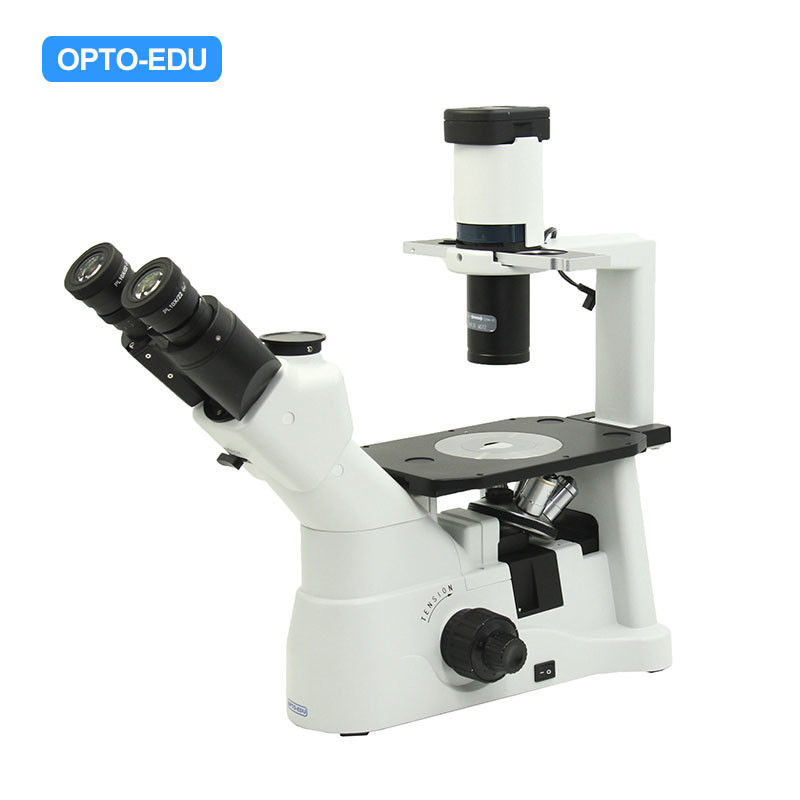

LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901 0LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901 1LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901 2

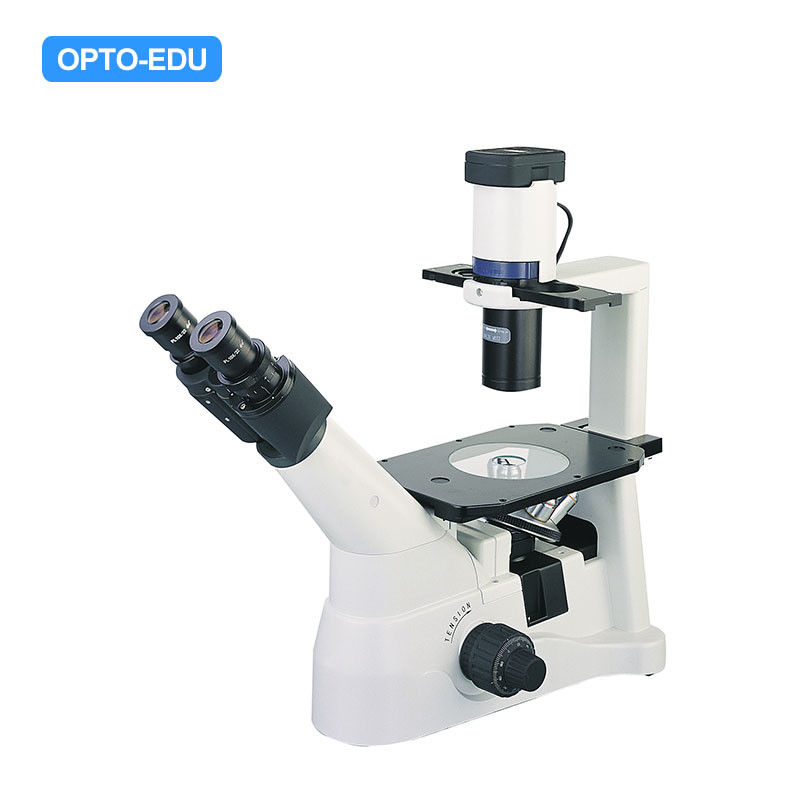

LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901 3
