Opto-Edu (Beijing) Co., Ltd. 0086-13911110627 sale@optoedu.com

LED Fluorescent Light Microscopy 6V 30W Halogen A16.2603-NL Koehler Illumination

High Light

epi-fluorescence microscope
,
inverted fluorescence microscope
Application

Research|Learning
Certification

CE|Rohs
Drawtube

Trinocular
Illumination

Transmit Light 6V30W Halogen
Magnification

40x - 1000x
Theory

Fluorescence Microscope
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A16.2603-NL
Minimum Order Quantity

1 pc
Price

Negotiation
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

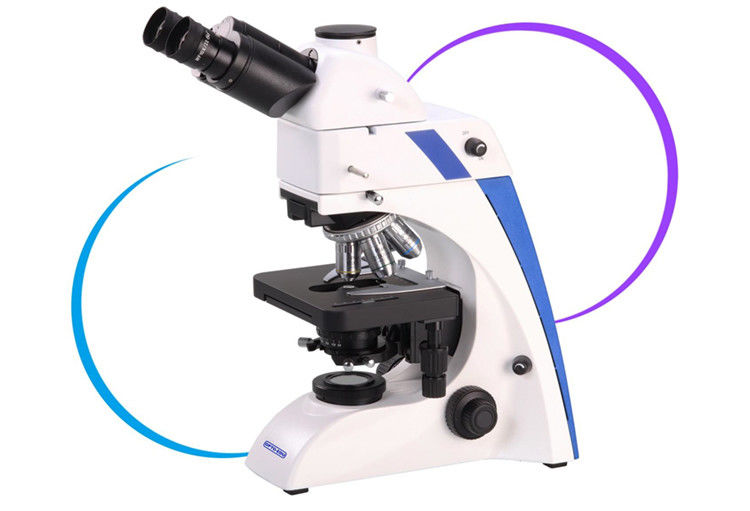

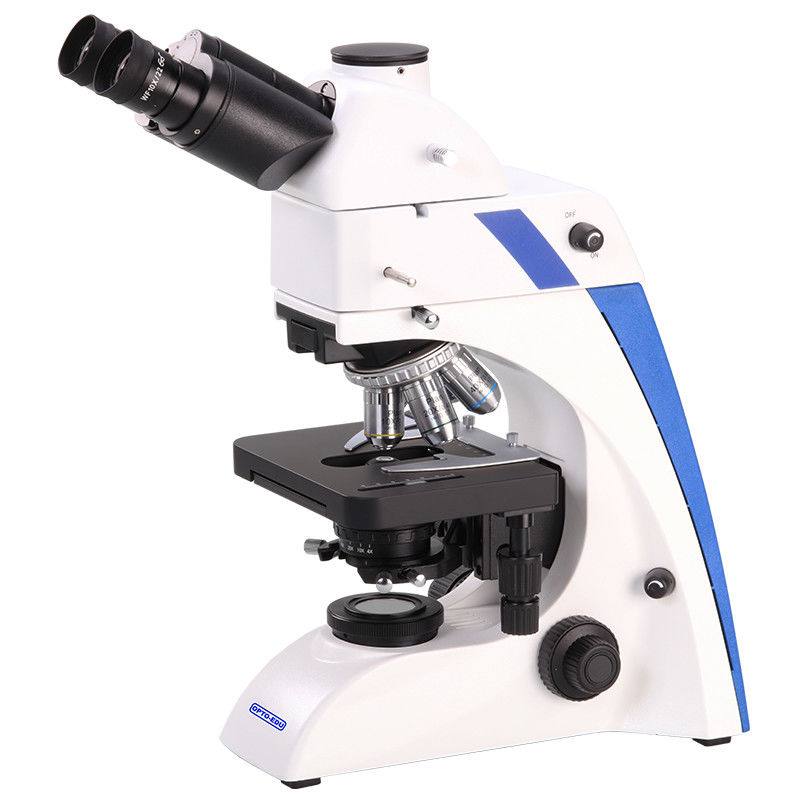

LED Fluorescent Light Microscopy 6V 30W Halogen A16.2603-NL Koehler Illumination

Name: LED Fluorescent Light Microscopy 6V 30W Halogen A16.2603-NL Koehler Illumination
Brand: CNOEC, OPTO-EDU
SKU: A16.2603-NL
Price: 1.00 USD
Availability: InStock
Rating: 5 (199 reviews)

button button

Get Price Contact Now

Super Wide Field Eyepiece
SWF10x/22mm
Eyepiece Dia.30mm Diopter Adjustable

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot,
Infinity Plan Objective 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

Rackless (Integrated) Mechanical Stage
Large Size 182×140mm, Double Slide Holder
Travel Range 77×52mm

Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
Control The Amount Of Light According To Demand, The Effect Is More Perfect.

Fluorescence Unit
Upgrade From A12.2601-C/CT Biological Microscope With:
5W LED Fluorescent Built-in Media Device,
Single Band, China Filter B or G
Ultraviolet Protection Barrier

Items	A16.2603-NL LED Fluorescent Microscope Specification	-1	-2	Cata. No.
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	●	●	A53.2623-T
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●●	●●	A51.2621-1022
Nosepiece	Quintuple	●	●	A54.2610-N01
Infinity Plan Objective	PLAN 2.5X/0.07,W.D.=8.47mm	○	○	A52.2606-2.5
	PLAN 4X/0.10,W.D.=12.10mm	●	●	A52.2606-4
	PLAN 10X/0.25,,W.D.=4.64mm	●	●	A52.2606-10
	PLAN 20X/0.40(S),W.D.=2.41mm	●	●	A52.2606-20
	PLAN 40X/0.66(S),W.D.=0.65mm	●	●	A52.2606-40
	PLAN 60X/0.80(S),W.D.=0.33mm	○	○	A52.2606-60
	PLAN 100X/1.25(S,Oil),W.D.=0.12mm	●	●	A52.2606-100
	PLAN 100X/1.15(S,Water),W.D.=0.19mm	○	○	A52.2606-100W
Infinity Plan Semi-APO Fluorescent Objective	UplanFLN 4x, N.A.0.16,W.D.=17.151mm	○	○	A5F.2611-4
	UplanFLN 10x, N.A.0.30,W.D.=7.68mm	○	○	A5F.2611-10
	UplanFLN 20x, N.A.0.50,W.D.=1.96mm	○	○	A5F.2611-20
	UplanFLN 40x, N.A.0.75,W.D.=0.78mm	○	○	A5F.2611-40
	UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm	○	○	A5F.2611-100
Working Stage	Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	A54.2601-S10
Working Stage	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	A54.2601-S01
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●
Condenser	Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm	●	●	A56.2614-07a
Illumination	Transmit Light 6V30W Halogen Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm	●	●	A56.2650-30W
Field Diaphragm	For Kohler Illumnation	●	●	A56.2615-BK
Filter	Dia.45mm, Blue	●	●	A56.2616-45B
	Dia.45mm, Green	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	A56.2616-45A
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	A5D.2610-BK
Dark Field	Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective			A5D.2610-BKW
Polarizing	Analyzer + Polarizer Set	○	○	A5P.2601-BK
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-100
	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	○	○	A5C.2603-BK
Fluorescence	Upgrade From A12.2603-B/T Biological Microscope With 5W LED Fluorescent Built-in Media Device, Single Band, China Filter B or G Ultraviolet Protection Barrier	●		A5F.2605-1
Fluorescence	Upgrade From A12.2603-B/T Biological Microscope With 5W LED Fluorescent Built-in Media Device, Double Band, China Filter B + G Ultraviolet Protection Barrier		●	A5F.2605-2
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610
Package	Carton Size 990×340×440mm, 1 pc / Ctn
Weight	Gross Weight: 23 kgs, Net Weight: 18 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
