Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm

China Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm supplier
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm supplier Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm supplier Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm supplier

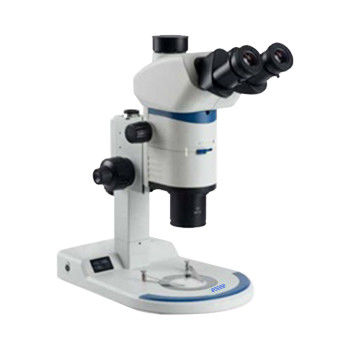

Large Image :  Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A23.2910

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Applications: Industry Certification: CE|Rohs
Eyepieces: High Eye-point Wide Field Plan Eyepiece Illumination: LED
Product Name: Stereo Zoom Microscope Camera Adapter: 0.5X/0.65X/1X C-mount Adapter, Focus Adjustable


A23.0910 0.8x~10x Zoom Stereo Microscope With High Eye-point Wide Field Plan Eyepiece PL10X/23mm


Specifications:

A23.0910 Zoom Stereo Microscope,Zoom Ratio 1:12.5, Parallel LightA23.0910-B1A23.0910-B2A23.0910-B10Cata. No.
Head5°~45° Tilting Trinocular Head, Light Splitting Switch E100:P0/E0:P100,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock

30° Inclined Trinocular Head, Light Splitting Fixed E50:P50,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock

EyepiecePL10x/23mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-10
PL15x/16mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-15
PL20x/12.5mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-20
LensZoom Lens 0.63x~8x, Zoom Ratio 1:12.5,
Built-in Aperture Diaphragm Adjustable,
Main Scales On Zoom Knob 0.63x, 0.8x, 1.0x, 1.25x, 1.6x, 2.0x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x, Switch Between With/Without Click Stop

Auxiliary Objective0.5x Main Objective APO, Working Distance 70.5mmA52.0930-05
1.0x Main Objective APO, Working Distance 78.0mmA52.0930-10
1.5x Main Objective APO, Working Distance 31.1mmA52.0930-15
2.0x Main Objective APO, Working Distance 20.0mmA52.0930-20
NosepieceDouble Nosepiece
FrameCoaxial Fine & Coarse Focusing Mechanism, Intgrated Focus Holder And Stand, Focusing Range 50mm, Fine Focusing Precision 0.002mm
Base & Bottom Light Source(B1) Plan Base
Without Illumination, With Black/White Plate Dia.100mm
--
(B2) Plan Base
With Bottom Illumination Built-in Mirror 360° Rotatable + Position Adjustable
Use With Oblique Illumination 5W LED
--
Forearm Holder (Matching Use With B2 Base)--A54.0965
(B10) Ultra-thin Base,
With Bottom Illumination 5W LED, Color Temperature 3200~5600K & Light Intensity Adjustable With Digital Readout LCD Screen
--
Uppler
Light Source
Upper Illumination:
Attachable LED Ring Light (200 Bulbs), Wide Voltage 100-220V

Oblique Illumination:
External 5W LED Module, Color Temperature 5000-5500K White Light, Wide Voltage 100-220V, Output 12V5W, Power Supply Box Size 270×100×130mm, With Single Optical Fiber 500mm (Matching Use With B2 Base)
--
Coaxial Illumination:
1.5x, With 1/4 λ, 360º Rotatable, 20W LED, Intensity Adjustable, With Power Supply Box, With Soft Double Optical Fiber 1000mm
---
PolarizingPolarizer Fixed On Bottom Light Source (For Transmit Light)-A5P.0925-P
Analyzer Attached Under Lens, 360° Rotatable (For Transmit Light)-A5P.0925-A
Adapter0.35x C-mount Adapter, Focus AdjustableA55.0930-35
0.5x C-mount Adapter, Focus AdjustableA55.0930-05
0.65x C-mount Adapter, Focus AdjustableA55.0930-65
1.0x C-mount Adapter, Focus AdjustableA55.0930-10
Allen keyM4 allen key (3mm)
PackageSponge And Carton, One Set/Carton, Carton Size 58.5x55x81cm
● Means Standard Outfit ○ Means Optional Parts - Mean Not Match
