A18.1822 5 Step Zoom Lens Forensic Comparison Microscope Motorized 3.2x - 320x Magnification

A18.1822 5 Step Zoom Lens Forensic Comparison Microscope Motorized 3.2x - 320x Magnification

  • High Light

    bullet comparison microscope

    ,

    binocular optical microscope

  • Total Magnification
    3.2x-320x
  • Eyepiece
    WF10X/22mm, WF16X/13mm, WF20X/12mm
  • Zoom
    Dual Bridge Zoom 1x/1.6x
  • View Field
    Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
  • Head
    Binocular 45° Inclinded, 48-75mm
  • Auxiliary Lens
    0.4x.2.0x
  • Bridge
    Motorized Joint Up/Down Range 0-150mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1822
  • Minimum Order Quantity
    1 pc
  • Price
    Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A18.1822 5 Step Zoom Lens Forensic Comparison Microscope Motorized 3.2x - 320x Magnification

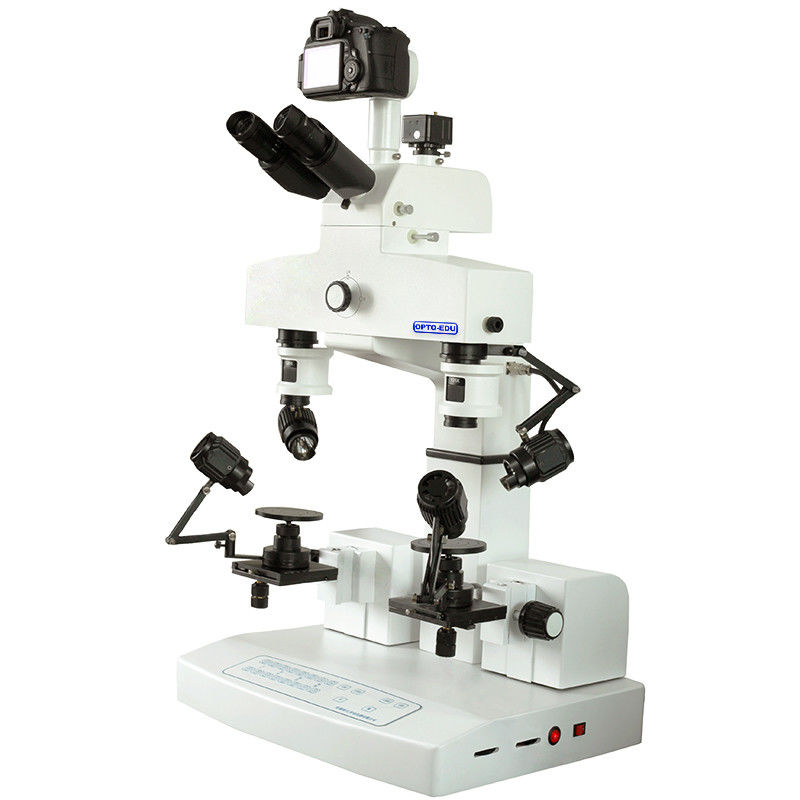

OPTO-EDU A18.1822 5 Step Zoom Lens motorized comparison microscope



A18.1822 Motorized Comparsion Microscope
Total Magnification 3.2x-320x
Head Binocular 45° Inclinded, 48-75mm
Eyepiece WF10X/22mm, WF16X/13mm, WF20X/12mm
Zoom Dual Bridge Zoom 1x/1.6x
Objective When The Bridge Zoom Is 1x, 5 Step Zoom Lens 0.8x,1.25x,2x,3.2x,4.8x
When The Bridge Zoom Is 1.6x, 5 Step Zoom Lens 1.28x,2x,3.2x,5x,8x
Auxiliary Lens 0.4x.2.0x
View Field Full Left, Full Right, Split Image, Overlapping Image
Working Stage Manual Adjustment Range: X-55mm, Y-55mm, Z-55mm, Round Stage Size:Φ90mm
Motorized Adjustment Range: X-50mm, Y-50mm, Z-50mm
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Working Distance 102mm
Bridge Motorized Joint Up/Down Range 0-150mm
Light Source Dual Light 5W LED
Coaxial Light
Polarizing Light
UV Filter And Red/Yellow/Blue/Green Filter
Camera 3.0M Digital Camera, Photo Adapter For Cannon SLR
Adapter 0.5x C-Mount
Function Panel Touch Type, User-Friendly Design, Easy To Operate And Accurate
Power Power Supply 80-240V
