Binocular 45° Inclinded Head Portable Digital Microscope 3.36x - 216x Total Magnification

Binocular 45° Inclinded Head Portable Digital Microscope 3.36x - 216x Total Magnification

  • High Light

    bullet comparison microscope

    ,

    binocular optical microscope

  • Total Magnification
    3.36x-216x
  • Head
    Binocular 45° Inclinded, 48-75mm
  • Eyepiece
    WF10X/22mm, WF20X/12mm
  • Zoom Lens
    0.7-4.5x
  • Bridge Magnification
    1.2x
  • Auxiliary Lens
    0.4x, 2.0x
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1826
  • Minimum Order Quantity
    1 pc
  • Price
    Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Binocular 45° Inclinded Head Portable Digital Microscope 3.36x - 216x Total Magnification

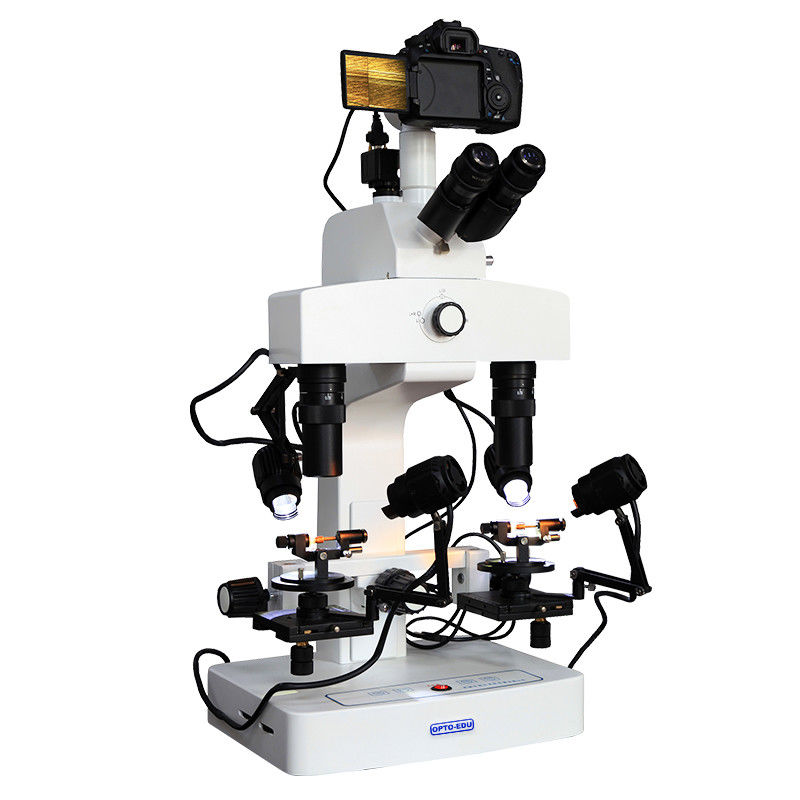

OPTO-EDU A18.1826 3.36~216x Binocular 45° Inclinded Forensic bullet Comparison Microscope





A18.1826 Comparsion Microscope
Total Magnification 3.36x-216x
Head Binocular 45° Inclinded, 48-75mm
Eyepiece WF10X/22mm, WF20X/12mm
Zoom Lens 0.7-4.5x
Bridge Magnification 1.2x
Auxiliary Lens 0.4x, 2.0x
View Field Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Working Stage Moving Range: X-54mm, Y-54mm, Z-54mm, 0°-45° Inclination Adjustable
Joint Left/Right Moving Range 62mm, Joint Up/Down Range 62mm
Round Stage, 360° Rotating

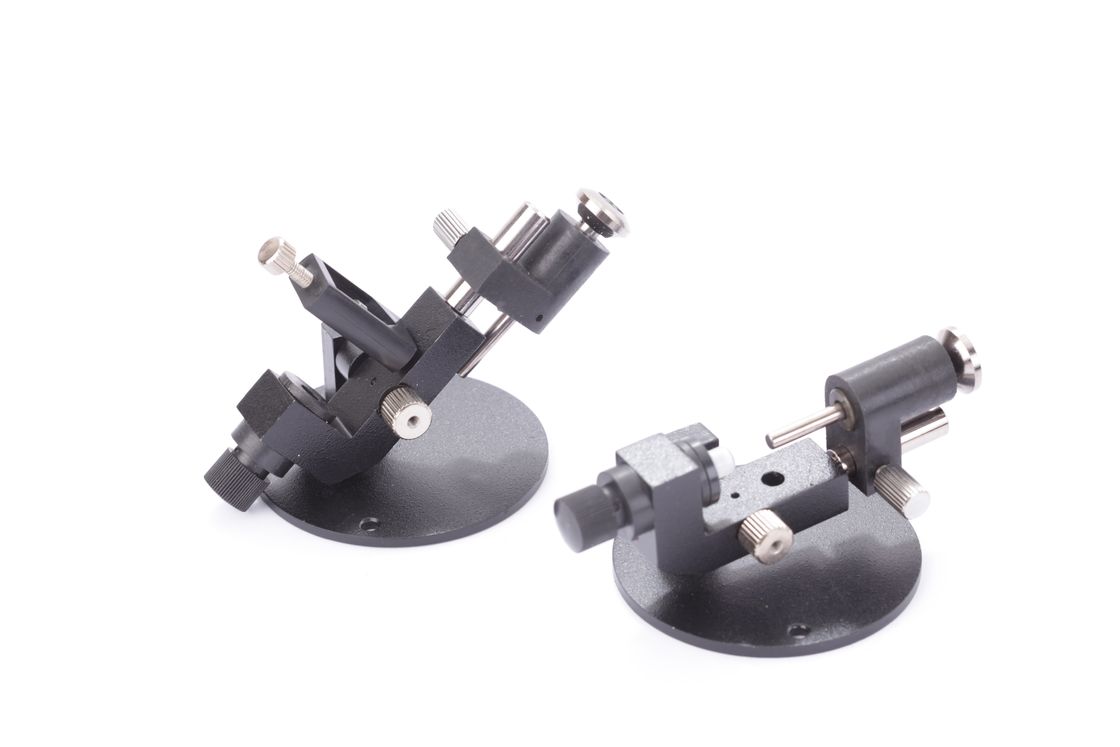

Bullet Holder 2 Sets
Light Source 5W LED+12V/50W Halogen
Coaxial Light
Polarizing Light
UV Filter
Filter Red/Blue/Yellow/Green
Adapter 0.5x C-Mount
Photo Adapter For Cannon SLR
Function Panel Touch Type, User-Friendly Design, Easy To Operate And Accurate
Power Power Supply 80-240V
