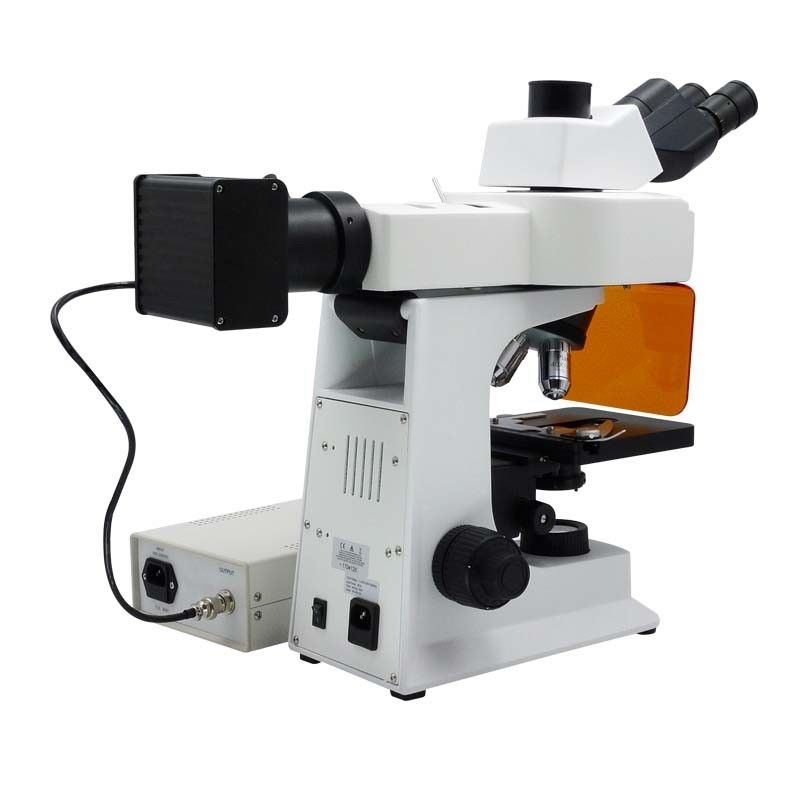

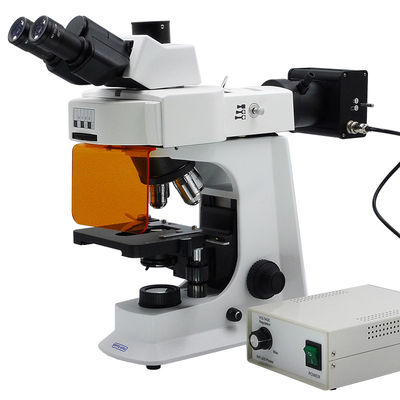

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning
40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning

Large Image :  40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A16.2601
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Application: Research|Learning Certification: CE|Rohs
Drawtube: Binocular|trinocular Illumination: LED
Magnification: 40x - 1000x Theory: Fluorescence Microscope
High Light:

epi-fluorescence microscope

,

inverted fluorescence microscope


40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 0

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 1



40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 2
Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height;
The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 3
Quadruple, Backward
4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 4
Double Slide Holder  Working Stage
Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm


40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 5
Condenser & Light Source
Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
3W-LED Illumination Systems

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 6

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 7

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 8

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 9

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 10
6 Holes Disk Fluorescence Unit
Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View,

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 11
5W LED Lamp Fluorescent
Illumination Unit, With Field Diaphragm, Light Switch Lever.

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 12

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 13

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 14

Items A16.2601-L LED Fluorescent Microscope Specification -B2 -T2 -B4 -T4 Cata. No.
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm     A53.2621-B
Seidentopf Trinocular  Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80     A53.2621-T
Eyepiece WF10X/20mm (High Eyepoint) ●● ●● ●● ●● A51.2602-1020
Nosepiece Quadruple, Backward A54.2610-N734
Quintuple, Backward A54.2610-N735
Infinity
E-Plan Objective
EPLAN 4x/0.10,W.D.=12.1mm A52.2605-4
EPLAN 10x/0.25,W.D.=4.14mm A52.2605-10
EPLAN 40x/0.65(S),W.D.=0.58mm A52.2605-40
EPLAN 100x/1.25(S, Oil),W.D.=0.19mm A52.2605-100
Infinity Plan
Semi-APO Fluorescent Objective
UplanFLN 4x, N.A.0.16,W.D.=17.151mm A5F.2611-4
UplanFLN 10x, N.A.0.30,W.D.=7.68mm A5F.2611-10
UplanFLN 20x, N.A.0.50,W.D.=1.96mm A5F.2611-20
UplanFLN 40x, N.A.0.75,W.D.=0.78mm A5F.2611-40
UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm A5F.2611-100
Working Stage Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder A54.2601-S04
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder
A54.2601-S12
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down A56.2614-C06b
Illumination 3W-LED Illumination Systems
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2613-3W
12V/20W Halogen Lamp A56.2650-20W
6V/30W Halogen Lamp A56.2650-30W
Field Diaphragm Upgrade To Kohler Illumnation A56.2615-S
Filter Dia.45mm, Blue  A56.2616-45B
Dia.45mm, Green A56.2616-45G
Dia.45mm, Yellow A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective A5D.2610-S
Polarizing Analyzer + Polarizer Set A5P.2601-S
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-S
Fluorescence Upgrade From A12.2601-C/CT Biological Microscope With:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
    A5F.2602-2
Upgrade From A12.2601-C/CT Biological Microscope With:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
    A5F.2602-4
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable A55.2601-10
Upgrade From A12.2601-C/CT Fluorescence Microscope With: A55.2610
Mirror Reflecting Mirror & Holder A56.2601
Attachment Wire Winding Device A50.2602-S
Package Carton Size 970×340×440mm, 1 pc / Ctn
Weight Gross Weight: 22 kgs, Net Weight: 18 kgs
Note: ""In Table Is Standard outfits, "" Is Optional Accessories
40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 15

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 16

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 17

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 18
Fluorescent Filters Exciter (nm) Dichroic (nm) Emitter (nm)
UV 330-380 400 435
V 380-420 430 460
B 420-490 505 520
G 500-550 575 590

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 19

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 20

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 21

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 22

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 23

40x - 1000x LED Trinocular Fluorescence Microscope For Research / Learning 24
