LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope

LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope

Large Image :  LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.2606-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Certificate: CE, Rohs Magnification: 50x100x200x500x
Drawtube: Trinocular Eyepiece: WF10x/22
Nosepiece: 4 Holes Objective: LWD Metallurgical Infinity Plan BF 5x10x20x50x
Working Stage: Three Layer Mechanical Stage Focusing: Coaxial Coarse & Fine
Light Source: 12V50W Halogen Power Supply: 100~240V
High Light:

reflected light microscope

,

halogen lamp microscope

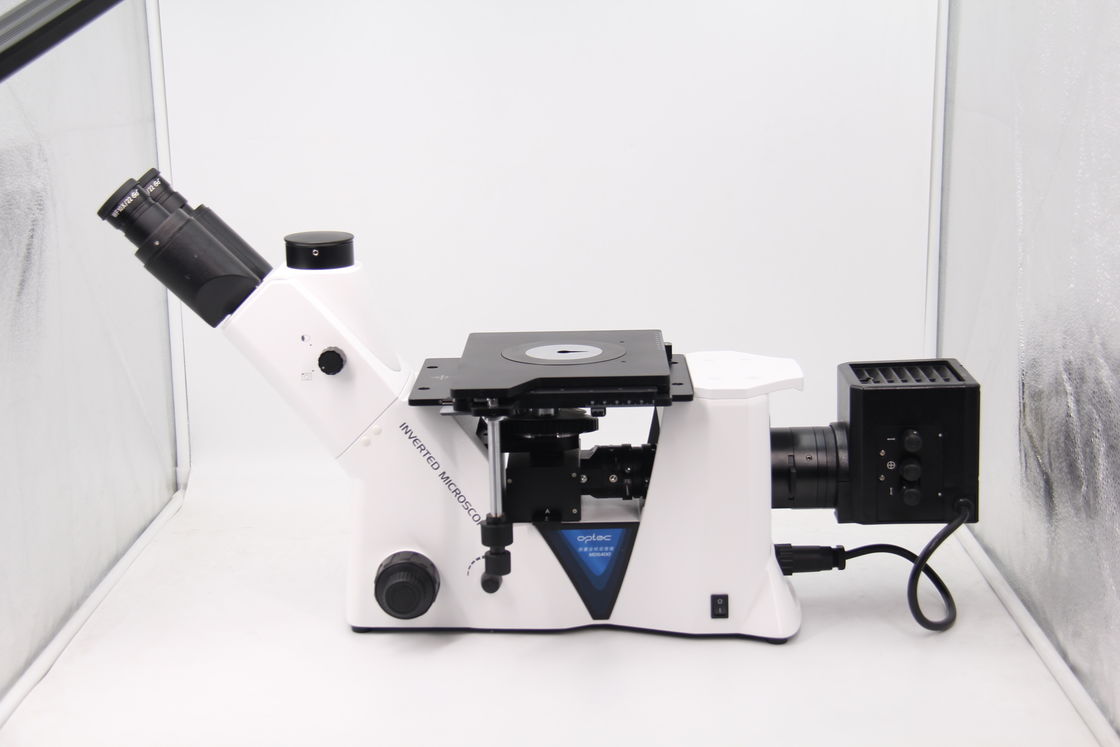

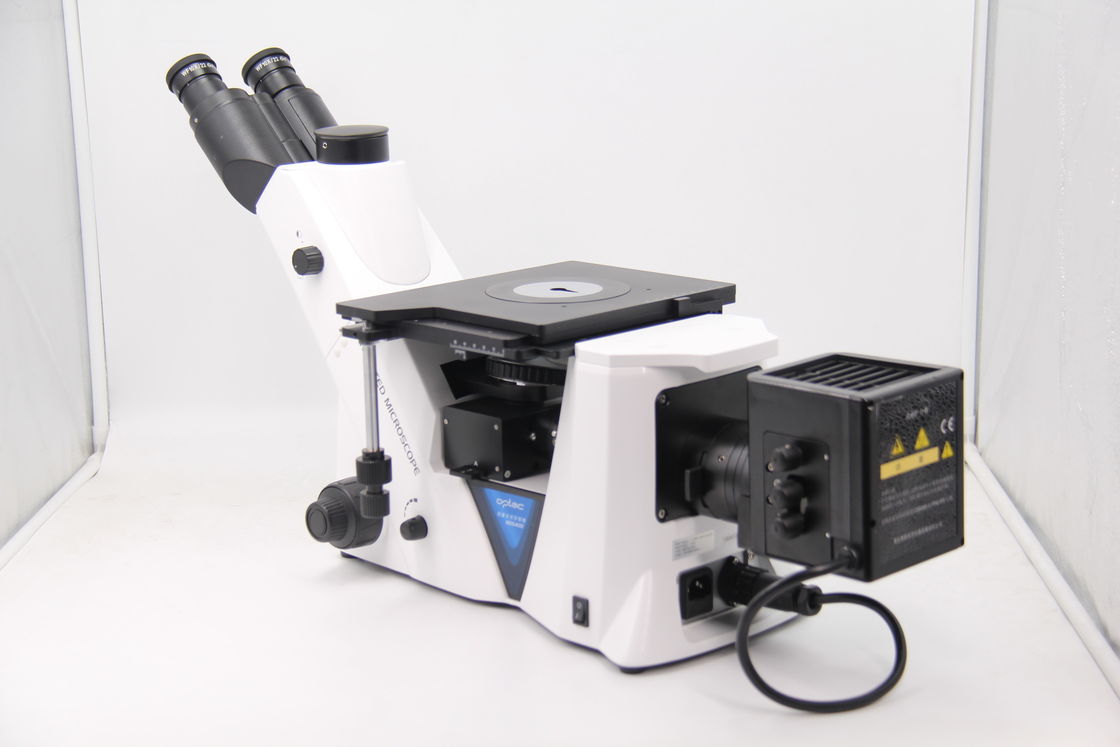

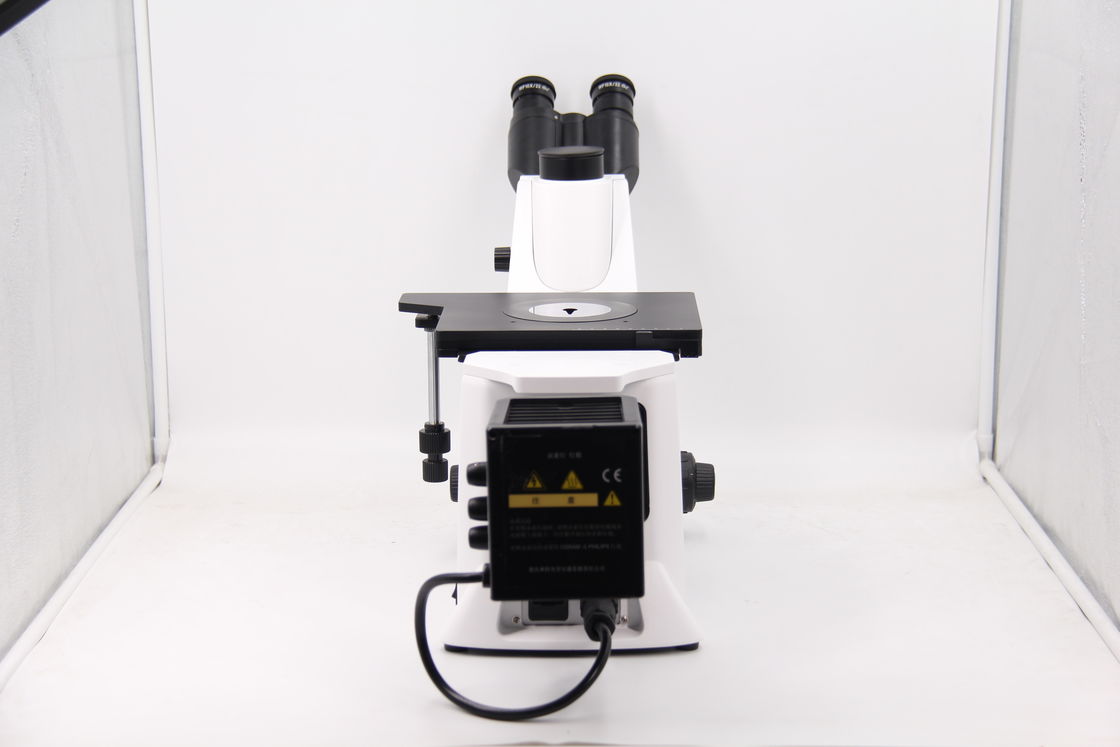

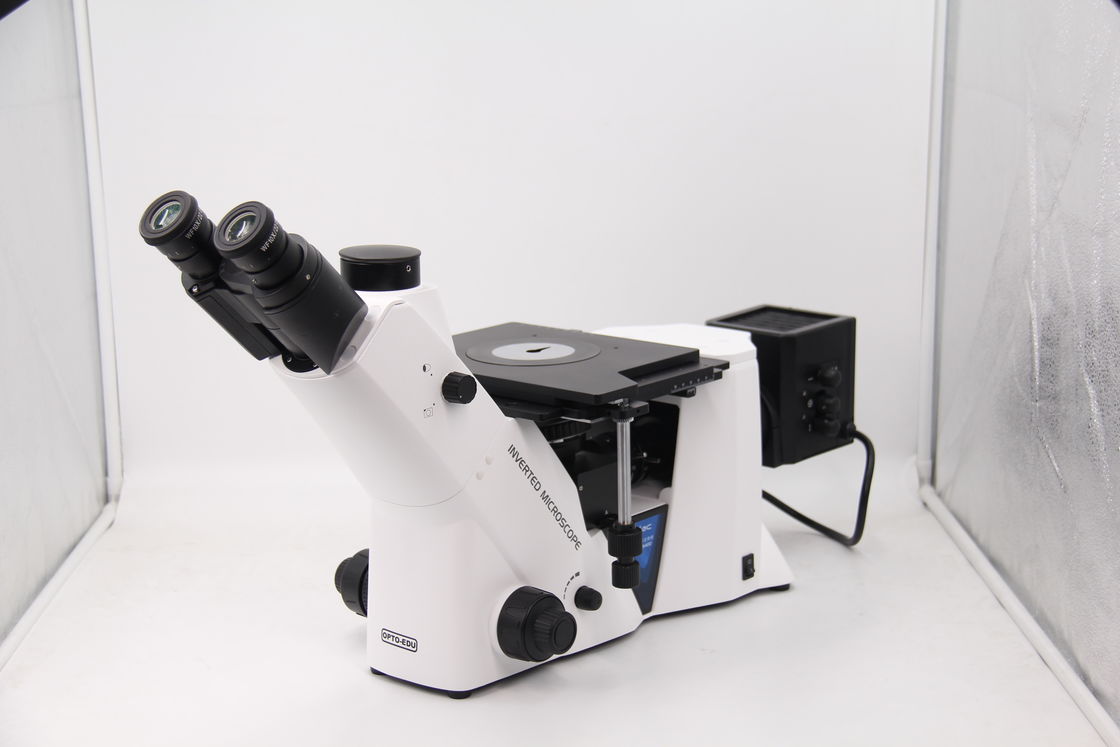

OPTO-EDU A13.2606-BD Trinocular Inverted Metallurgical Microscope



Product Description
A13.2606 Inverted Metallurgical Microscope is a kind of metallurgical microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. Metallurgical microscope is used for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products.

LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 0
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 1
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 2
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 3
Super Wide Field Eyepiece

Seidentopf Trinocular Head Inclined 30°, Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, With Micrometer

LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 4
Working Stage
Stage Size 210×180mm, Moving Range 50×50mm
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 5
Objectives For A13.2606
Metallurgical LWD Infinity Plan BF (Bright Field) & BD (Bright & Dark Field) Objectives
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 6
Illumination
Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 7
Polarizing
Analyzer & Polarizer for simple polarizing observation
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 8
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 9
LWD 4 Holes Metallurgical Optical Microscope / Inverted Metallurgical Microscope 10

Items A13.2606 Invered Metallurgical Microscope A13.2606 A13.2606-BD Cata. No.
Head Seidentopf Trinocular Head Inclined 30°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 A53.2643
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-1022
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable,
With Micrometer X-0.1mm*180 Div / Y-Single Line
A51.2622-1022
WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-2012
Nosepiece Quintuple - A54.2610-N925
Quadruple(Specially For Bright&Dark Field objectives) - A54.2610-N924
Metallurgical LWD Infinity Plan BF
(Bright Field) Objectives
LPL 5x/0.13, W.D.=16.04mm A5M.2633-5
LPL 10x/0.25, W.D.=18.48mm A5M.263310
LPL 20x/0.40, W.D.=8.35mm A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.10mm A5M.2633-100
Metallurgical LWD Infinity Plan BD
(Bright & Dark Field) Objectives
LPL 5x/0.13BD, W.D.=16.04mm - A5M.2634-5
LPL10x/0.25BD, W.D.=18.48mm - A5M.2634-10
LPL 20x/0.40BD, W.D.=8.35mm - A5M.2634-20
LPL 50x/0.70BD, W.D.=1.95mm - A5M.2634-50
Working Stage Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Size Dia.110mm A54.2601-S11T
Round Plate With Oval Hole A54.2601-MD400
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm, Fine Focusing Div. 0.002mm, Fine Stroke Per Rotation 0.2mm
Polarizing Analyzer + Polarizer Set A5P.2602
Illumination Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V A56.2613-12V50W
Koehler Illumination 5W LED, Input Voltage 100V~240V A56.2651-5W
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually
A56.2660
Filter Blue, Dia.34mm A56.2616-34B
Green, Dia.34mm A56.2616-34G
Amber, Dia.34mm A56.2616-34A
Grey, Dia.34mm A56.2616-34N
Adapter SLR Digital Camera Adapter For Canon, 100% Light For Camera Portt A55.2622-BC
SLR Digital Camera Adapter For Nikon, 100% Light For Camera Port A55.2622-BN
C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount 1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Packing Size: 660mmx590mmx325mm
Weight Gross Weight: 17 kgs, Net Weight: 12.5 kgs
Note: ""In Table Is Standard outfits, "" Is Optional Accessories.
