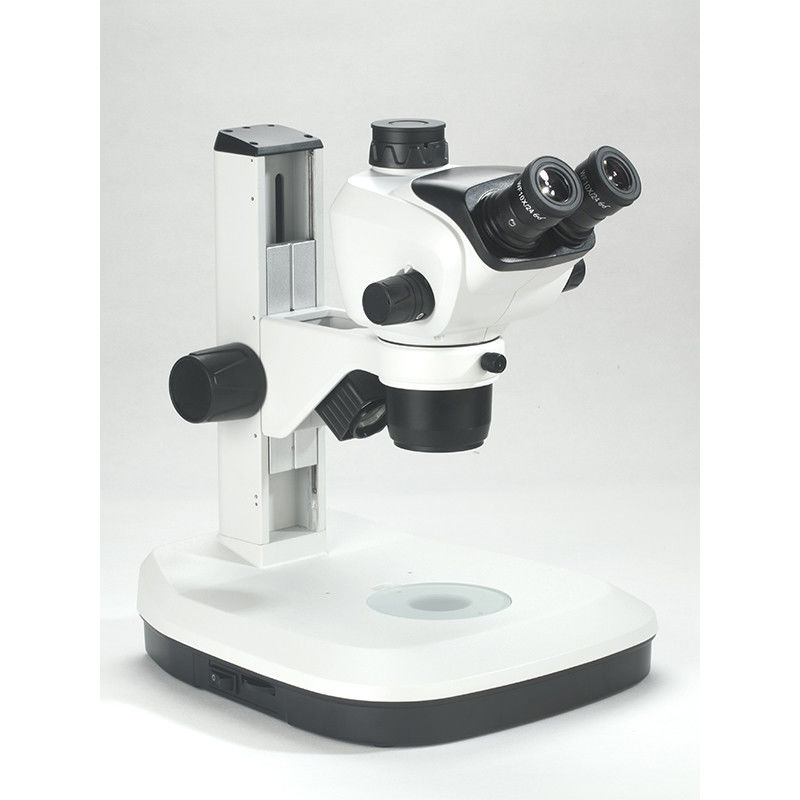

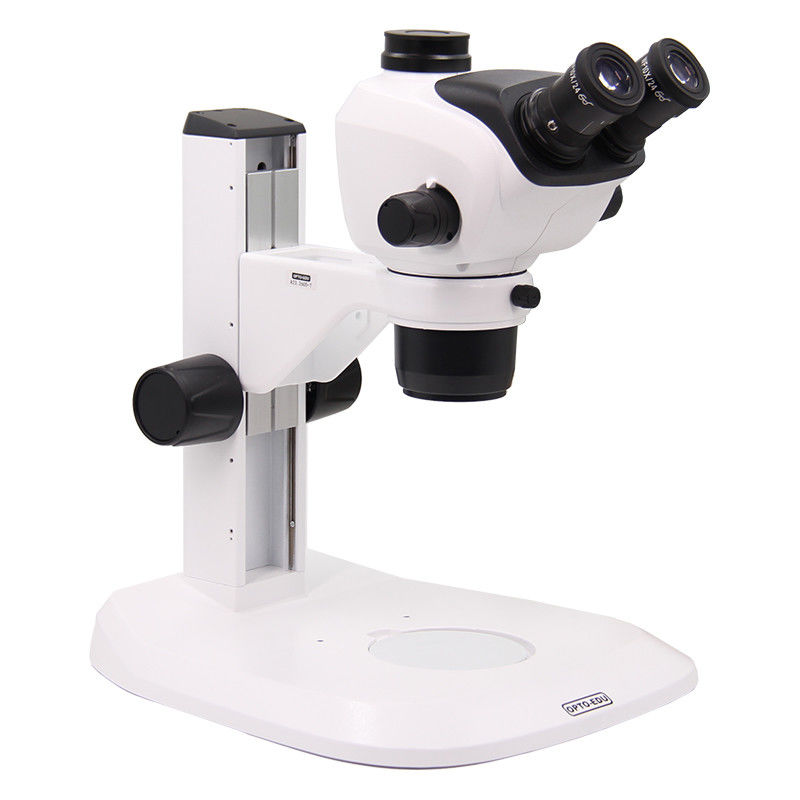

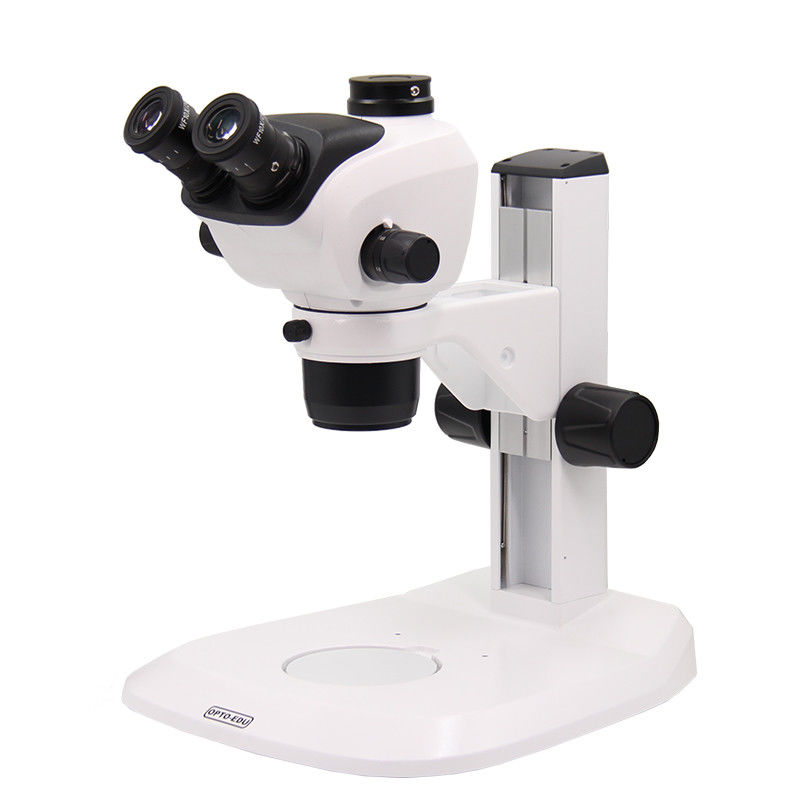

OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED

OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED

Large Image :  OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE,
Model Number: A23.2604
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Head: Seidentopf Binocular Head Inclined 40°, Interpupilary Distance 50-75mm Eyepiece: 0.65~5.3x, Zoom Knob With Magnifying Stop Pin
Zoom Lens: 0.68~4.7x, Zoom Knob With Magnifying Stop Pin Zoom Ratio: '1:8.1
Working Distance: 6.5x~53x, Max 3.25x~212x With Optional Eyepiece & Auxiliary Lens Stand: Large Track Stand, Base Size 330x300cm
High Light:

digital usb microscope

,

portable digital microscope

  • 0.68~4.7x Zoom Lens, High Zoom Ratio 1:6.8, Outstanding Ergonomic Design
  • Total Magnification Up To 3.4x~188x (View Field 67.65~1.38mm) With Optional Eyepiece & Lens
  • Binocular & Trinocular Head 35° Viewing Angle Large View WF10x/23mm Eyepiece
  • Zoom Knob With Magnifying Stop Pin Enable User To Limit Zoom Range As Need Easily
  • Large Track Stand 33x30cm High Stability, Reflect & Transmit 3W LED Light Available

OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 0
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 1
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 2
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 3
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 4
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 5
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 6
Eyepiece

Eyepiece tube Dia.30mm, High eyepoint, diopter adjustable
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 7
Zoom Lens
With auxiliary 0.5x/0.75x/2.0x lens to get higher magnification

A23.2603 Zoom Lens 0.7x~4.5x, Zoom Ratio 1:6.5 Technical Data
Auxiliary Lens 0.5x 0.75x 1x (Standard) 2.0x
Working Distance 184mm 128 mm 108mm 40mm
Eyepieces 10x/22mm Magnification 3.5x~22.5x 5.25x~33.75x 7x~45x 14x~90x
View Field (mm) 62.86~9.78 41.91~6.52 31.43~4.89 15.72~2.45
Eyepieces 15x/16mm Magnification 5.25x~33.75x 7.87x~50.63x 10.5x~67.5x 21x~135x
View Field (mm) 48.57~7.56  32.38~5.04  24.29~3.78 12.14~1.89
Eyepieces 20x/12mm Magnification 7x~45x 10.5x~67.5x 14x~90x 28x~180x
View Field (mm) 37.14~5.78 24.76~3.85 18.57~2.89 9.29~1.44
A23.2604 Zoom Lens 0.68x~4.7x, Zoom Ratio 1:6.8 Technical Data
Auxiliary Lens 0.5x 0.75x 1x (Standard) 2.0x
Working Distance 184mm 128 mm 108mm 40mm
Eyepieces 10x/23mm Magnification 3.4x~23.5x 5.1x~35.3x 6.8x~47x 13.6x~94x
View Field (mm) 67.65~9.75 45.1~6.52  33.82~4.89  16.91~2.45
Eyepieces 15x/16mm Magnification 5.1x~35.3x 7.65x~52.9x 10.2x~70.5x 20.4x~141x
View Field (mm) 50.0~7.23  33.33~4.82  25.0~3.62  12.5~1.81
Eyepieces 20x/12mm Magnification 6.8x~47x 10.2x~70.5x 13.6x~94x 27.2x~188x
View Field (mm) 38.24~5.53  25.49~3.69 19.12~2.77 9.56~1.38
A23.2605  Zoom Lens 0.65x~5.3x, Zoom Ratio 1:8.1 Technical Data
Auxiliary Lens 0.5x 0.75x 1x (Standard) 2.0x
Working Distance 184mm 128 mm 108mm 40mm
Eyepieces 10x/24mm Magnification 3.25x~26.5x 4.88x~39.75x 6.5x~53x 13x~106x
View Field (mm) 73.85~9.06 49.18~6.04  36.92~4.53  18.46~2.27
Eyepieces 15x/16mm Magnification 4.88x~39.75x 7.32x~59.63x 9.75x~79.5x 19.5x~159x
View Field (mm) 52.25~6.42 34.84~4.28 26.15~3.21 13.08~1.6
Eyepieces 20x/12mm Magnification 6.5x~53x 9.75x~79.5x 13x~106x 26x~212x
View Field (mm) 40~4.91 26.67~3.27 20~2.45 10~1.23
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 8
Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Rotating switching to video output and input, 100% light distribution
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 9
Zoom Knob
Zoom knob with magnifying stop pin, User can limit the zoom range as per self-choice
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 10
Up/Bottom 3W LED
Powered By Safety Low Voltage Charger

Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Items A23.26 Series Zoom Stereo Microscope A23.2603 A23.2604 A23.2605 Cata. No.
B BL B BL T TL B BL T TL
Head Seidentopf Head, Interpupilary Distance 50-75mm
Binocular Head Inclined 40°
Binocular Head Inclined 35°
Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Trinocular Upgrade To Light Split Fixed E50:P50             A53.2650-E50P50
Eyepiece Eyepiece Tube Dia.30mm, High Eyepoint, Diopter Adjustable
WF10x/22mm, Pair                 A51.2621-1022
WF10x/23mm, Pair             A51.2621-1023
WF10x/24mm, Pair             A51.2621-1024
Zoom Lens 0.7x~4.5x, Zoom Ratio 1:6.5
0.68~4.7x, Zoom Ratio 1:6.8
0.65~5.3x, Zoom Ratio 1:8.1
Zoom Knob With Magnifying Stop Pin
Magnification 7.0x~45x, Up to 3.5x~180x By Optional Auxiliary Lens
6.8x~47x, Up to 3.4x~188x By Optional Auxiliary Lens
6.5x~53x, Up to 3.25x~212x By Optional Auxiliary Lens
W.D. Working Distance 108mm, With Standard 1x Lens A54.2601-S04
Stand Large Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
No Light Source
          A54.2609-T
Large Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
Up/Bottom 3W LED, Power By Safety Low Voltage Charger
          A54.2609-TL
Package Carton Size 480×370×475mm, 1 Unit/Ctn
Weight Gross Weight: 8 kgs, Net Weight: 6.5 kgs
Note: ""In Table Is Standard outfits, "" Is Optional Accessories
Items Zoom Stereo Microscope Optional Accessories Cata. No.
Eyepiece WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-2012
Auxiliary Lens 0.5x, W.D.189mm A52.2621-05
0.75x, W.D.128mm A52.2621-75
2.0x, W.D.36mm A52.2621-20

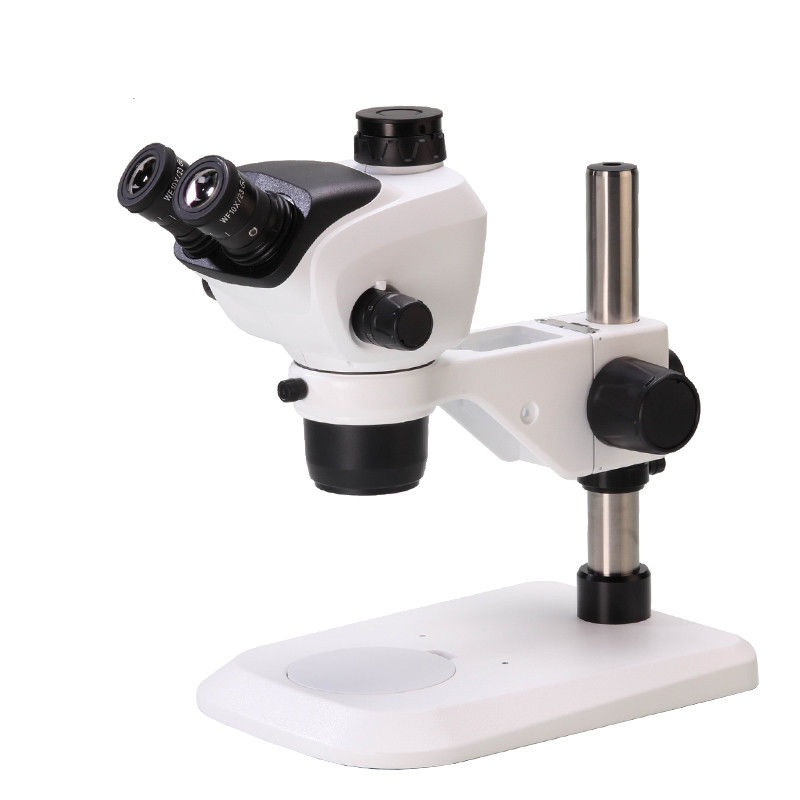

Stand Small Pole Stand, Base Size 300x220cm, No Light, Pole Stand Focusing Range 115mm A54.2609-P
Large Track Stand, Coaxial Coarse/Fine Focus, Base Size 330x300cm, No Light, Track Stand Focusing Range 80mm A54.2609-TF
Large Track Stand, Coaxial Coarse/Fine Focus, Base 330x300cm, 3W LED Up/Bottom Light, Track Stand Focusing Range 80mm A54.2609-TFL
CCD Adapter 1.0x, Focus Adjustable A55.2601-SZ10
0.7x, Focus Adjustable A55.2601-SZ07
0.5x, Focus Adjustable A55.2601-SZ05
Polarizing Polarizer + Analyzer, For Stereo Microscope A5P.2604
Connect Ring LED Light Connect Ring A56.2602-R
Working Stage XY Travel Range 75x56mm, Stage Size 180x155x27mm, Glass Size 116x96mm, Min Scale 0.1mm, Diameter Φ95 for Connecting stand base: 95mm A54.1632
Micrometer 10 Kinds Of Regular Eyepiece Micrometer Model A58.2002
Light Source LED Ring Light, 56 LEDs, 4.5W, AC 100~240V, Inner Dia. 58mm A56.2103-A
LED Cold Light, 10W-30W A56.2617
Halogen Cold Light Source, 150W A56.2618

OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 11

OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 12
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 13
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 14
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 15
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 16
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED 17
