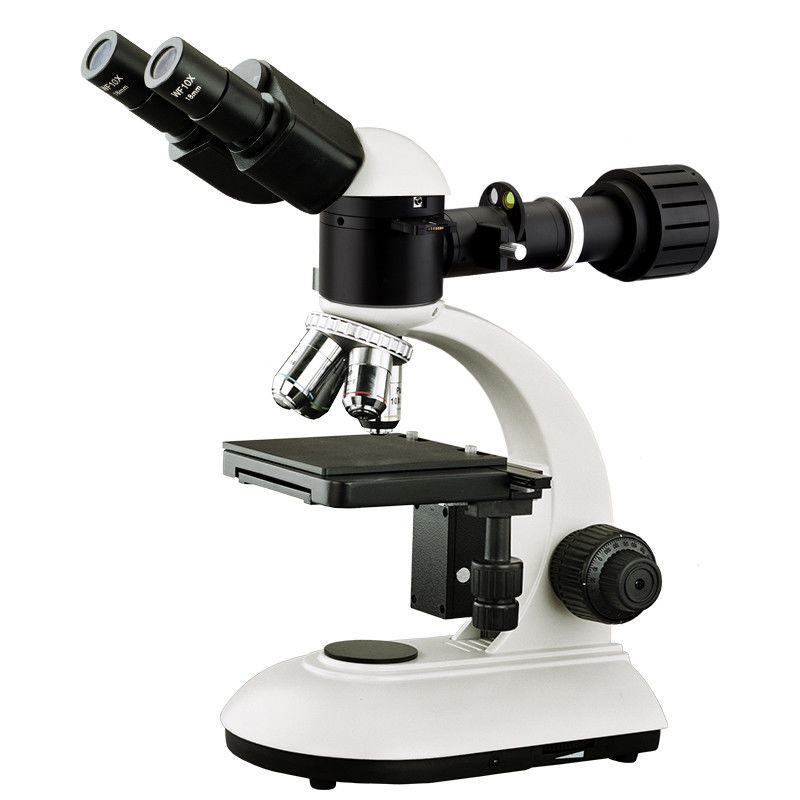

Binocular Optical School Student Microscope Monocular Trinocular Educational Gift
Backward Quadruple Nosepiece With Metallurgical LWD Infinity Plan Objectives

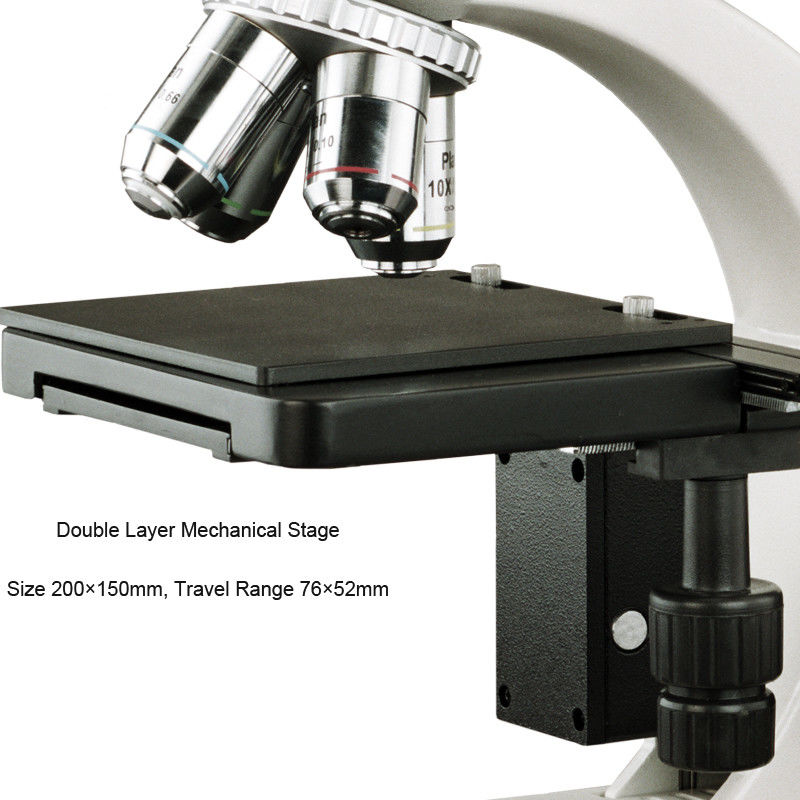

Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm
| Items | A13.2603 Metallurgical Microscope Specification | B | T | Cata. No. |
| Head | Seidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm | ● | A53.2601-B | |
| Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80 | ● | A53.2601-T | ||
| Eyepiece | WF10x/18mm, High Eyepoint, | ● | ● | A51.2602-1018 |
| WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable | ● | ● | A51.2605-1018D | |
| Nosepiece | Quadruple, Backward | ● | ● | A54.2610-N03 |
| Metallurgical LWD Infinity Plan Objectives | LPL 5x/0.13, W.D.=16.04mm | ● | ● | A5M.2633-5 |
| LPL10x/0.25, W.D.=18.48mm | ● | ● | A5M.263310 | |
| LPL 20x/0.40, W.D.=8.35mm | ○ | ○ | A5M.2633-20 | |
| LPL 50x/0.70, W.D.=1.95mm | ● | ● | A5M.2633-50 | |
| LPL 80x/0.80, W.D.=0.85mm | ○ | ○ | A5M.2633-80 | |
| LPL 100x/0.90(Dry), W.D.=1.00mm | ○ | ○ | A5M.2633-100 | |
| Working Stage | Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm | ● | ● | A54.2601-S03T |
| Focusing | Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm |
● | ● | |
| Illumination | Reflect Light Source, 5W LED Lamp, With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty) | ● | ● | A56.2613-12V20W |
| Power Supply | Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | |||
| Polarizing | Analyzer + Polarizer | ○ | ○ | A5P.2603-BS |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | A55.2601-B05 |
| C-Mount1.0x, Focus Adjustable | ○ | ○ | A55.2601-B10 | |
| Package | Carton Size 565*310*410mm, 1 Unit/Ctn | |||
| Weight | Gross Weight 9.0kgs, Net Weigth 6.0kgs | |||
| Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories. | ||||
