Opto Edu A43.1903 Portable Colposcope 6x Binocular 21v 150w Halogen Lamp

Opto Edu A43.1903 Portable Colposcope 6x Binocular 21v 150w Halogen Lamp

  • High Light

    opto edu portable colposcope

    ,

    6x portable colposcope

    ,

    halogen lamp portable colposcope

  • Magnification
    6X
  • Interpupillary Distance
    50mm-80mm
  • Diopter
    ±5D
  • Magnification Changer
    3-step Magnification Change: 0.6X,1X,1.6X
  • Focal Length Of Objective
    F=200 & F=300mm (M45x0.75mm)
  • Total Magnification
    3X, 5X, 8X, 4.7X, 7.5X, 12X
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A43.1903
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Opto Edu A43.1903 Portable Colposcope 6x Binocular 21v 150w Halogen Lamp

OPTO-EDU A43.1903 Portable Colposcope 6x Binocular 21V 150W Halogen Lamp



A43.1903 Colposcope

Product Description



A43.1903 Series Of Colposcope Specification
Item

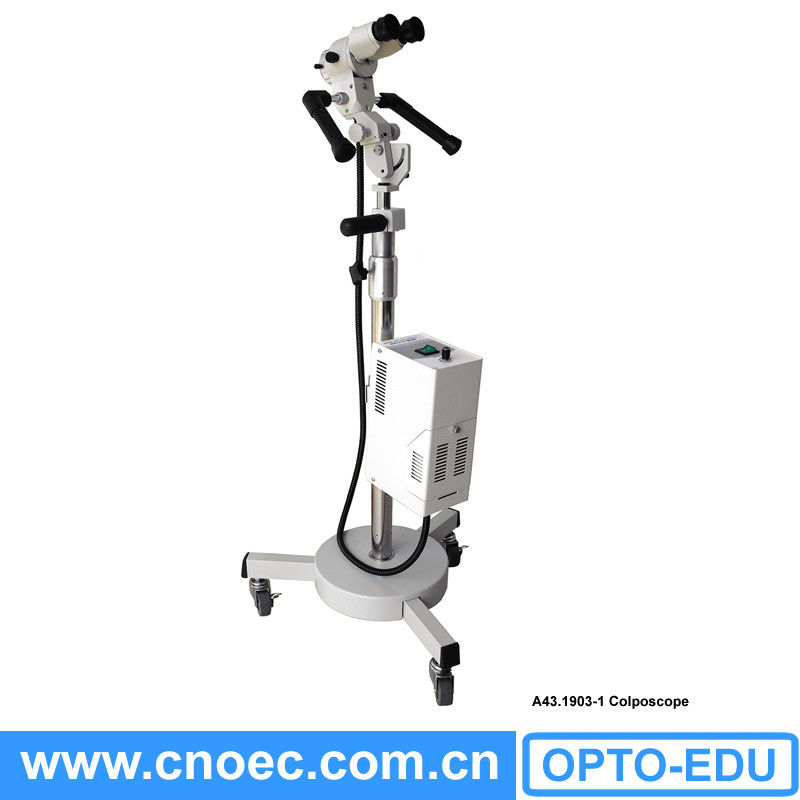

A43.1903-1

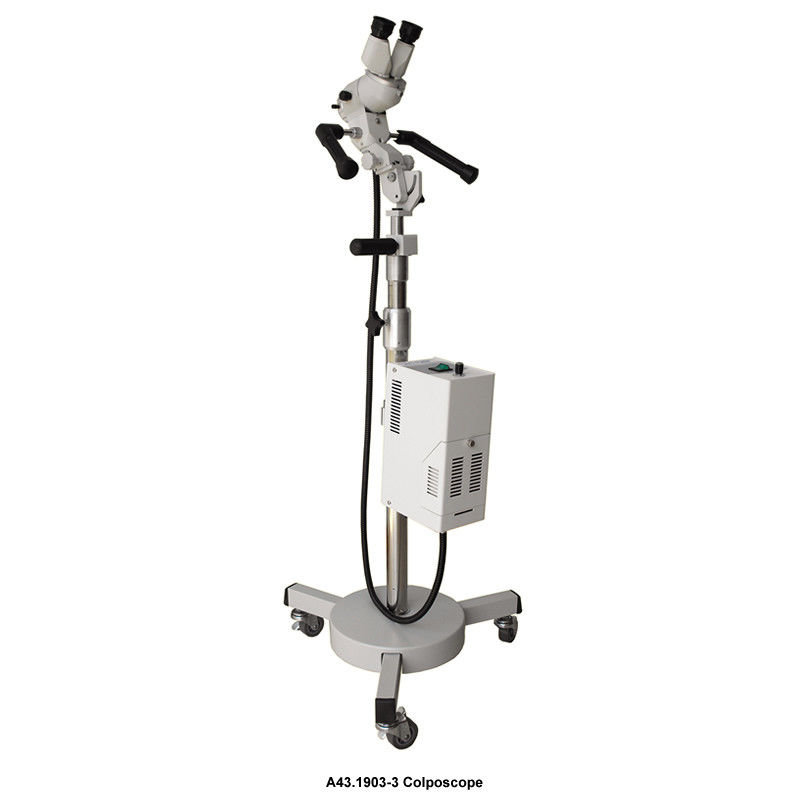

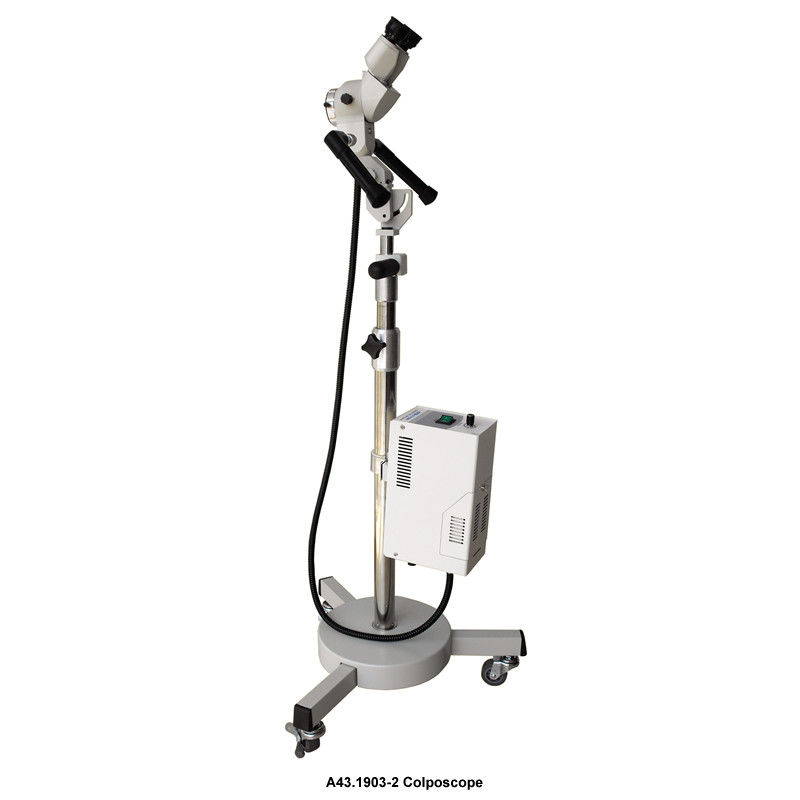

A43.1903-2 A43.1903-3
Observation angle
Straight
45º tilted Straight & 45º tilted (with 45º adapter )
Magnification of binocular
6X
Interpupillary distance
50mm-80mm
Diopter
±5D
Magnification changer
3-step magnification change: 0.6X,1X,1.6X
Focal length of objective
F=200 & F=300mm (M45x0.75mm)
Total magnification
3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field
60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing range
20mm
Illumination system
Coaxial illumination with 21V150W halogen lamp cold light source fiber-optic cable, brightness adjustable, illumination>15000lx
Filter
Green
Fiber-optic cable
Length: 1300mm
Floor stand
Column height adjustable fitted on the 3-jaws round base with casters
Power supply
AC110V-AC220V
A43.1903 Series Of Colposcope Optical Characteristics
Focal length of objective
F=200mm
F=300mm
Magnification on handwheel 1.6X 1X 0.6X 1.6X 1X 0.6X
Total magnification 12X 7.5X 4.7X 8X 5X 3X
Linear field (mm) 15.8 25.3 40.6 23.6 37.9 60.8
Exit pupil diameter (mm) 1.04
1.66
1.04
1.66
Resolution (LP/mm)
67
44.5
29.7
47.2
31.5
23.6
A43.1903 Series Of Colposcope Optional Accessories
Code Number
Objective Lens Objective F=250mm A52.1901-25

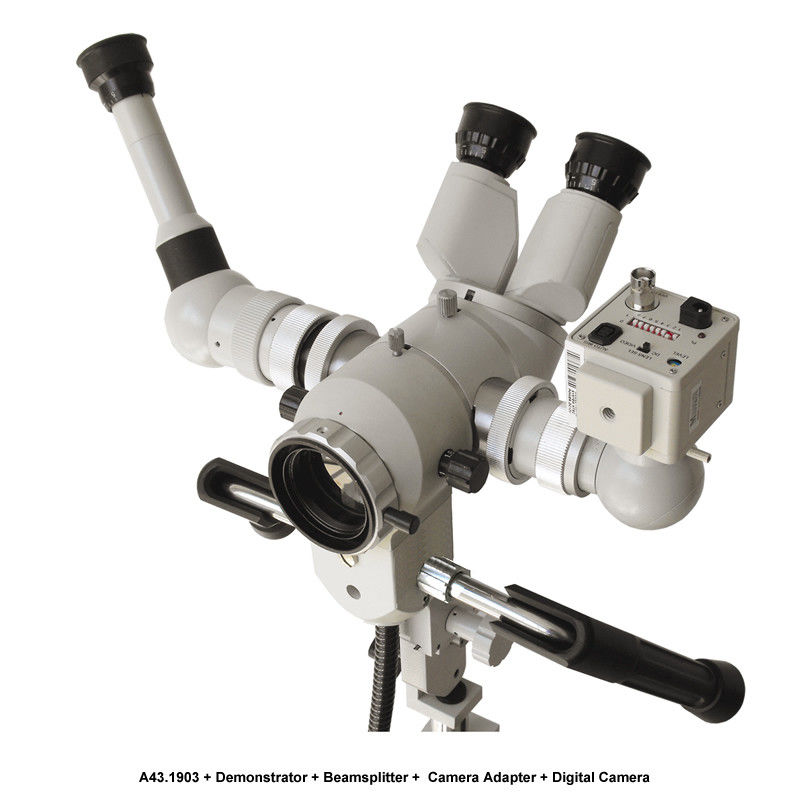

Demonstrator 6x A53.1901-1
Camera Adapter C-Mount,For 1/3” Digital Camera A55.1903-YSX
SLR Camera Adapter For Nikon or Canon SLR camera A55.1904-A
