Portable Metallurgical Digital Biological Microscope With Camera A34.4903-C

Portable Metallurgical Digital Biological Microscope With Camera A34.4903-C

  • High Light

    stereo zoom microscopes

    ,

    stereo binocular microscopes

    ,

    stereo dissecting microscope

  • Product Name
    Best Portable Metallurgical Digital Biological Microscope With Camera
  • Resolution
    5.0M, 1080p
  • Output
    USB,HD, TF Card
  • Light Source
    Dual Coaxial LED
  • Certificate
    CE, Rohs
  • Power Supply
    USB
  • Magnification
    6x~365x
  • Sensor
    CMOS Sensor
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A34.4903-C
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Portable Metallurgical Digital Biological Microscope With Camera A34.4903-C



OPTO-EDU A34.4903-C Best Portable Metallurgical Digital Biological Microscope With Camera



Camera Parameter
A34.4903-C WIFI/USB Digital Microscope
Hardware Configuration
Image Sensor APTINA MT9P001 CMOS(colorful)
Expose Mode Rolling Shutter
Maximum Resolution 2592 x 1944 (5,038,848 pixels)
Sensor Optical Format 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm*2.2μm
Dynamic Range 70.1dB
ADC 12-bit, 8-Bit R.G.B to PC
SNR(Signal Noise Ratio) 38.1dB
Spectral Characteristics 380-650nm(during daytime mode)
Binning Modes 1 x 1, 2 x 2
Exposure Capability Real-time auto, Single auto, Manual Adjustment
White Balance Real-time auto, Single auto, Manual adjustment
Software Interface DirectShow
Maximum Transmission Frame Rate(USB mode)

10FPS@2592x1944

15FPS@1920x1080,1600x1200

40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480

Maximum Transmission Frame Rate(WiFi mode)

10FPS@2592x1944

15FPS@1920x1080,1600x1200

40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480

Record Format

Snapshot

Picture Format:JPG,BMP,PNG,TIFF,PDF

Resolution:2592x1944, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480

Record

Video Format:MJPG format AVI file

Resolution:1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480

Optical Parameters
Lens Optical Magnification 0.28X~2X
Wireless Parameter/Power Parameter
Standard 802.11b/g/n
Operating Frequency Range 2.400~2.4835GHz
Available Channels 802.11n 20MHz/40MHz
802.11b/g
USA, Canada (FCC):11 channels(2.412GHz~2.462GHz)
Europe(CE):13 channels (2.412 GHz~2.472GHz)
Japan (TELEC):14 channels (2.412 GHz~2.4835GHz)
Data Rate 802.11n:up to 150Mbps 1T1R
802.11b:up to 11Mbps
802.11g:up to 54Mbps
Transmission Power 11n HT40 MCS7:+16dBm+/-1.5dBm

Receiving Sensitivity



-61 dBm@10% PER at HT40 MCS7
-61 dBm@10% PER at 54Mpbs
-85 dBm@10% PER at 11Mpbs
Suggestion on number of receiver on different resolution 10@640x480
8@800x600
6@1024x768
5@1280x720
5@1280x960
4@1920x1080
3@2592x1944

The Wireless work instructions



When there has not WiFi, LED lamp turn off
When WiFi is opened but do not connect, LED is always lighting
When WiFi is connected ,LED flashes at the beginning and stay turn on afterward
When WiFi is connected, LED flashes, about once per second .The greater the amount of data the faster it flashes, and it is about 10 times per second
Power-up Wired: direct-current 5V,power by USB cable
Wireless: DC 5V 2A power plug
Software Environment
USB work mode

Windows system demand



Microsoft WindowsR XP /7/8/8.1/10(32 & 64 bit)
CPU: equal or more than the second generation Intel core 2.8GHz
Memory: 2G or more
DVD-ROM (Need it during installing software)
WiFi work mode

Windows system demand



Microsoft WindowsR XP / 7 / 8 /8.1/10(32 & 64 bit)
CPU: equal or more than the second generation Intel core 2.8GHz
Memory: 2G or more
Internal wireless network card (support IEEE 802.11b/g/n)
iOS System Demand IOS8.0 or higher
Android system demand Android 4.0 or higher
CPU: dual-core 1.7GHz or higher
RAM memory : 1G or more
Storage ROM :suggest 8G or larger
Operating Environment
Operating temperature 0~40
Storage temperature -20~60
Operating Humidity 30~60%RH
Storage Humidity 10~80%RH

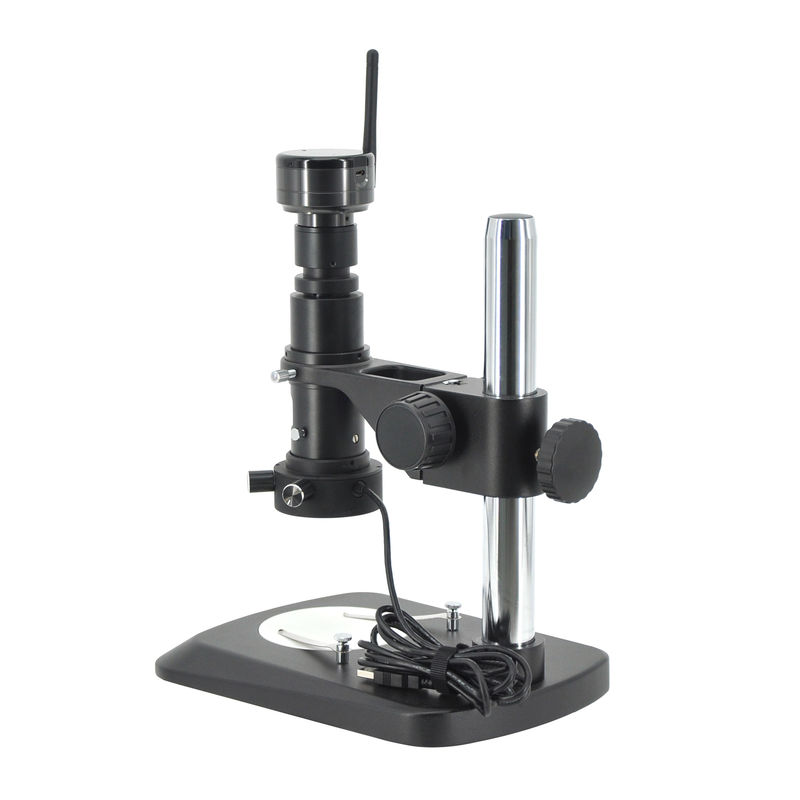

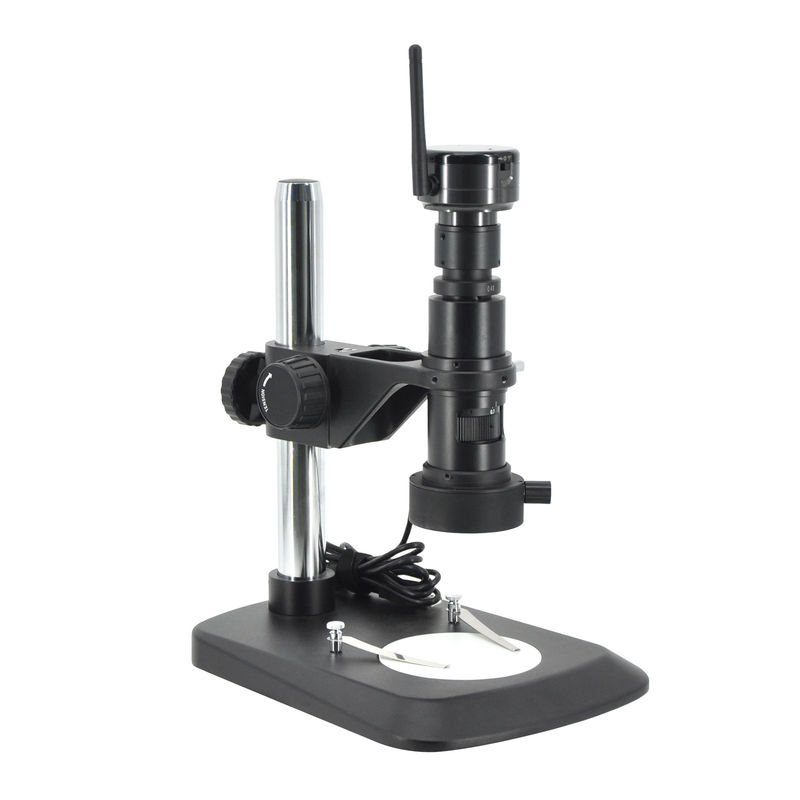

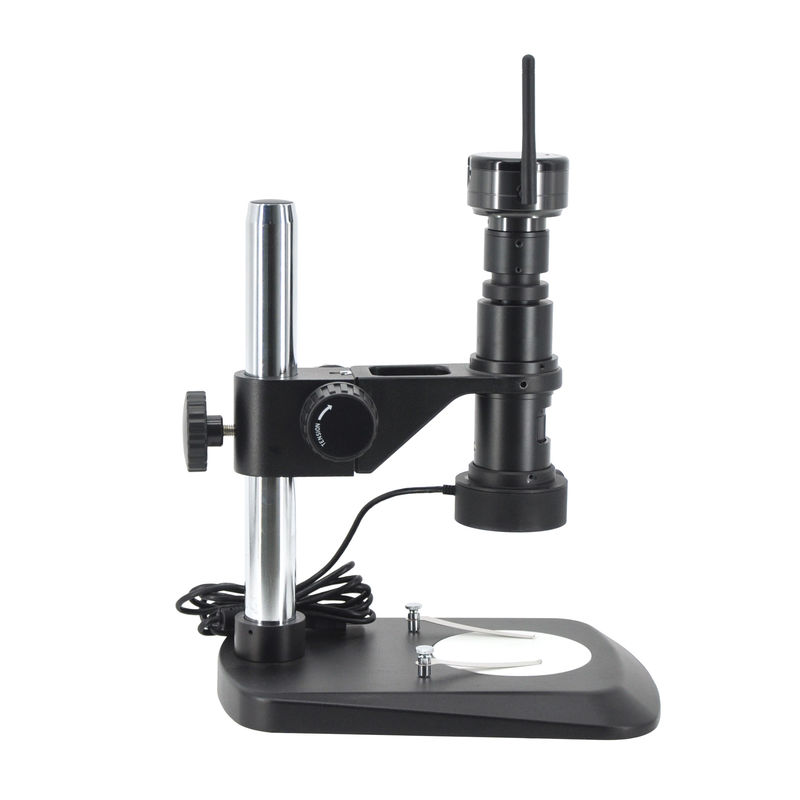

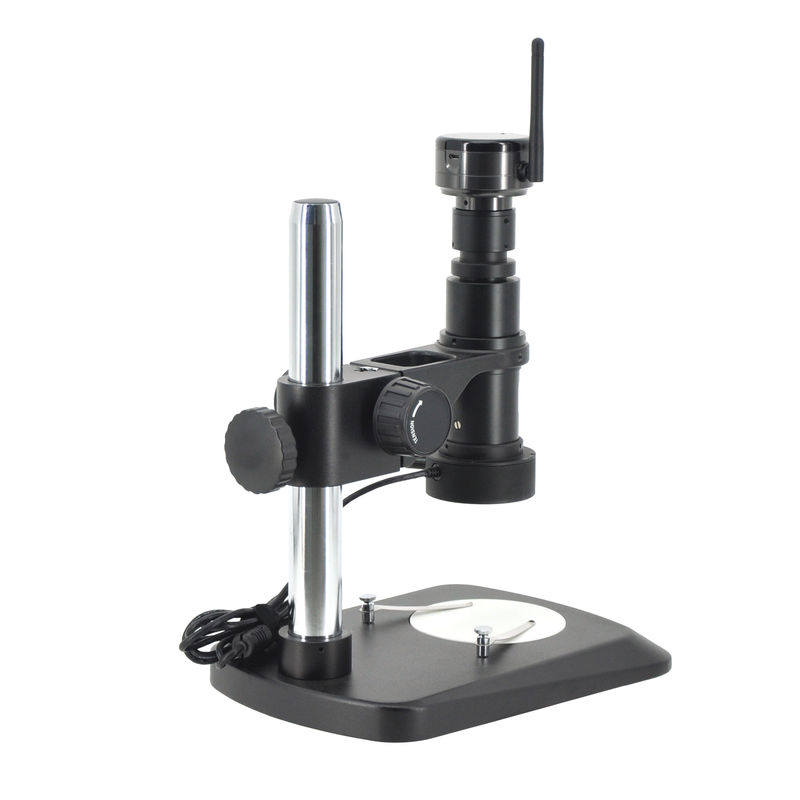

Product Display




Camera Feature







1.Connect the electronic eyepiece to devices (computer or mobile device) and open the software.

2.Connect the fill light to adapter for power supply.

3.Place the observed object on the pedestal right under the microscope.

4.Unscrew the fastening bolt, adjust the bracket by moving up and down and adjust the height of the microscope (until the computer displays pictures clearly).

5.Adjust the magnification to the maximum (5 times).

6.Adjust the bracket hand wheel until the picture displays clearly.

7.Start to use.




More Choices

Portable Metallurgical Digital Biological Microscope With Camera A34.4903-C 10

Packing & Delivery



Packing : Compact Design Box and Strong Master Carton

Shipping Time : 1-5 Days From Stock
