LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope

  • High Light

    binocular compound microscope

    ,

    wide field microscope

  • Eyepiece
    WF10x/20
  • Nosepiece
    5 Holes
  • Objective
    Infinity Plan 4x10x40x100x
  • Working Stage
    Double Layer Mechanical
  • Condenser
    Abbe N.A.1.25
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    LED
  • Power Supply
    100~240V
  • Magnification
    40x,100x,200x,400x,1000x
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.2603
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope

OPTO-EDU A12.2602-C School or Hospital Use Standard Binocular Biology Microscope

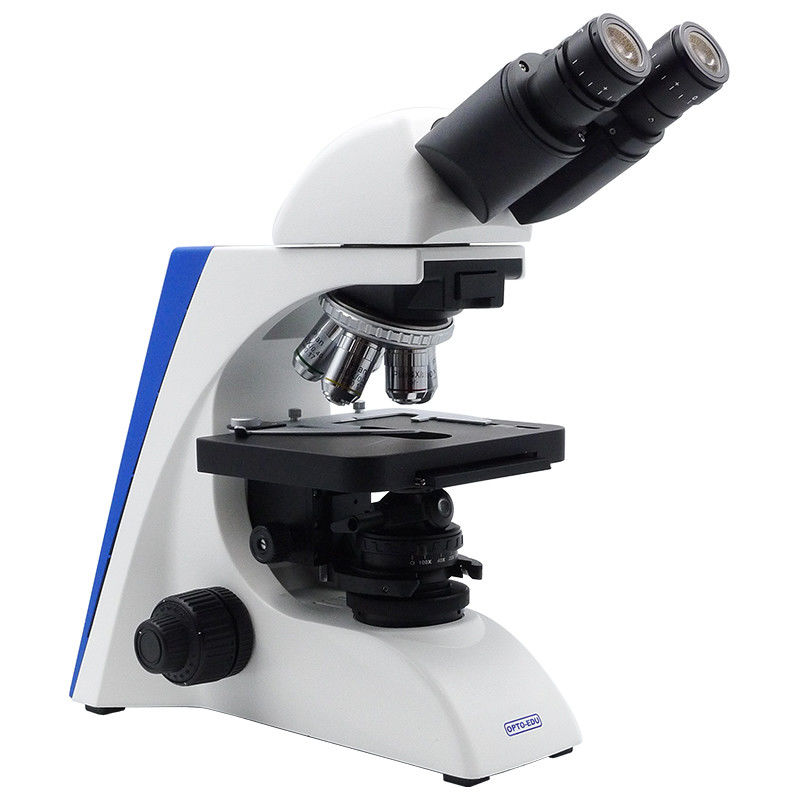

A12.2603 is a type of laboratory biological microscope, it is designed for college teaching and hospital. It is the original style which can upgrade to other microscopes, like polarzing microscope and fluorescent microscope. The features of steady structure, convenient operation and clear image is suitable for observing various biological specimens, and mostly applied in college and hospital.



♦Best Lab Microscope With Modular Structure Design To Upgrade Easily Even After Order



♦Large Size Head With Eyepiece Tube Dia.30mm 360 Degree Rotatable.



♦Super Wide Field SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable



♦Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder



♦Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 0
LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 1
LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 2

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 3

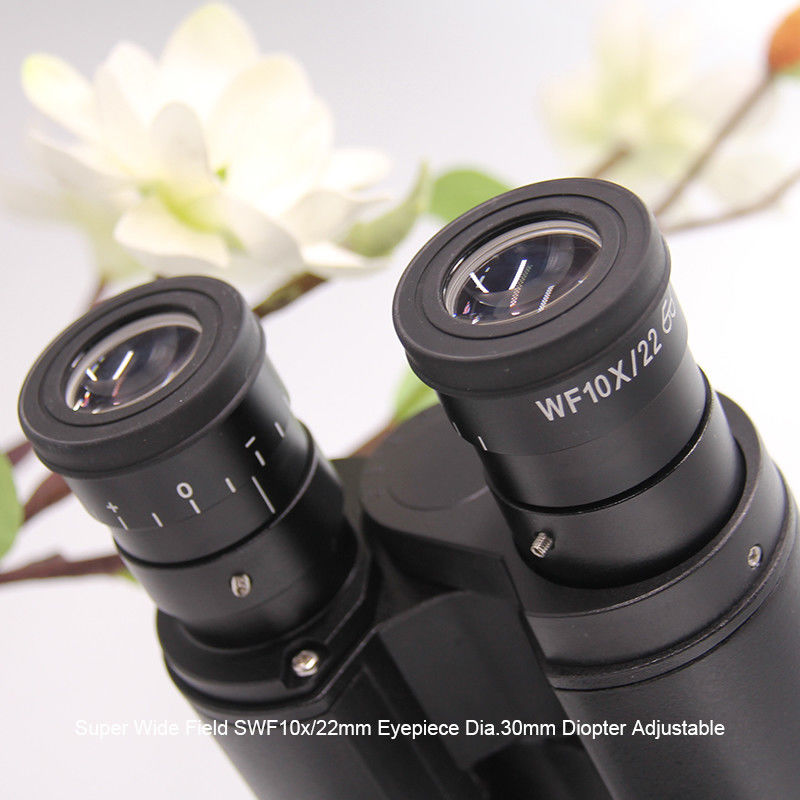

Super Wide Field Eyepiece
SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 4

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 5

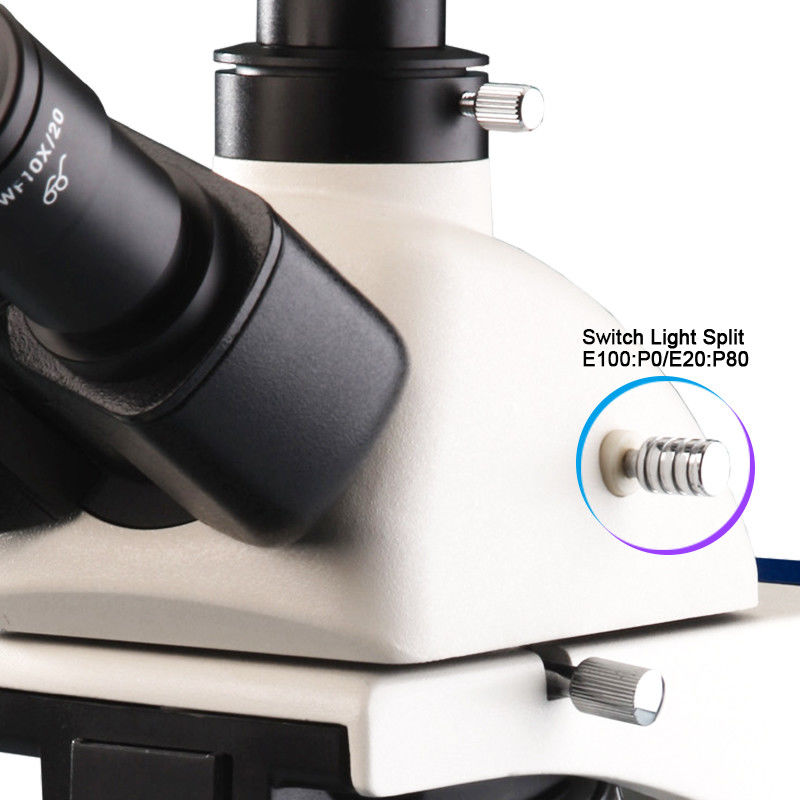

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 6

Abbe Condenser N.A.1.25

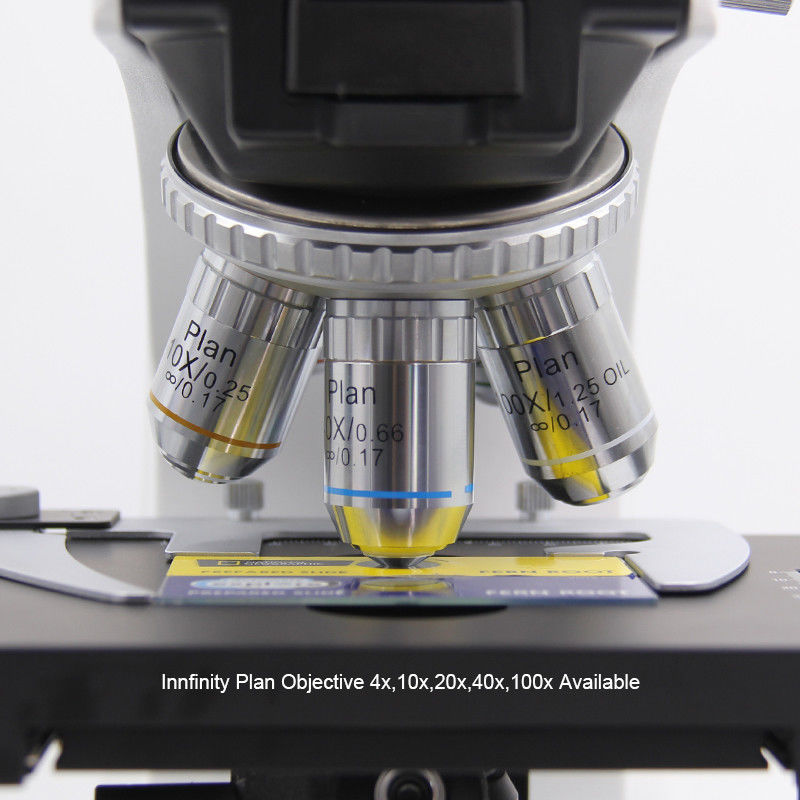

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot, Infinity Plan Objective 4x,10x,20x,40x,100x Available

Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 7

Rackless (Integrated) Mechanical Stage
Large Size 182×140mm, Double Slide Holder, Travel Range 77×52mm

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 8

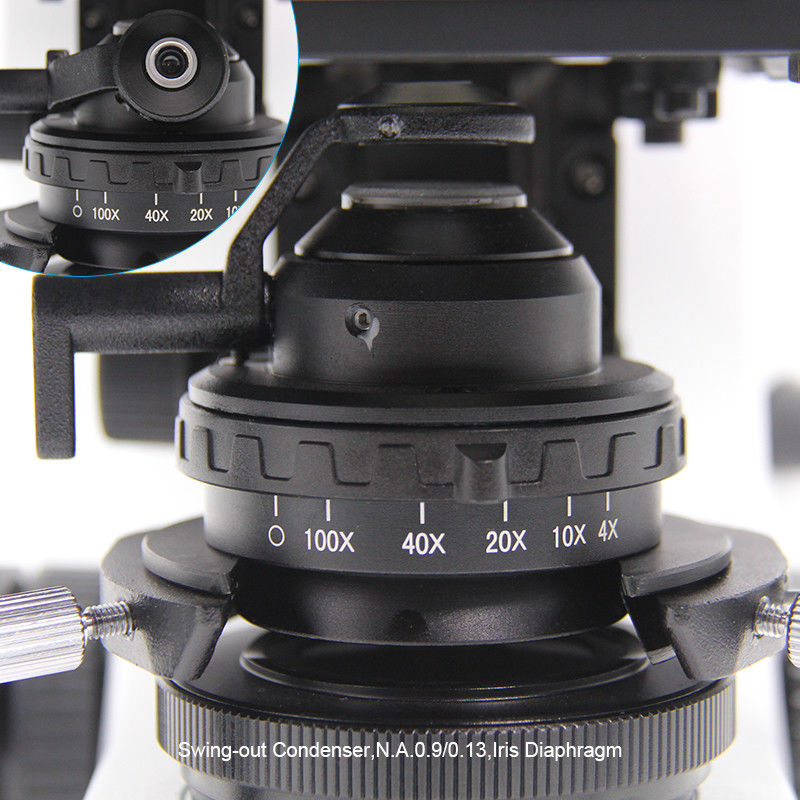

Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
Control The Amount Of Light According To Demand, The Effect Is More Perfect.

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 9

LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 10
LED 40-1000x Compound Optical Microscope A12.2603 Biological Research Trinocular Lab Microscope 11

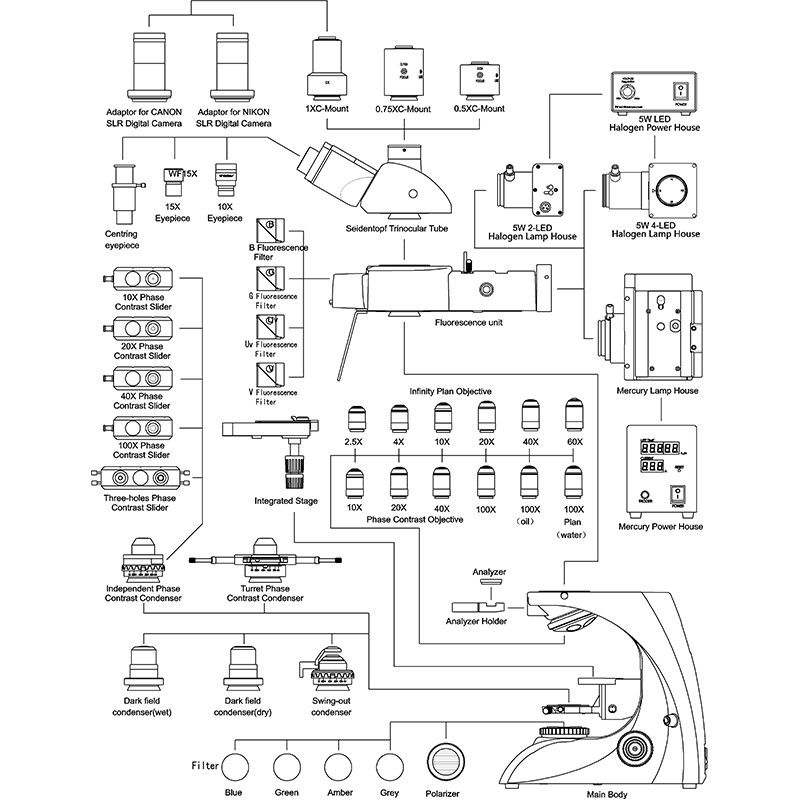

Items A12.2603 Laboratory Biological Microscope Specification -B -T Cata. No.
A12.2603 Upgarde From A12.2602 --Head Upgrade To Large Size With Eyepiece Tube Dia.30mm
--Eyepiece Upgrade To Dia.30mm Diopter Adjustable
--Standard Objectives Upgrade To 5 pcs With 20x
--Working Stage Upgrade To Large Size Rackless 182x140mm
--Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13
--Light Source Upgrade to 6V30W High Brightness + Blue Filter
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,
Eyepiece Tube Dia.30mm
A53.2623-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm
A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ●● ●● A51.2621-1022
Nosepiece Quintuple A54.2610-N01
Infinity Plan Objective PLAN 2.5X/0.07,W.D.=8.47mm A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm A52.2606-100W
Working Stage Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder A54.2601-S10
Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder A54.2601-S01
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
Condenser Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm A56.2614-07a
Illumination 6V30W Halogen Koehler Illumination, With Field Diaphragm
Power Supply Wide Voltage 100V~240V
A56.2613-6V30W
3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2651-3W
Field Diaphragm For Kohler Illumnation A56.2615-BK
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually
A56.2660
Filter Dia.45mm, Blue A56.2616-45B
Dia.45mm, Green A56.2616-45G
Dia.45mm, Yellow A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective A5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective     A5D.2610-BKW
Polarizing Analyzer + Polarizer Set A5P.2601-BK
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-BK
Fluorescence Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
  A5F.2601-2
Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
  A5F.2601-4
Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-2
Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-4
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount 1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Carton Size 520×475×285mm, 1 Unit/Ctn
Weight Gross Weight: 12 kgs, Net Weight: 10 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
