Professional Binocular Polarizing Light Microscope A15.2602-PB 640X 5 Holes

Professional Binocular Polarizing Light Microscope A15.2602-PB 640X 5 Holes

  • High Light

    student compound microscope

    ,

    highest magnification microscope

  • Eyepiece
    WF10x/20
  • Nosepiece
    5 Holes
  • Objective
    Non Stress Infinity Plan 4x10x20x40x50x
  • Working Stage
    Round Stage
  • Mechanical Tube Length
    160mm
  • Condenser
    Swing Out N.A.0.9/0.13
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    "Transmit 6V20W Reflect 12V50W"
  • Power Supply
    Power Supply
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE,
  • Model Number
    A15.2602-PB
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Professional Binocular Polarizing Light Microscope A15.2602-PB 640X 5 Holes

OPTO-EDU A15.2602-PB 640X Reflecting And Transmitting Professional Binocular Polarizing Microscope



Product Description



A15.2602 Polarizing Microscope, with full polarizing function and high quality performance, is the best tools for school and student use.

--Infinity achromatic correction optical system, infinity non-stress plan objective.

--Polarizer slide insert to reflecting light.

--Analyzer unit insert to polarizing media, rotatable 360°, module type, can be locked.

--Optical compensator: λ slip (first class red), 1/4λ slip.





A15.2602 -FB -FT -PB -PT
Head Binocular Trinocular Binocular Trinocular
Professional Polarizing Seidentopf Head, Eyepiece Tube Dia.30.5mm, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, Trinocular Head Light Split 100:0/20:80.
Eyepiece WF10x/20mm, High Eyepoint, Diopter Adjustable, 1 pc
WF10x/20mm, High Eyepoint, Diopter Adjustable, With Micrometer 0.1mm Div., 1 pc
Nosepiece Quintuple, Center Adjustable
Objective Non-stress Polarizing LWD Infinity Plan Objective (Reflecting) Non-stress Polarizing LWD Infinity Plan Objective (Reflecting)
LPL 5x/0.13, W.D. 24.23m LPL 50x/0.70(S), W.D. 1.95mm
LPL 10x/0.25, W.D. 18.48mm --
LPL 20x/0.40, W.D. 8.35mm Non-stress Polarizing Infinity Plan Objective (Transmitting)
LPL 50x/0.70(S), W.D. 1.95mm Plan 4x/0.1, W.D. 10.0m
-- Plan 10x/0.25, W.D. 2.1mm
-- Plan 20x/0.40(S), W.D. 2.41mm
-- Plan 40x/0.65(S), W.D. 0.45mm
Stage Round Working Stage, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6‘
Condenser N.A.0.9/0.13, Swing Out Condenser
Focusing Coaxial Coarse and Fine Focusing Knob, Coarse Stroke 25mm, Fine Stroke 0.2mm/Rotation, Fine Division 2um
Polarizing -- Polarizer Unit Built-in Condenser, With Scale, Rotatable 360°, Can Be Locked
Polarizer Slide Insert To Reflecting Light
Analyzer Slider, Insert to Polarizing Media, Rotatable 360°, Module Type, Can Be Locked
Polarizing Media, Between Head & Body, Including Compensator:
--Bertrand Lens, Built-in, Center Adjustable
--λ Slip (First Class Red)
--λ/4 Slip
--Quartz Wedge I~IV Class Slip
Illumination -- Transmitting Light 6V20W Halogen Lamp, Kohler Illumination With Field Diaphragm, With Blue Filter
Reflecting Light 12V50W Halogen Lamp, With Field Diaphragm, Aperture Diaphragm
Power Wide Range Voltage 100~240V
Packing Carton Size 75x36x45cm, G/N Weight 18/13 Kgs

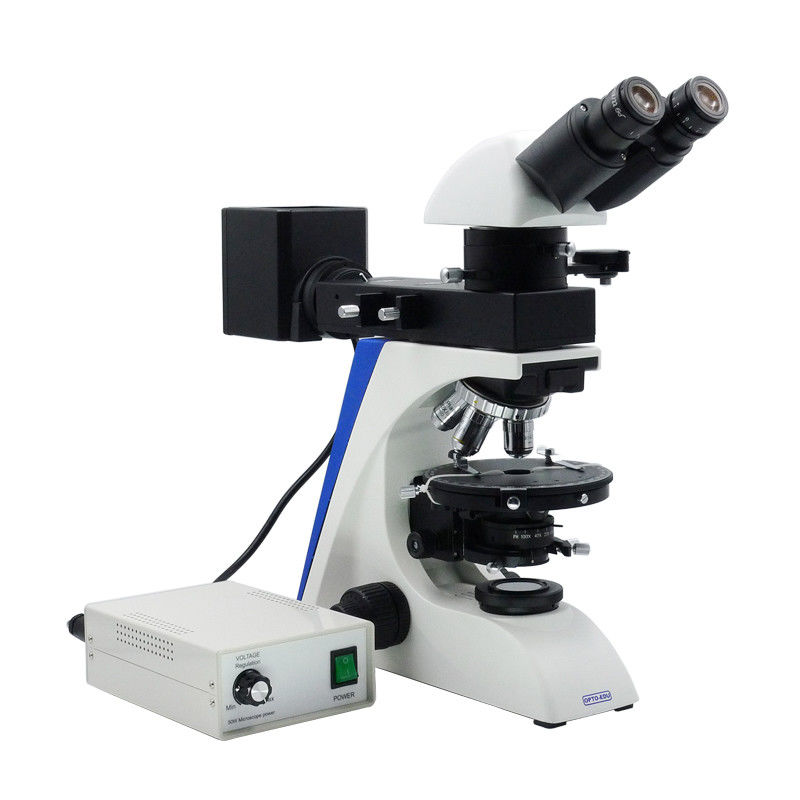

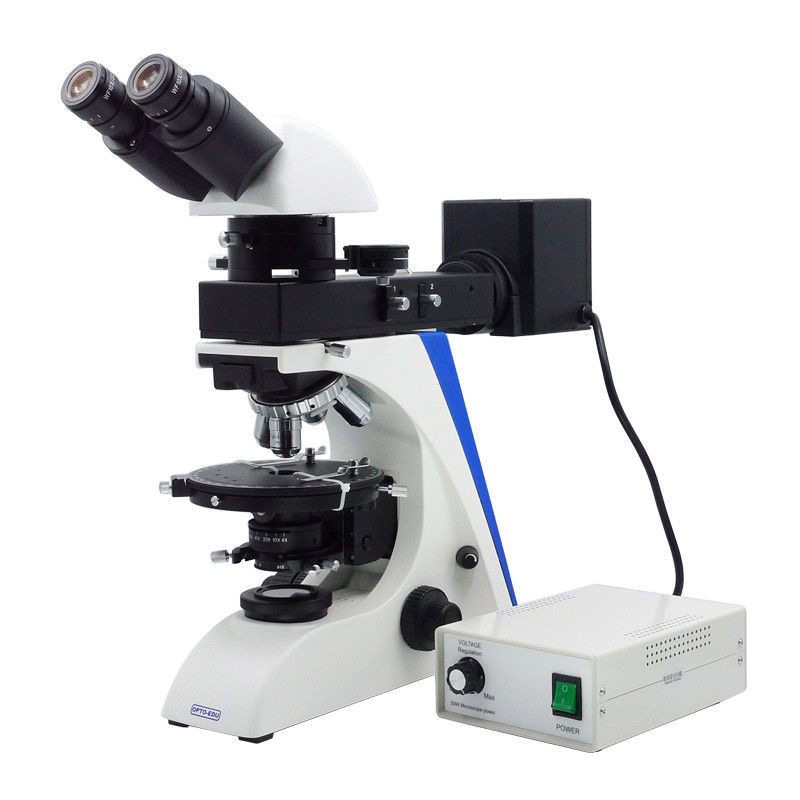

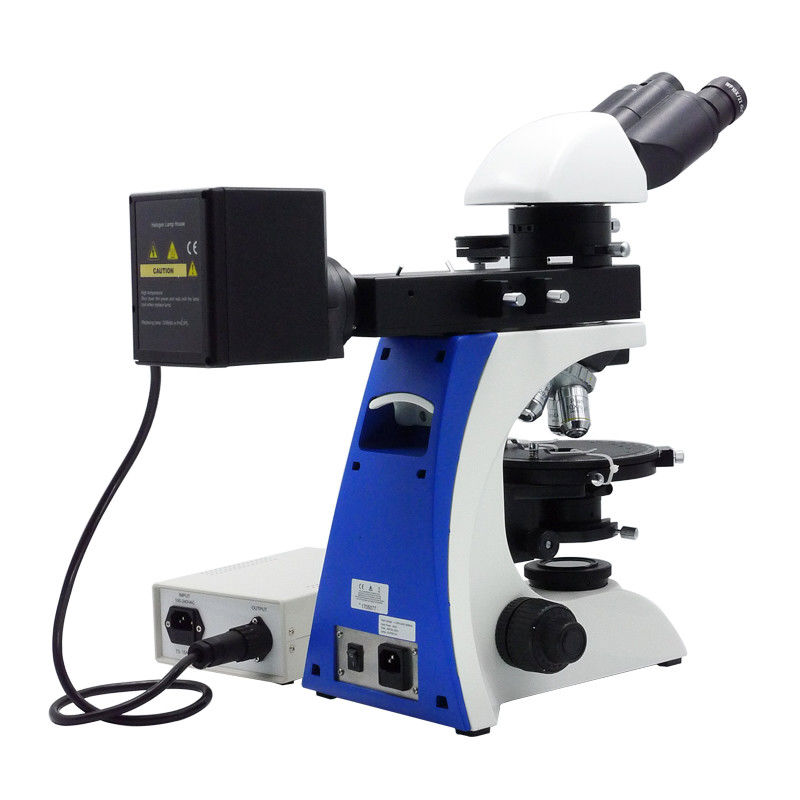

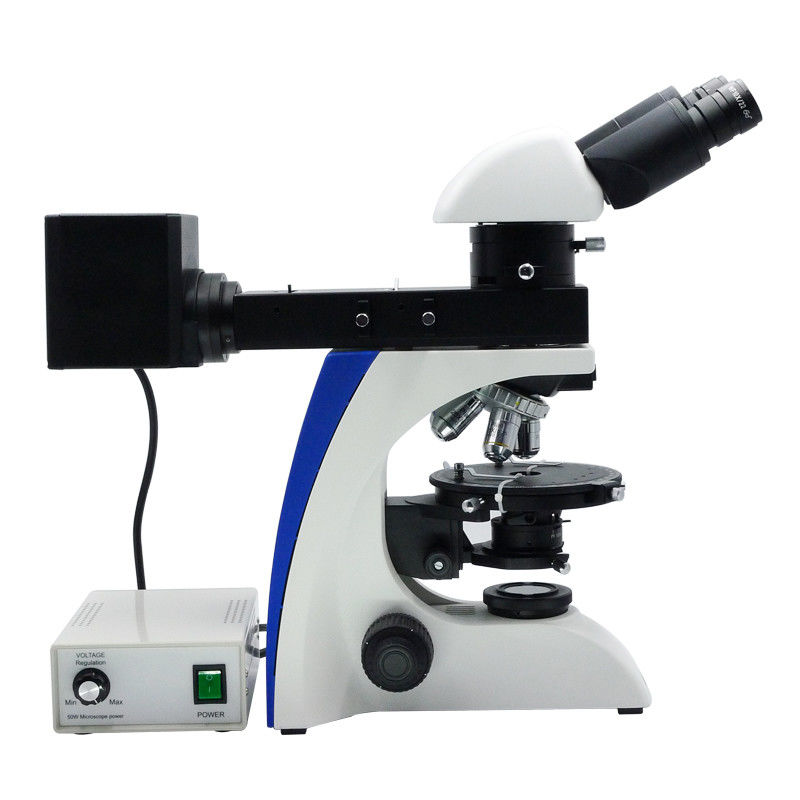

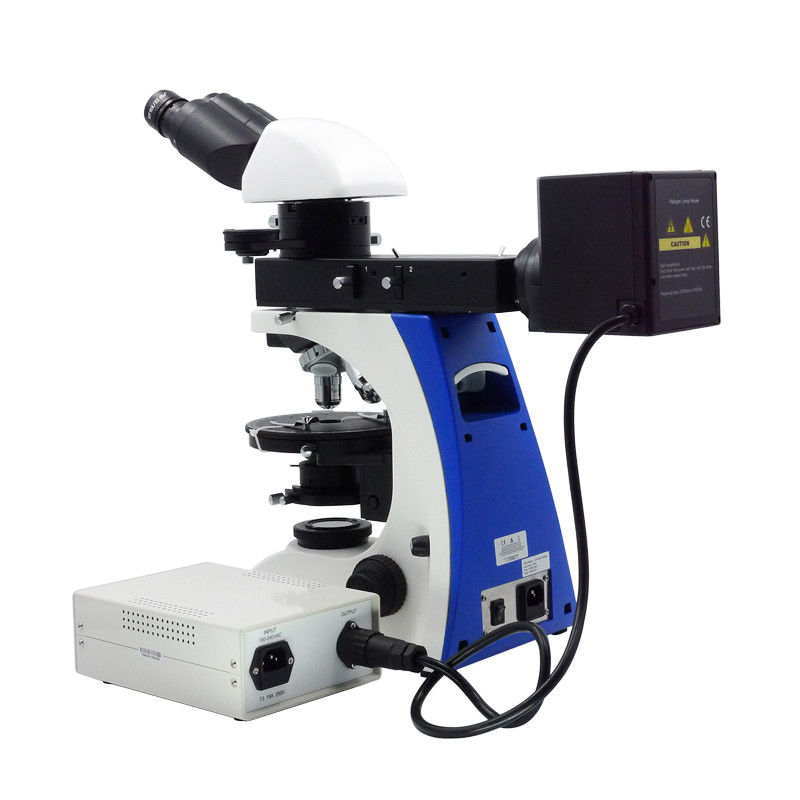

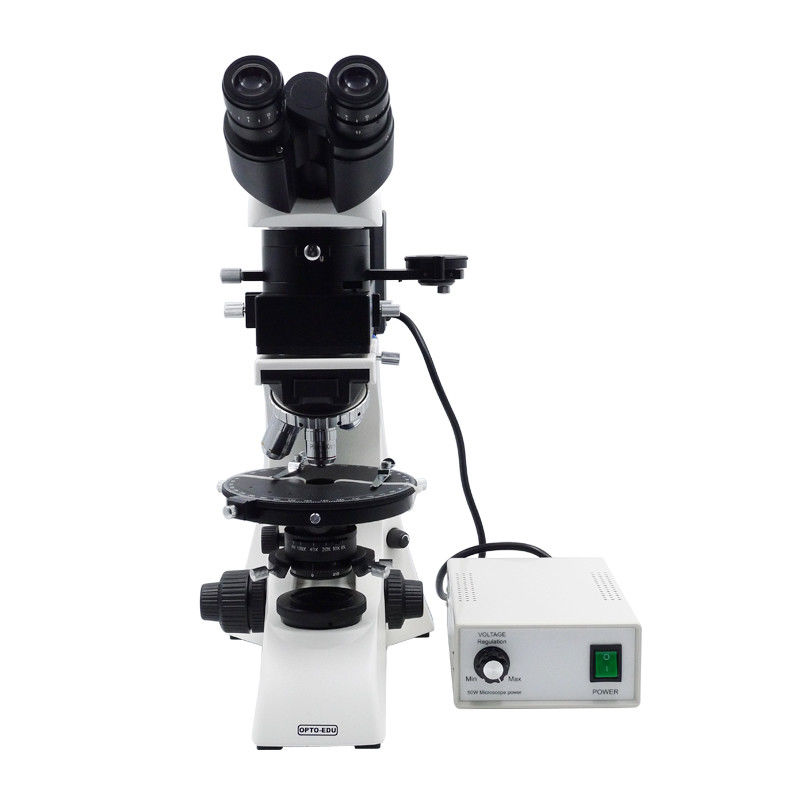

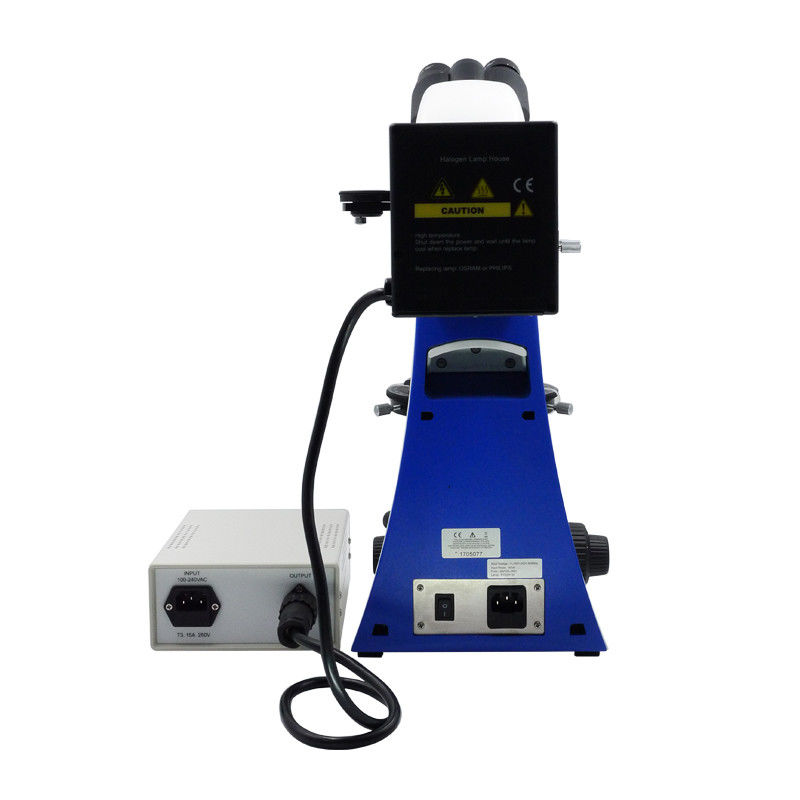

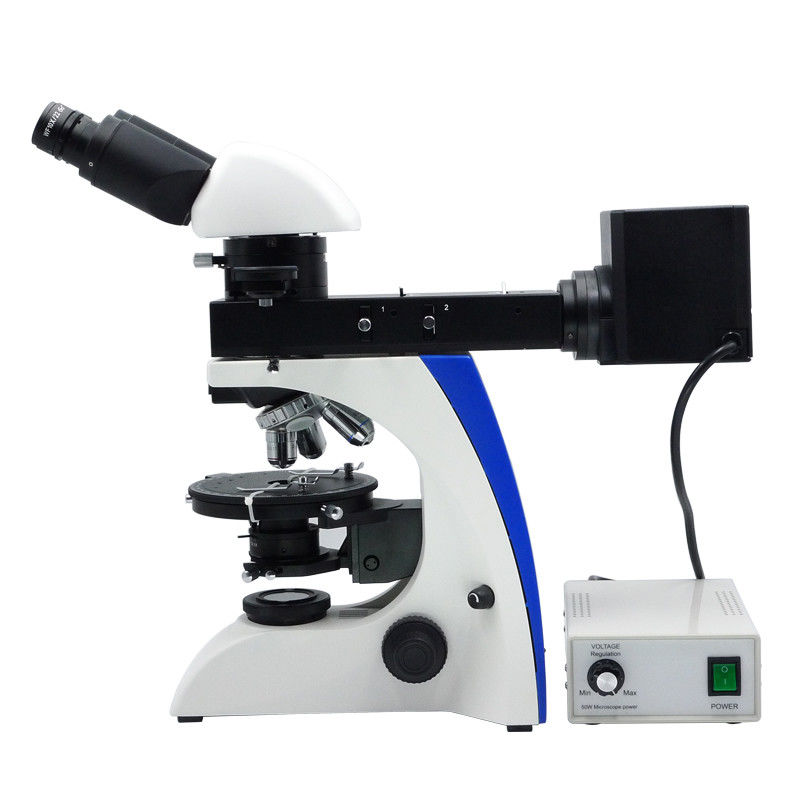

Product Display
A15.2602 Microscope Optional Accessories
Objective Non-stress Polarizing Infinity Plan Objective (Transmitting) A5P.2630-60
Plan 60X/0.80(S) W.D. 0.33mm
Non-stress Polarizing LWD Infinity Plan Objective (Reflecting) A52.2606-10L
LPL 10x/0.25, W.D. 18.48mm
Non-stress Polarizing LWD Infinity Plan Objective (Reflecting) A52.2606-20L
LPL 20x/0.40, W.D. 8.35mm
Non-stress Polarizing LWD Infinity Plan Objective (Reflecting) A52.2606-50L
LPL 50x/0.70(S), W.D. 1.95mm
Stage Attachable Polarizing Mechanical Stage, Moving Range 40x40mm A5P.2616
Attachable Polarizing Mechanical Stage, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens A5P.2616-1
Filter Amber A56.2616-A
Green A56.2616-G
Neutral A56.2616-N
Light Source Transmit Light Upgrade to 6V 30W Halogen Lamp A56.2650
Adapter 1.0x C-mount A55.2601-10
0.5x C-mount (Focus adjustable) A55.2601-05
For Digital Eyepiece Camera A55.2610


Product Details


Related Products


Product Application



A15.2602 series is a professional polarizing microscope with advanced multifunction. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.
