Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A16.2614
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Application: Research|Learning|Laboratory Certification: CE|Rohs
Drawtube: Binocular Illumination: Halogen Lamp
Magnification: 40X - 1600X Theory: Fluorescence Microscope
High Light:

epi-fluorescence microscope

,

inverted fluorescence microscope

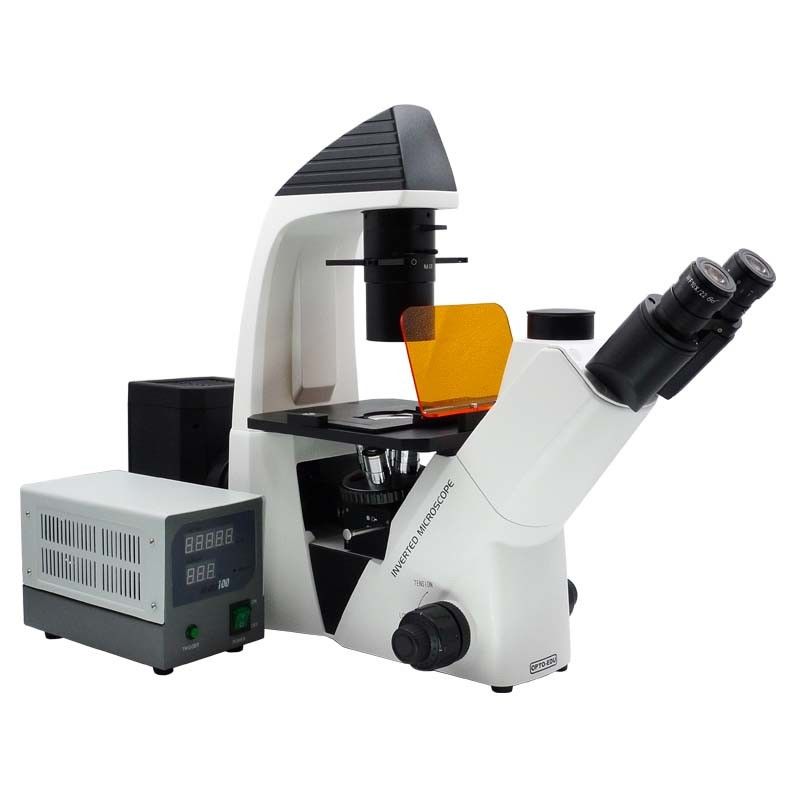

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 0

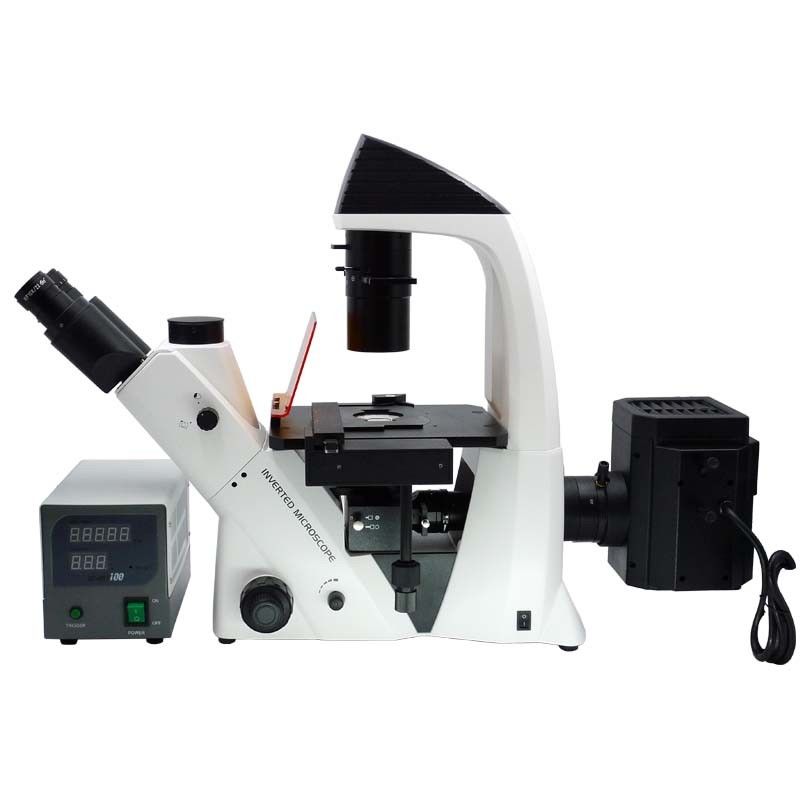

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 1

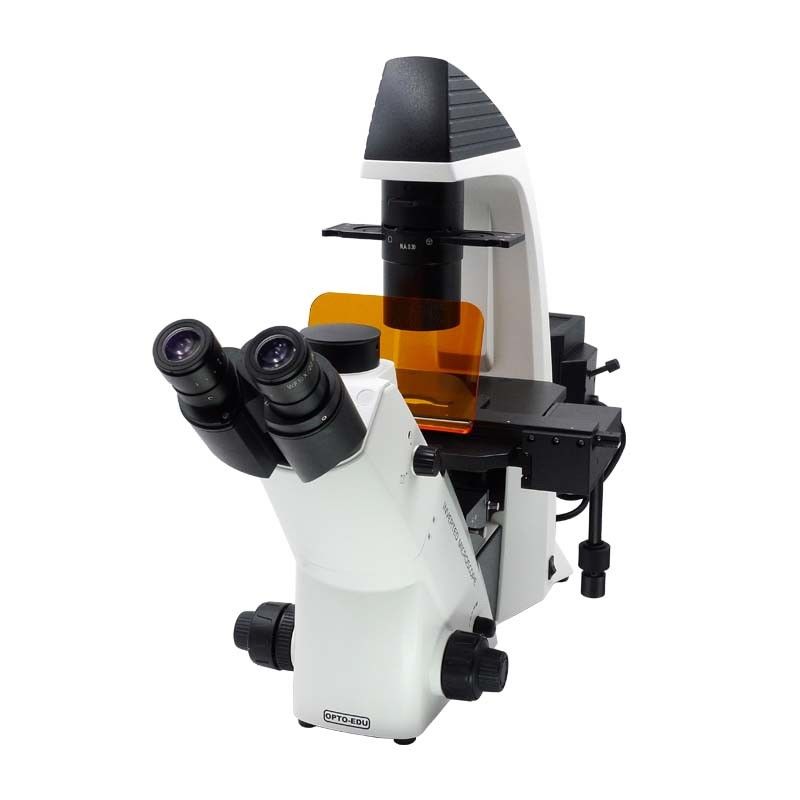

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 2

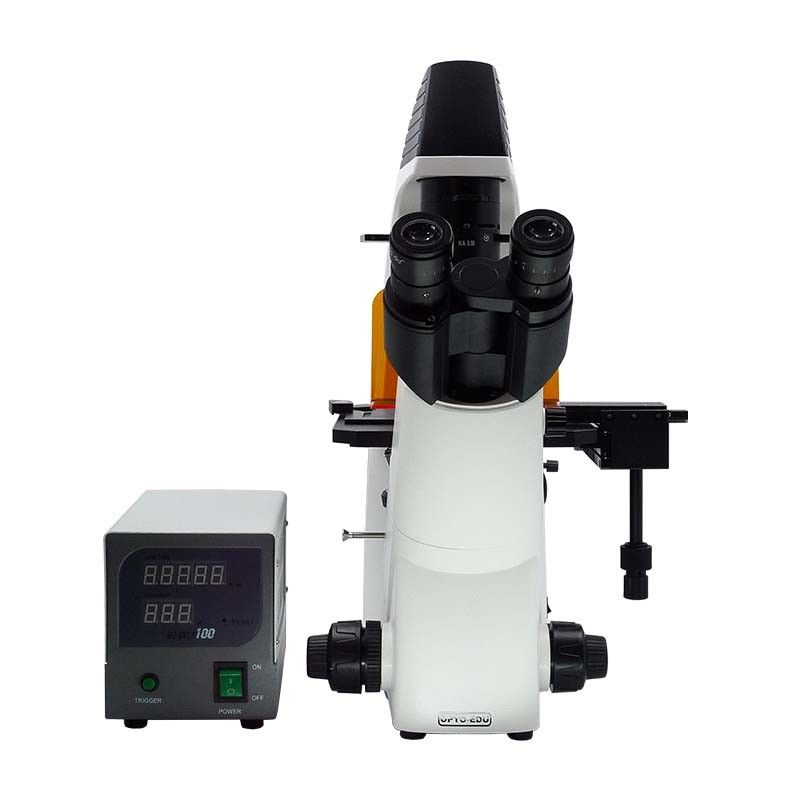

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 3
Head & Eyepiece
Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

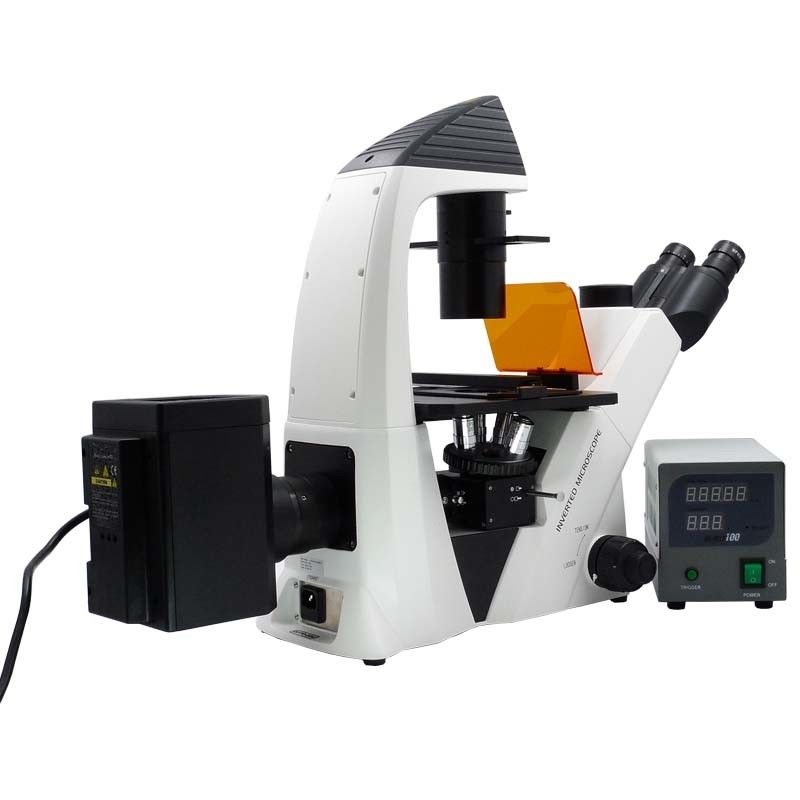

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 4

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 5
Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm
Koehler Illumination Halogen 6V/30W For A14.2603
Koehler Illumination 5W LED For A14.2603-TR

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 6
Long Working Distance
Working Distance 72mm (With Condenser), 195mm (Without Condenser)

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 7
Objectives
LWD Infinity Plan Fluorescent Objectives 10x, 20x, 40x
LWD Infinity Plan Phase Contrast Fluorescent Objectives 20x

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 8
Working Stage
Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder  54mm

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 9
Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 10
A5F.2603 Epi Fluorescence Illumination
China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 11

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 12

Binocular Wide Field Fluorescence Microscopy A16.2614 40X - 1600X Magnification 13




Items A16.2614-L Inverted LED Fluorescent Microscope Specification -2 -4 Cata. No.
Head Seidentopf Trinocular Head Inclined 45°,  Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 A53.2643
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable ●● ●● A51.2621-1022
WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○○ ○○ A51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○○ ○○ A51.2621-2012
Nosepiece Quintuple A54.2610-N925
LWD Infinity Plan Objectives LPL 4x/0.11, W.D.=12.1mm A52.2609-4
LPL10x/0.25, W.D.=8.3mm A52.2609-10
LPL 20x/0.40, W.D.=7.2mm A52.2609-20
LPL 40x/0.60, W.D.=3.4mm A52.2609-40
LWD Infinity Plan Phase Contrast Objectives LPL Ph P  4x/0.10, W.D.=9.2mm A5C.2630-4
LPL Ph P 10x/0.25, W.D.=8.3mm A5C.2630-10
LPL Ph P 20x/0.40, W.D.=7.2mm A5C.2630-20
LPL Ph P 40x/0.60, W.D.=3.4mm A5C.2630-40
Phase Contrast  Centering Telescope 11x A5C.2610
Annular Spot 4x A5C.2611-4
Annular Spot 20x/ 40x A5C.2611-10
Annular Spot 10x A5C.2611-20/40
Working Stage Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm A54.2601-D4
Attached Mechanical Stage,  Available For 96 Holes Plate, Moving Range 128x80mm A54.2605
Culture Dish Holder  65mm A54.2606-65
Culture Dish Holder  54mm A54.2606-54
Culture Dish Holder  35mm A54.2606-35
Holder For Blood Cell Counter A54.2606-BC
Condenser Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser). A56.2614-D4
Illumination Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V A56.2613-30W
Koehler Illumination 5W LED, Input Voltage 100V~240V  A56.2651-5W
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually
A56.2660
Filter Blue, Dia.34mm A56.2616-34B
Green, Dia.34mm A56.2616-34G
Amber, Dia.34mm A56.2616-34A
Grey, Dia.34mm A56.2616-34N
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable A55.2601-10
Epi Fluorescence Illumination  Upgrade From A14.2603 Inverted Microscope With
B,G
China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc
A5F.2604-2
Upgrade From A14.2603 Inverted Microscope With
B,G,V,VU
China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G,V,VU Lamp Each 1 pc
A5F.2604-4
Package Packing Size: 660mmx590mmx325mm     Fluorescence Carton Size 520x470x235mm
Weight Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note: ""In Table Is Standard outfits, "" Is Optional Accessories.
