8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250

  • High Light

    microscope accessory

    ,

    parts of the microscope

  • Sensor
    1/2.86" Color CMOS
  • Pixel Size
    2.75μm*2.75μm
  • Max Resolution
    1920x1080, 2.0M Full HD Preview, 8.0M High Resolution Photo Capture
  • Definition
    FULL HD
  • White Balance
    Manual Operation
  • Memory Card
    TF Class10
  • Screen Size
    10.1"(1080p)
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.4250
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250

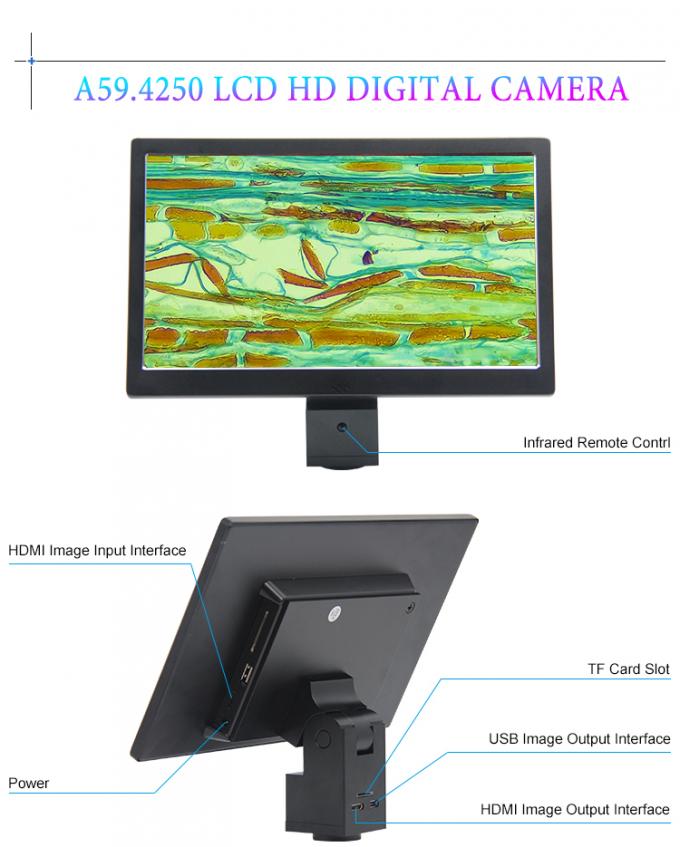

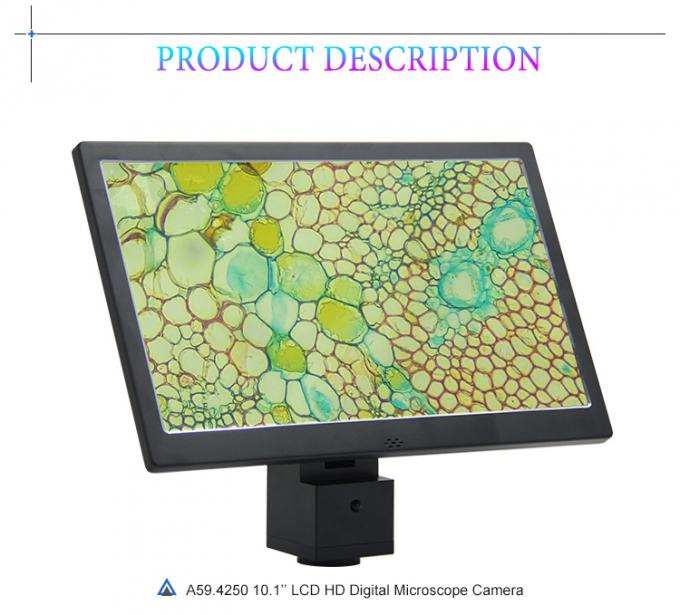

A59.4250 10.1’’ LCD HD Digital Microscope Camera Is Customized For The Development Of Microscopes, Used For Microsection And Other Observed Objects Collection, Display, Storage Integration Equipment. Pictures And Video Of The Collected Objects Can Be Retained. Including The Acquisition Side: HD HDMI Camera (1920*1080); Display Terminal: HD LCD Screen.

The System Is Designed For Medical And Industrial Fields Of New Product; Image Restoration Effect Is Good, Structured.

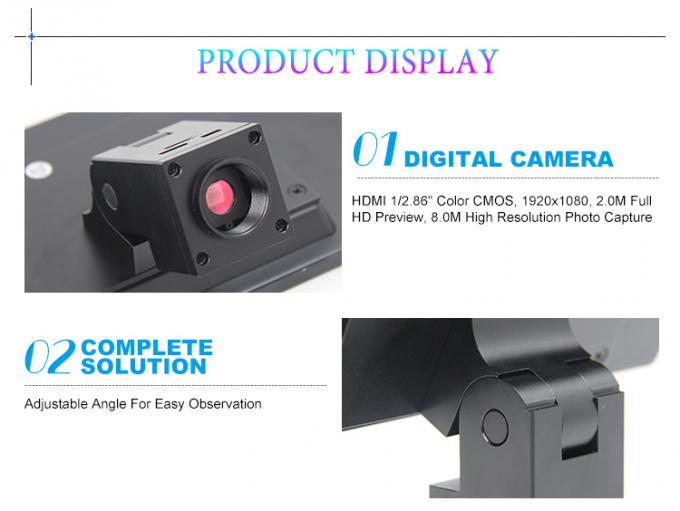

Through The 2mp (1080p) High-speed Transmission Camera, The High-speed Camera Used At The Acquisition End Has No Dragging And Delay, Which Brings The User A Sense Of Lightness And Pleasure, And Perfectly Presents The Picture Under The Microscope Objective On The System's Own Screen.

The Data Acquisition Terminal And The Screen Terminal Are Connected By HDMI Transmission, And Can Be Connected To The Large-screen Display Device According To The Actual Demand.

With Clear And Accurate Positioning Of The Center Cross Line.



Product Model A59.4250
Product Name Microscope HD Digital Display And Storage System
Screen Size 10.1"(1080p)
Sensor 1/2.86" Color CMOS
Pixel Size 2.75μm*2.75μm
Max Resolution 1920x1080, 2.0M Full HD Preview, 8.0M High Resolution Photo Capture
Definition FULL HD
White Balance Manual Operation
Memory Card TF Class10
Photo/Video Support
Cross Hair Support
Menu Brightness, Contrast, Saturation, RGB, Language Settings
Interface HDMI/USB2.0
Power DV-5V
Operating Temperature -10℃+50℃
Operating Humidity 10%~90%



8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 0

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 1

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 2

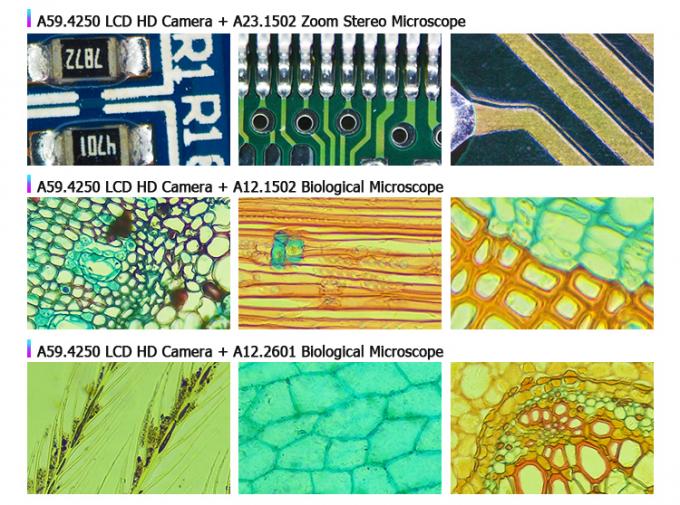

Application Scensrios
Biological Recognition Portrait Detection, Fingerprint, Palmprint Recognition, Lris Detection, Etc
Defect Elimination Test The Quality Of The Products
Accurate Measurement Area Measurement, Three-coordinate Measurement, Three-dimensional Scanning, Stereo Vision Measurement, Etc
Tracking Identification Qr Code, Commodity Code, Etc
Medical Reaearch Pathological Imaging, Microscopic Imaging, Specimen Collection, Etc

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 3

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 4

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 5

8.0M Microscope Accessories 10.1'' LCD HD Digital Microscope Camera A59.4250 6
