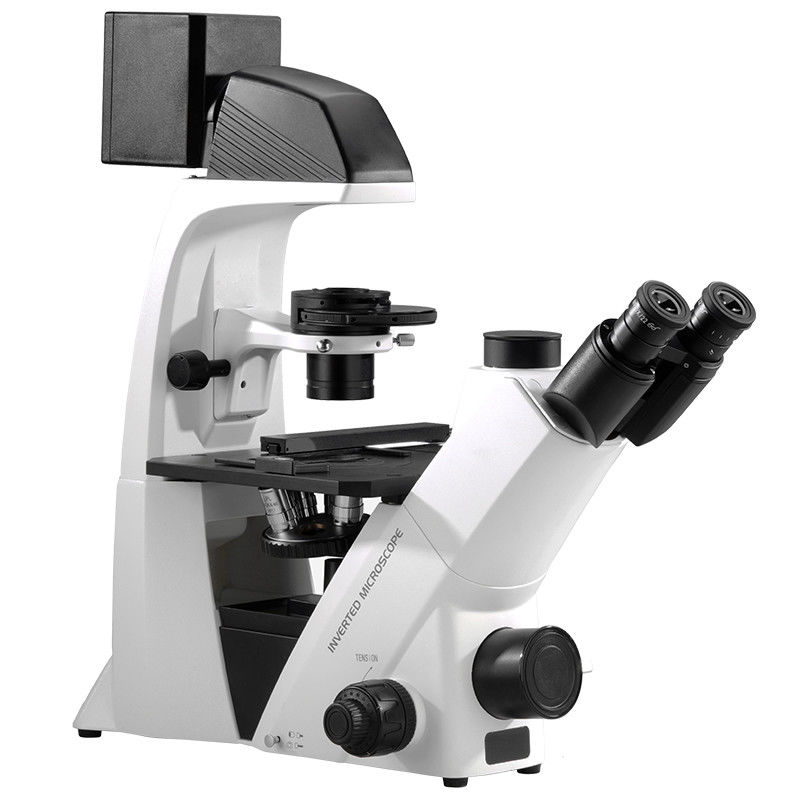

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A14.2605
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Eyepiece: WF10X/22mm Diopter Adjustable Annular Spot: 10x/20x/ 40x
Objectives: LWD Infinity Plan & LWD Infinity Plan Phase Contrast Objectives Seidentopf Trinocular Head: Inclined 45°, Interpupilary Distance: 48-76mm
Digital Photography C-mount: 100% Light For Photography Port Nosepiece: Quintuple
Mechanical Stage: Stage Size: XxY 210x241mm Culture Dish Holder: 54mm
Condenser: 4-hole Rotating Disc Phase Contrast Condenser Koehler Illumination: 12V/50W Halogen, Input Voltage:100V~240V
High Light:

inverted fluorescence microscope

,

inverted light microscope

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 0

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 1





Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 2

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 3

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 4

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 5
Head & Eyepiece
Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 6

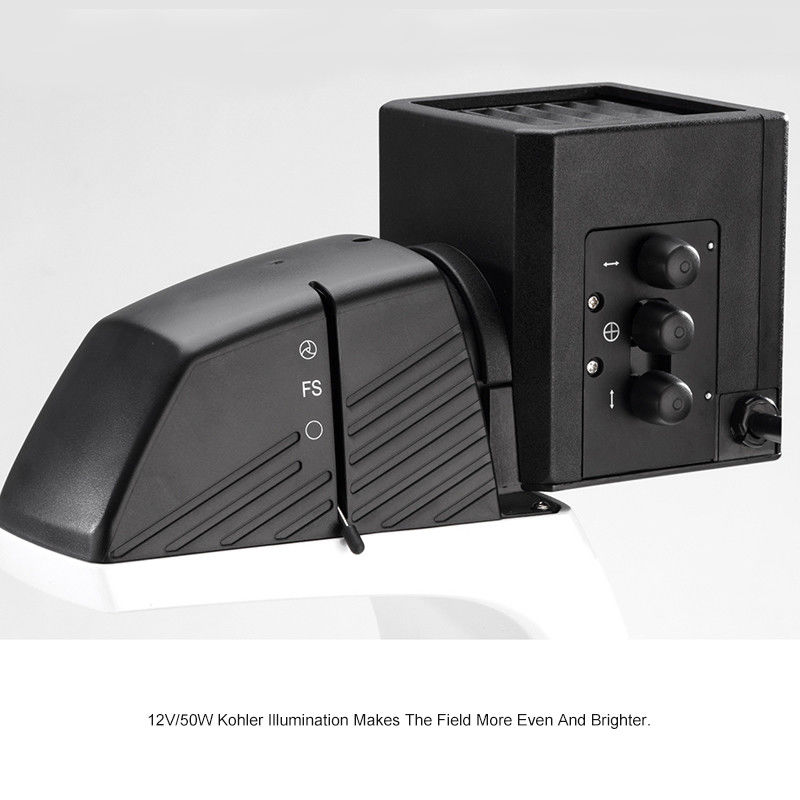

Reflect Light
Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 7

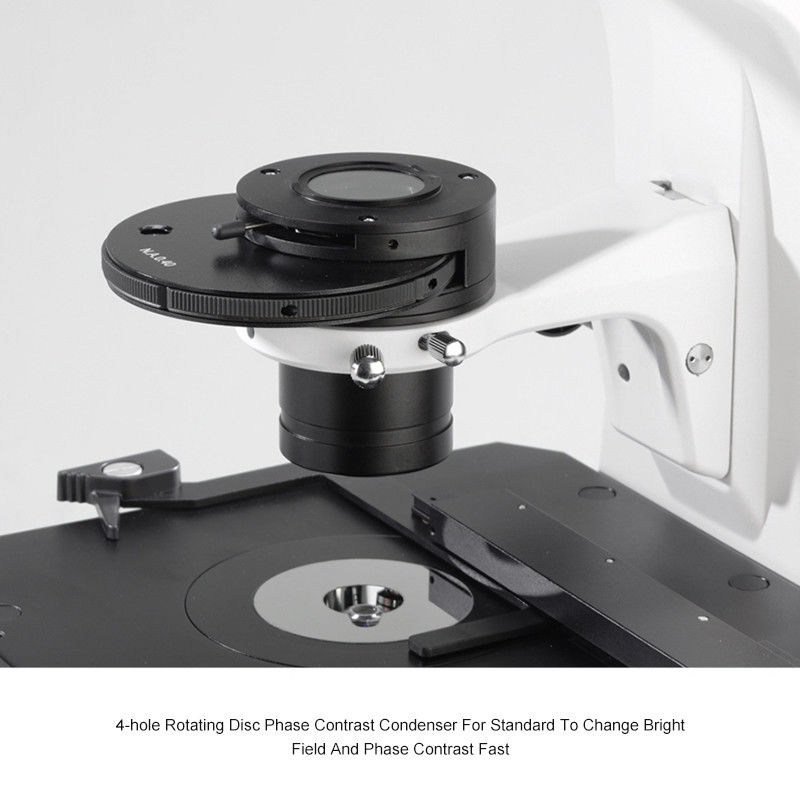

Condenser
4 Holes Rotating Disc Phase Contrast Condenser
N.A.0.4, W.D. 45mm, Up/Down Adjustable

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 8
Long Working Distance
Working Distance 72mm (With Condenser), 195mm (Without Condenser)

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 9
Objectives
LWD Infinity Plan Fluorescent Objectives 4x, LWD Infinity
Plan Phase Contrast Fluorescent Objectives 10x, 20x, 40x

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 10
Working Stage
Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder  54mm

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 11

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 12

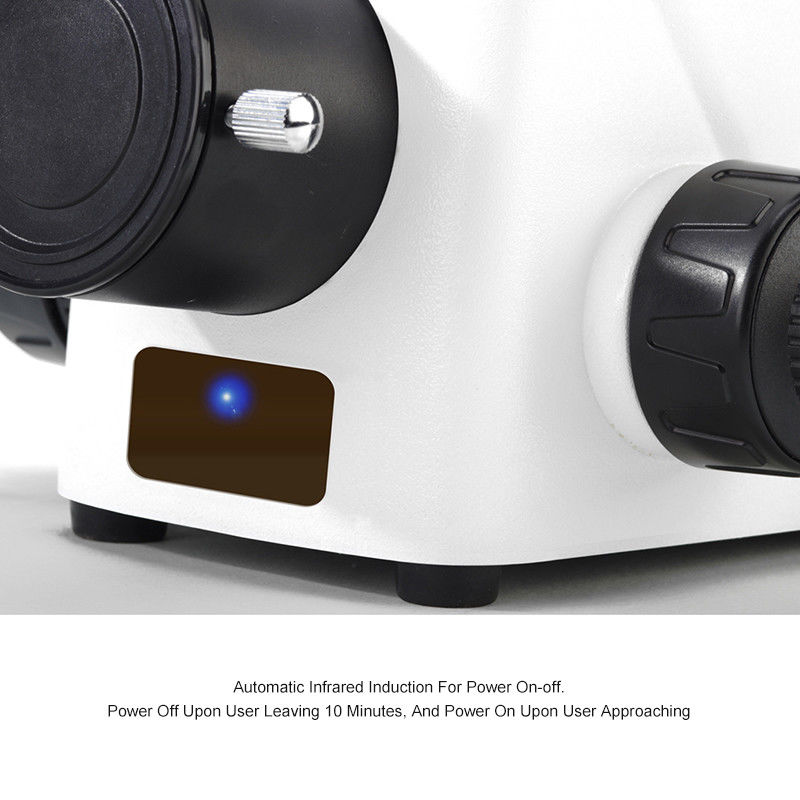

ECO, Auto Power Off System
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually

Trinocular Inverted Biological Microscope WF10X PlA14.2605 Kohler Illumination 13

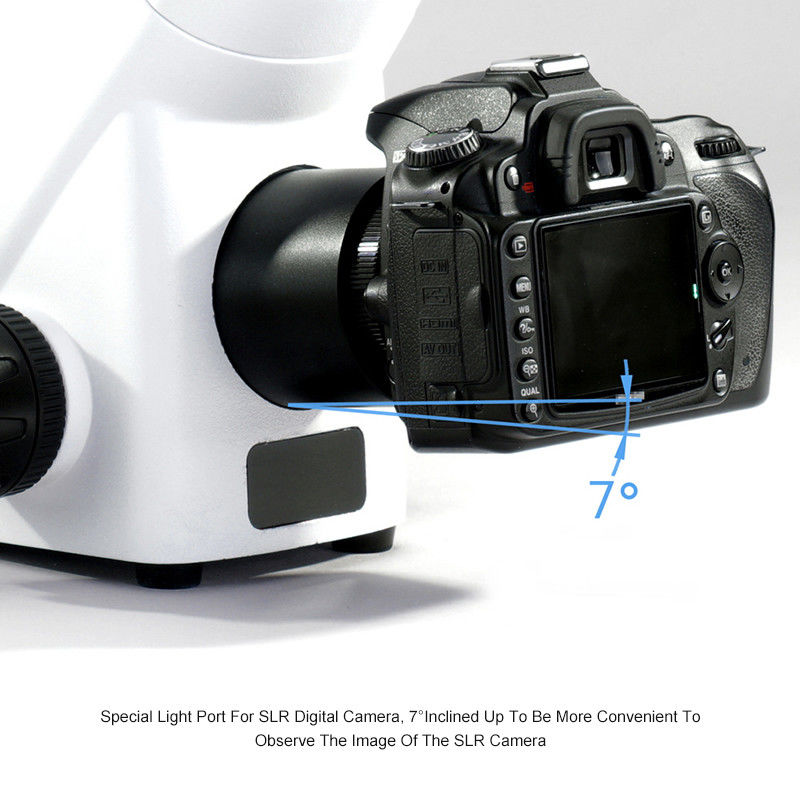

Adapter
Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
For Canon SLR Digital Camera

Items A14.2605 Inverted Biological Microscope Specification Cata. No.
A14.2605
Upgraded From
A14.2603
--Dual Photo & Video Channel System
--ECO Automatic Power Off System
--4 Holes Disc Phase Contrast Condenser
--Halogen 12V50W Koehler Illumnation

Head Seidentopf Trinocular Head Inclined 45°,  Interpupilary Distance 48~76mm, , Light Split Switch E100:P0 / E20:P80

Dual Photo & Video Channel Support Eyepiece View / Digital Camera/SLR Camera Take Picture & Record Video At Same Time:
--Eyepiece View Has 100% Or 20% Light Switchable
--Digital Camera Port Has 0% Or 80% Light Switchable
--Photography Port 100% Light For SLR Camera
(Standard Outfit Including SLR Camera Adapter 1pc)
A53.2643
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable ●● A51.2621-1022
WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○○ A51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○○ A51.2621-2012
Nosepiece Quintuple A54.2610-N925
LWD Infinity Plan Fluorescent Objectives
Newly Update 2021
L Plan FL 4x/0.11 W.D.=12.1mm A5F.2635-4
L Plan FL 10x/0.25 W.D.=10.3mm A5F.2635-10
L Plan FL 20x/0.45 W.D.=5.8mm A5F.2635-20
L Plan FL 40x/0.65 W.D.=5.1mm A5F.2635-40
LWD Infinity Plan Phase Contrast Fluorescent Objectives
Newly Update 2021
L Plan FL PHP 4x/0.10 W.D.=9.2mm A5C.2635-4
L Plan FL PHP 10x/0.25 W.D.=10.3mm A5C.2635-10
L Plan FL PHP 20x/0.45 W.D.=5.8mm A5C.2635-20
L Plan FL PHP 40x/0.65 W.D.=5.1mm A5C.2635-40
Phase Contrast  4 Holes Rotating Disc Phase Contrast Condenser
N.A.0.4, W.D. 45mm, Up/Down Adjustable
A56.2612
Centering Telescope 11x A5C.2610
Working Stage Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm A54.2601-D4
Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm A54.2605
Culture Dish Holder  65mm A54.2606-65
Culture Dish Holder  54mm A54.2606-54
Culture Dish Holder  35mm A54.2606-35
Holder For Blood Cell Counter A54.2606-BC
Universal Holder (New Accessory 2021) A54.2606-UH
Round Glass Holder (New Accessory 2021) A54.2606-GL
Illumination Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V A56.2613-50W
Koehler Illumination 5W LED, Input Voltage 100V~240V  A56.2651-5W
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually
A56.2660
Filter Blue, Dia.34mm A56.2616-34B
Green, Dia.34mm A56.2616-34G
Amber, Dia.34mm A56.2616-34A
Grey, Dia.34mm A56.2616-34N
Adapter Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
For Canon SLR Digital Camera
A55.2622-BC17
Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
For Nikon SLR Digital Camera
A55.2622-BN17
Photo Adapter With 2.5x Photo Eyepiece,100% Light For Camera Port,
For Canon SLR Digital Camera  With 1" CCD Sensor
A55.2622-BC25
Photo Adapter With 2.5x Photo Eyepiece,100% Light For Camera Port,
For Nikon SLR Digital Camera With 1" CCD Sensor
A55.2622-BN25
C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable A55.2601-10

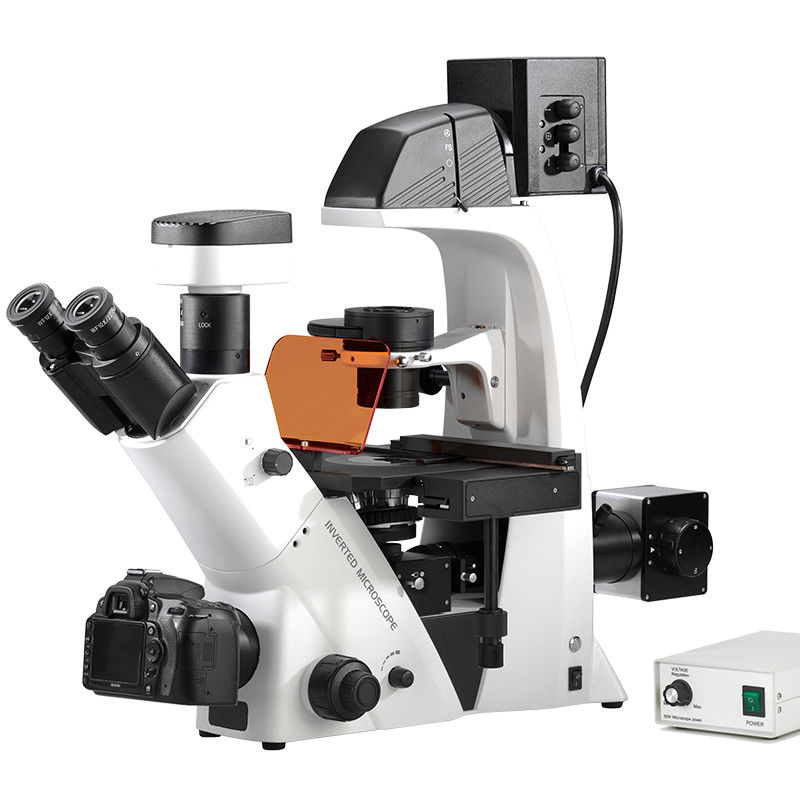

Fluorescence Upgrade to A16.2615-L2 Inverted Fluorescence Microscope With:
B,G China Fluorescent Filter
3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
A5F.2604-2
Upgrade to A16.2615-L4 Inverted Fluorescence Microscope With:
B,G,U,UV China Fluorescent Filter
3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
A5F.2604-4
Package Packing Size: 660mmx590mmx325mm
Weight Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note: ""In Table Is Standard outfits, "" Is Optional Accessories.
