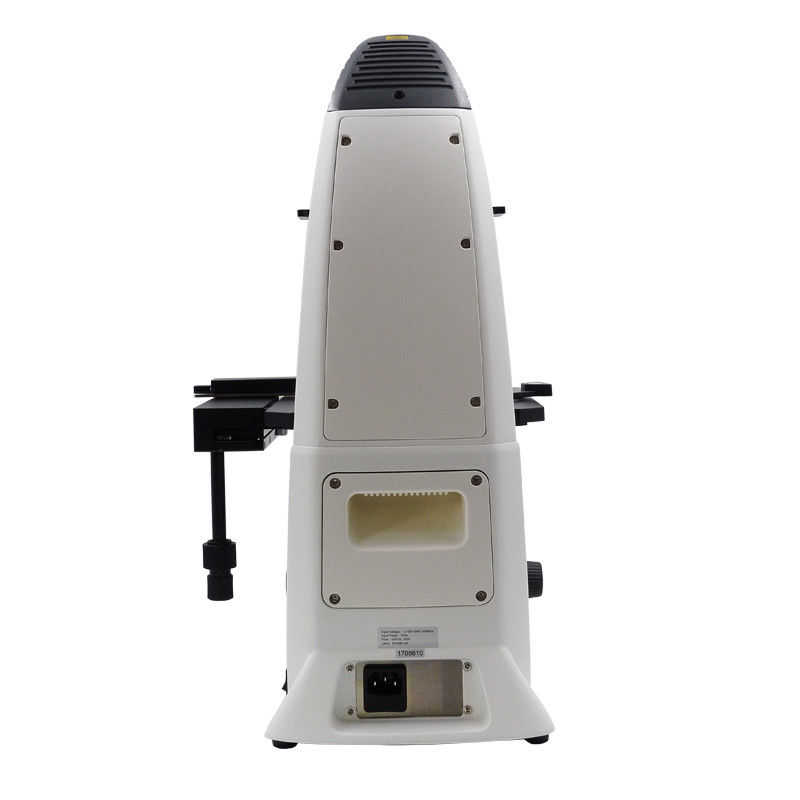

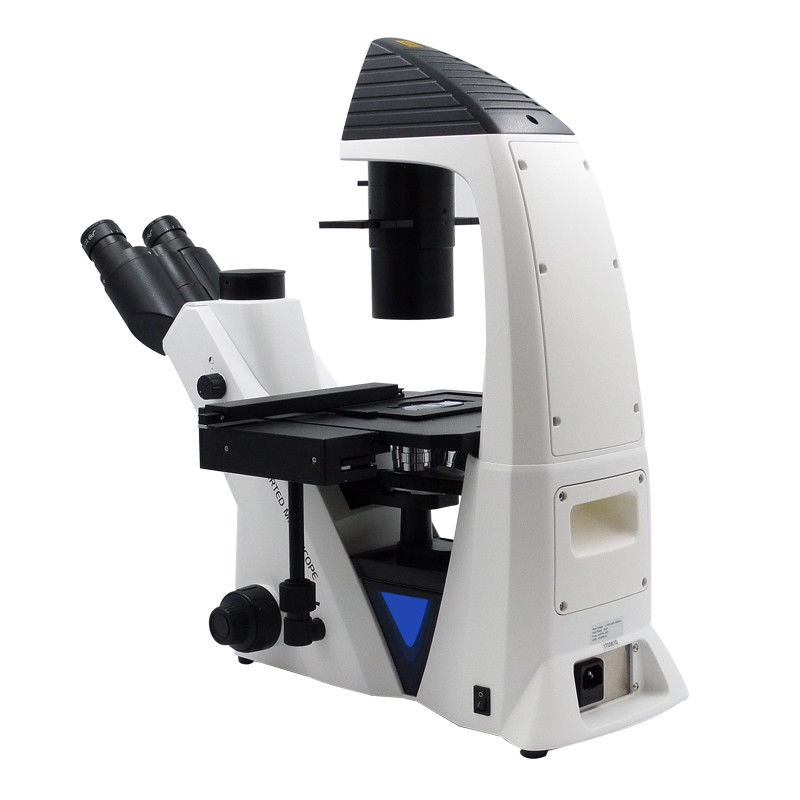

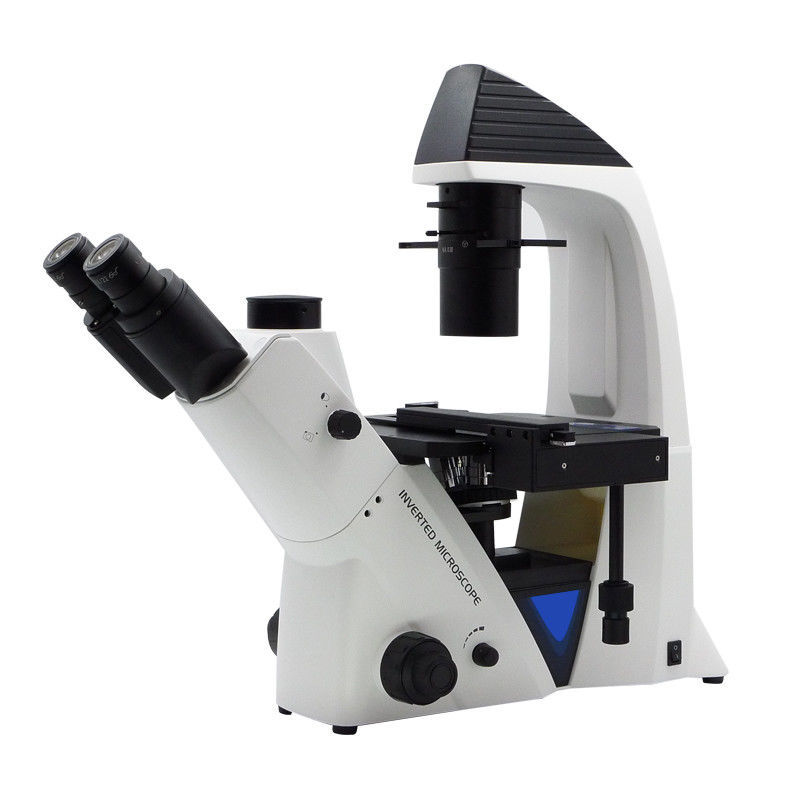

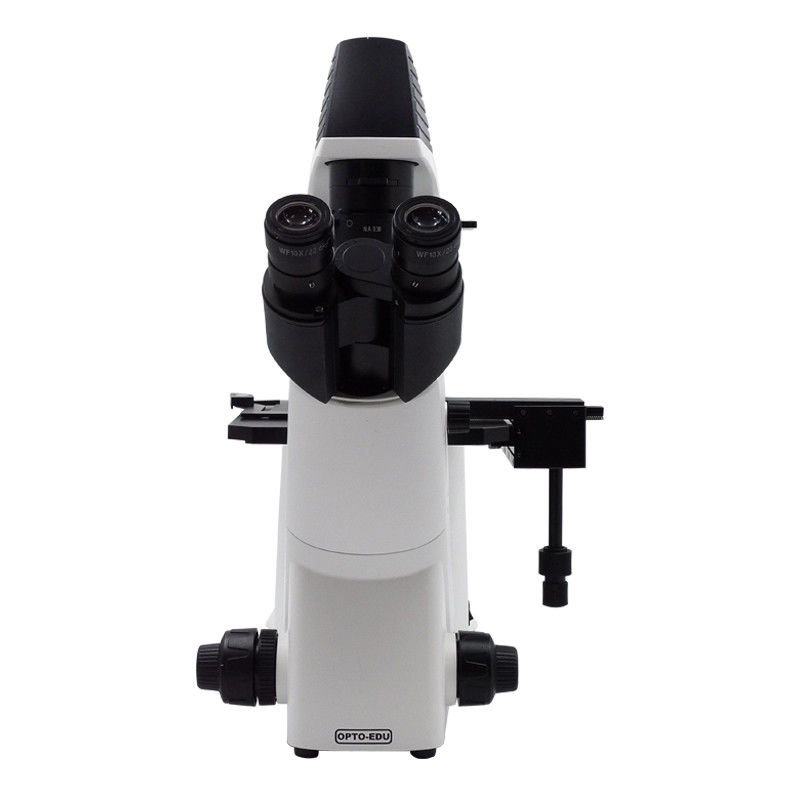

WF10x / 22mm Trinocular Inverted Biological Microscope A14.2603 Large Diameter Quintuple

High Light

inverted biological microscope
,
inverted fluorescence microscope
Head

Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 48~76mm
Eyepiece

WF10x/22mm, Diopter Adjustable
Nosepiece

Large Diameter Quintuple
Phase Contrast

Phase Contrast Annular Plate For 20x/40x
Filter

Blue, Green
Light Source

Transmit Light, Halogen 6V30W, Koehler Illumination
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A14.2603
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

WF10x / 22mm Trinocular Inverted Biological Microscope A14.2603 Large Diameter Quintuple

Name: WF10x / 22mm Trinocular Inverted Biological Microscope A14.2603 Large Diameter Quintuple
Brand: CNOEC, OPTO-EDU
SKU: A14.2603
Price: 1 USD
Availability: InStock
Rating: 4.6 (146 reviews)

button button

Get Price Contact Now

Head & Eyepiece
Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm
Koehler Illumination Halogen 6V/30W For A14.2603
Koehler Illumination 5W LED For A14.2603-TR

Long Working Distance
Working Distance 72mm (With Condenser), 195mm (Without Condenser)

Objectives
LWD Infinity Plan Fluorescent Objectives 10x, 20x, 40x
LWD Infinity Plan Phase Contrast Fluorescent Objectives 20x

Working Stage
Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder 54mm

3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Items	A14.2603 Inverted Biological Microscope	A14.2603	A14.2603-TR	Cata. No.
Head	Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●	A53.2643
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable	●●	●●	A51.2621-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	A51.2621-2012
Nosepiece	Quintuple	●	●	A54.2610-N925
LWD Infinity Plan Fluorescent Objectives Newly Update 2021	L Plan FL 4x/0.11 W.D.=12.1mm	○	○	A5F.2635-4
	L Plan FL 10x/0.25 W.D.=10.3mm	●	●	A5F.2635-10
	L Plan FL 20x/0.45 W.D.=5.8mm	●	●	A5F.2635-20
	L Plan FL 40x/0.65 W.D.=5.1mm	●	●	A5F.2635-40
LWD Infinity Plan Phase Contrast Fluorescent Objectives Newly Update 2021	L Plan FL PHP 4x/0.10 W.D.=9.2mm	○	○	A5C.2635-4
	L Plan FL PHP 10x/0.25 W.D.=10.3mm	○	○	A5C.2635-10
	L Plan FL PHP 20x/0.45 W.D.=5.8mm	●	●	A5C.2635-20
	L Plan FL PHP 40x/0.65 W.D.=5.1mm	○	○	A5C.2635-40
Phase Contrast	Centering Telescope 11x	○	○	A5C.2610
	Annular Spot 4x	○	○	A5C.2611-4
	Annular Spot 20x/ 40x	●	●	A5C.2611-10
	Annular Spot 10x	●	●	A5C.2611-20/40
Working Stage	Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm	●	●	A54.2601-D4
	Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm	○	○	A54.2605
	Culture Dish Holder 65mm	○	○	A54.2606-65
	Culture Dish Holder 54mm	●	●	A54.2606-54
	Culture Dish Holder 35mm	○	○	A54.2606-35
	Holder For Blood Cell Counter	○	○	A54.2606-BC
	Universal Holder (New Accessory 2021)	○	○	A54.2606-UH
	Round Glass Holder (New Accessory 2021)	○	○	A54.2606-GL
Condenser	Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).	●	●	A56.2614-D4
Tranmist Illumination	Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V	●	○	A56.2613-6V30W
Tranmist Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	●	A56.2651-5W
Reflect Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	-	●
Reflect Illumination	Polarizing Set		●
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	A56.2660
Filter	Blue, Dia.34mm	●	●	A56.2616-34B
	Green, Dia.34mm	●	●	A56.2616-34G
	Amber, Dia.34mm	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	A56.2616-34N
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	A55.2601-10
Epi Fluorescence Illumination	Upgrade to A16.2614-2 Inverted Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier	○	○	A5F.2603-2
	Upgrade to A16.2614-4 Inverted Fluorescence Microscope With: B,G,U,UV China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier	○	○	A5F.2603-4
	Upgrade to A16.2614-L2 Inverted Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	○	○	A5F.2604-2
	Upgrade to A16.2614-L4 Inverted Fluorescence Microscope With: B,G,U,UV China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	○	○	A5F.2604-4
Package	Packing Size: 660mmx590mmx325mm
Weight	Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
