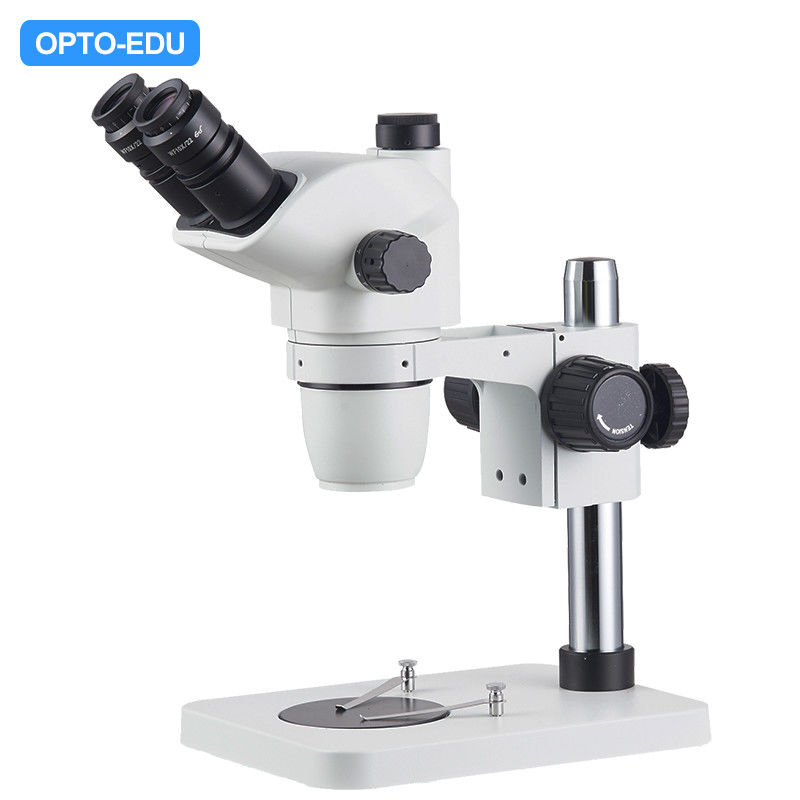

Pole Stand Stereo Zoom Microscopes Trinocular Magnification 6.7x - 45x

Pole Stand Stereo Zoom Microscopes Trinocular Magnification 6.7x - 45x

  • High Light

    stereo zoom microscopes

    ,

    stereo dissecting microscope

  • Eyepiece
    WF10x/20mm
  • Zoom Lens
    0.67~4.5x
  • Zoom Ratio
    1:6.5
  • Magnification
    6.7x-45x
  • Working Distance
    105mm
  • Stand
    Pole Stand, No Light Source
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.3667-B1T
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Pole Stand Stereo Zoom Microscopes Trinocular Magnification 6.7x - 45x

0.67-4.5x, Trinocular, WF10x/22, B1 Pole Stand + A1 Holder, Stand Size 200*255*22mm , Pole Height 240mm, Dia.32mm, No Light Source, Incl. Eyepiece Adapter

Pole Stand Stereo Zoom Microscopes Trinocular Magnification 6.7x - 45x 0

A23.3667-B1 Zoom Stereo Microscope Specification B T
Head Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm O

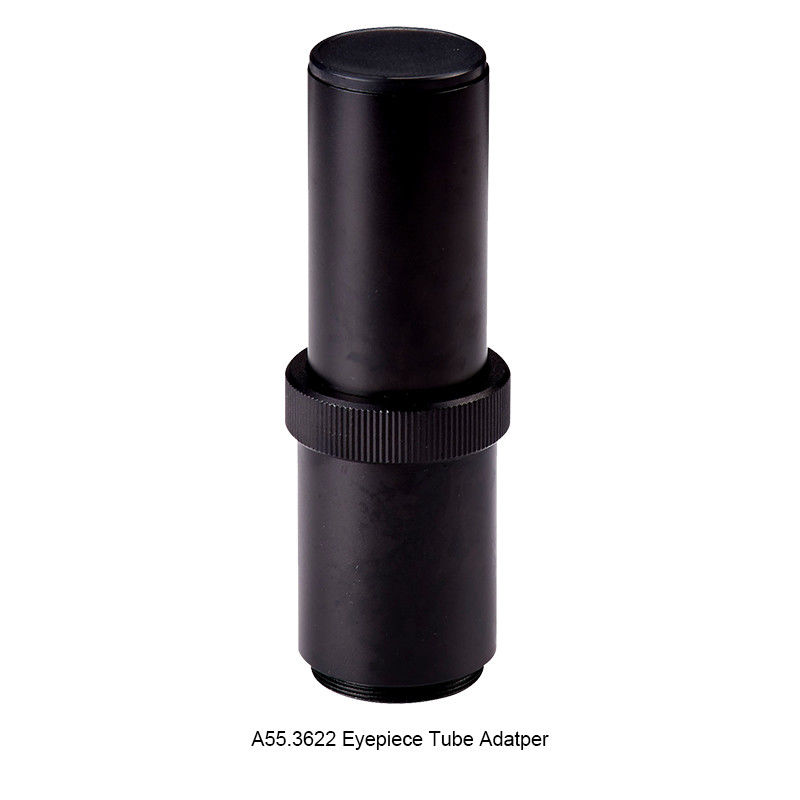

Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter   O
Eyepiece WF10x/20mm,Both with Eye-cup
Zoom Range 0.67~4.5x
Zoom Ratio 1:6.5
Magnification 6.7~45x
Working Distance 105mm
Stand Pole Stand, No Light Source

Optional Accessories Cata.No.
Head With WF10X eyepiece; 6.7-45x continuously adjustable A53.3667-B

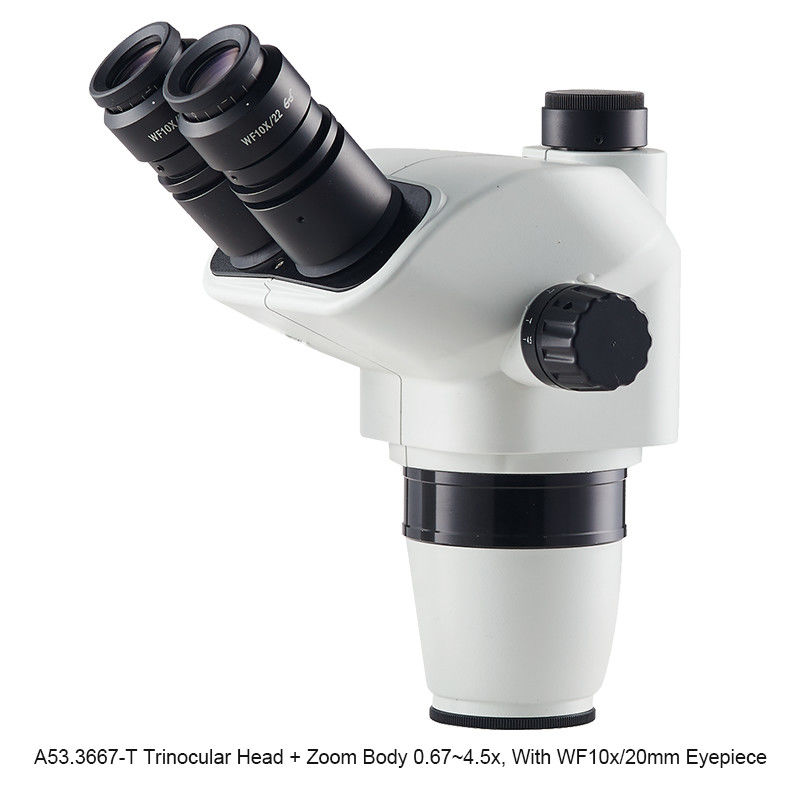

Trinocular With WF10X eyepiece; 6.7-45x continuously adjustable A53.3667-T
Eyepiece WF10x/20mm, High-eyepoint A51.3621-1020
WF10x/22mm, High-eyepoint A51.3621-1022
WF10x/23mm, High-eyepoint A51.3621-1023
WF15x/15mm, High-eyepoint A51.3621-1515
WF20x/10mm, High-eyepoint A51.3621-2010
WF25x/9mm, High-eyepoint A51.3621-2509
WF30x/8mm, High-eyepoint A51.3621-3008
WF10x/22mm, High-eyepoint, Diopter Adjustable A51.3622-1022
WF15x/15mm, High-eyepoint, Diopter Adjustable A51.3622-1515
WF20x/10mm, High-eyepoint, Diopter Adjustable A51.3622-2010
WF25x/9mm, High-eyepoint, Diopter Adjustable A51.3622-2509
WF30x/8mm, High-eyepoint, Diopter Adjustable A51.3622-3008
Auxiliary Lens 0.3X,W.D. 287mm A52.3622-0.3x
0.5X,W.D. 177mm A52.3622-0.5x
0.7X,W.D. 113mm A52.3622-0.7x
0.75X,W.D. 116mm A52.3622-0.75x
1.5X,W.D. 47mm A52.3622-1.5x
2.0X,W.D. 26mm A52.3622-2.0x

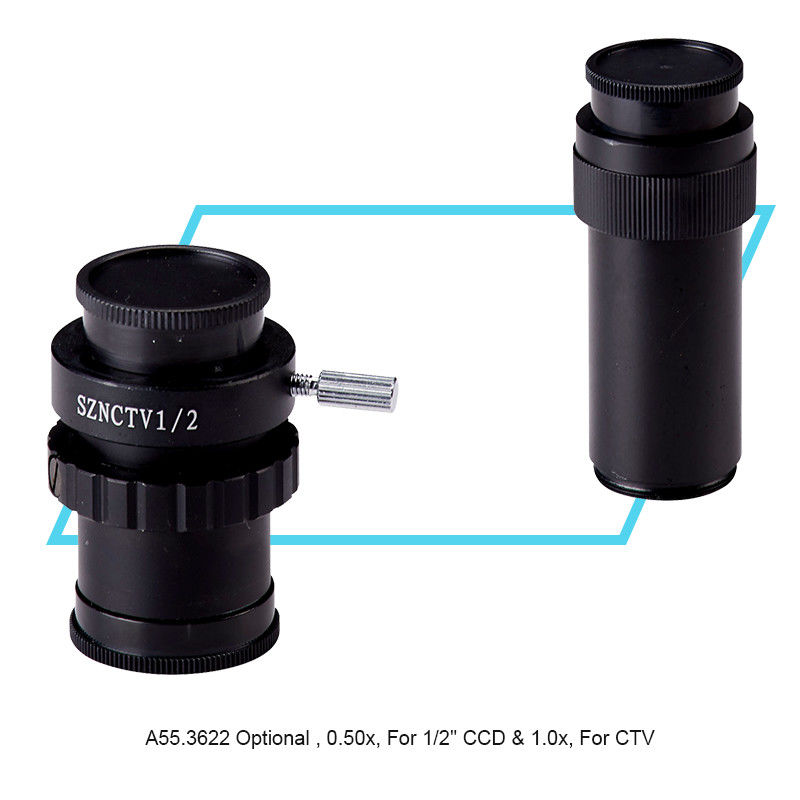

CCD Adapter 1.0x, For CTV A55.3622-1.0x
0.50x, For 1/2" CCD A55.3622-0.5x


Pole Stand Stereo Zoom Microscopes Trinocular Magnification 6.7x - 45x 1

A23.3667 Zoom Stereo Microscope Optical Data Sheet
Objective Standard 1.0x Auxiliary 0.5X Auxiliary 1.5X Auxiliary 2X
W,D. 100mm 165mm 45mm 30mm
Eyepiece Mag View Field Mag View Field Mag View Field Mag View Field
10X/20mm 7.0X 28.6mm 3.5X 57.1mm 10.5X 19mm 14X 14.3mm
45.0X 4.4mm 22.5X 8.9mm 67.5X 3mm 90X 2.2mm
15X/15mm 10.5X 21.1mm 5.25X 42.8mm 15.75X 14.3mm 21X 10.7mm
67.5X 3.3mm 33.75X 6.7mm 101.25X 2.2mm 135X 1.7mm
20X/10mm 14.0X 14.3mm 7.0X 28.6mm 21.0X 9.5mm 28X 7.1mm
90.0X 2.2mm 45.0X 4.4mm 135.0X 1.5mm 180X 1.1mm
