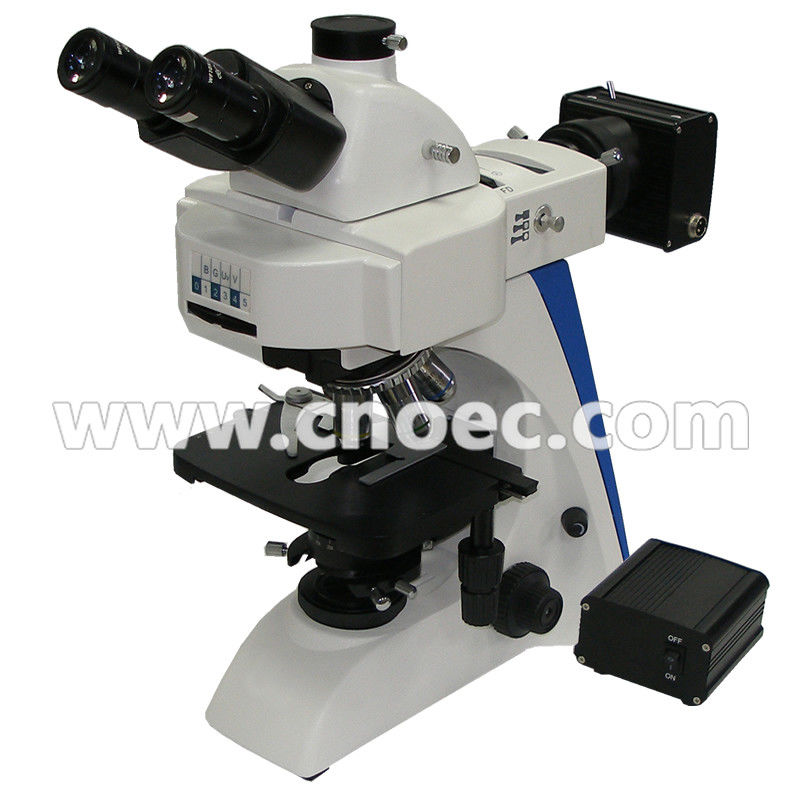

LED Fluorescence Light Microscope A16.2601-L
|
Specification
|
A16.2601-L-B2
|
A16.2601-L-T2
|
A16.2601-L-B4
|
A16.2601-L-T4
|
| Seidentopf Viewing Head |
Binocular
|
Trinocular |
Binocular
|
Trinocular
|
| 30° inclined, Interpupilary distance 50-75mm, For trinocular head, light distribution (binocular tube:photo tube): both 100:0 and 20:80 | 30° inclined, Interpupilary distance 50-75mm, For trinocular head, light distribution (binocular tube:photo tube): both 100:0 and 20:80 | |||
| Eyepiece | WF10x/20mm | |||
| Objective | Infinity Plan Achromatic Objective 4x / 0.10 | |||
| Infinity Plan Achromatic Objective 10x / 0.25 | ||||
| Infinity Plan Achromatic Objective 20x / 0.40(s) | ||||
| Infinity Plan Achromatic Objective 40x / 0.66(s) | ||||
| Infinity Plan Achromatic Objective 100x / 1.25(s, oil) | ||||
| Focusing System | Low positioned, coaxial coarse and fine focusing knobs | |||
| Nosepiece | Quintuple | |||
| Stage | Double layer mechanical, size 175x145mm, moving range 78x55mm, two slide holder | |||
| Condenser | Abbe N.A.1.25 with aperture iris diaphragm | |||
| Fluorescent Attachment |
Fluorescent Filter (B,G)
|
Fluorescent Filter (UV,V) are under development |
||
| Six-hole Disc Epi-Fluorescence Set | ||||
| 3W LED Lamp House | ||||
| 3W LED Power Supply | ||||
| Transmitted Illumination | Koehler, 6V20W Halogen Lamp With Brightness Adjustable | |||
| Filter | Blue | |||
| Power Supply | 100-240V, 50/60Hz | |||
| Packing | Carton, Size 99x34x40cm, G/N weight 23/20Kgs | |||
|
Optional Accessories
|
Item No.
|
|||
|---|---|---|---|---|
| Eyepiece | WF16x/13mm | A51.2602-16 | ||
| WF10x/18mm with pointer | A51.2604-10 | |||
| WF10x/20mm with micrometer 0.1mm/Div | A51.2605-10A | |||
| Objective | Infinity Plan Objectives 2.5x/0.07 | A52.2606-2.5 | ||
| Infinity Plan Objectives 60x/0.80(s) | A52.2606-60 | |||
| Light Source | Upgrade to 6V 30W | A56.2650 | ||
| LED Fluorescent Attachment | Chroma Filter, Wavelength 455nm Speically Used for Tuberculosis Inspection | A5F.2602-TB | ||
| Condenser | Swing out achromatic condenser N.A.0.9/0.13 | A56.2614-2 | ||
| Filter | green, | A56.2616-G | ||
| gray | A56.2616-N | |||
| yellow | A56.2616-Y | |||
| CCD Adapter | C-Mount 0.57x | A55.2601-BK057 | ||
| C-Mount 1.0x | A55.2601-BK10 | |||
| Digital Camera Adapter | For CANON digital camera | A55.2621 | ||
| For OLYMPUS digital camera | A55.2620 | |||
| For NIKON SLR digital camera | A55.2622-N | |||
| For SONY SLR digital camera | A55.2622-S | |||
| For Canon SLR digital camera | A55.2622-C | |||
