Halogen Lamp Metallurgical Optical Microscope

China Halogen Lamp Metallurgical Optical Microscope supplier
Halogen Lamp Metallurgical Optical Microscope supplier Halogen Lamp Metallurgical Optical Microscope supplier Halogen Lamp Metallurgical Optical Microscope supplier Halogen Lamp Metallurgical Optical Microscope supplier

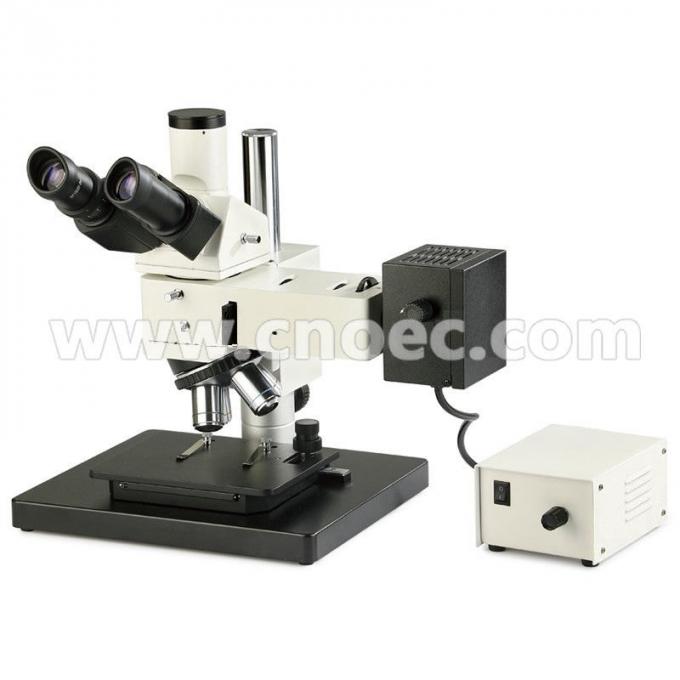

Large Image :  Halogen Lamp Metallurgical Optical Microscope

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.0212

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Research, Learning, Metallurgical Certification: CE, Rohs
Drawtube: Binocular Illumination: Halogen Lamp
Magnification: 50X - 500X Theory: Metallurgical Optical Microscope



Halogen Lamp Metallurgical Optical Microscope Cordless A13.0212



Description:



Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.





Specifications:



Specification
A13.0212 Metallurigical Microscope
A
B
Eyepiece
Wide field WF10X(field number:Φ22mm)
Infinity Plan Achromatic Objective
PL L5X/0.12  (Work distance):26.1 mm(Equipped with bright field objectives)

PL L10X/0.25  (Work distance):20.2 mm(Equipped with bright field objectives)

PL L20X/0.40  (Work distance):8.80 mm(Equipped with bright field objectives)

PL L50X/0.70  (Work distance):3.68 mm(Equipped with bright field objectives)

PL L5X/0.12 BD  (Work distance):9.70 mm(Equipped with bright & dark field objectives)
PL L10X/0.25 BD  (Work distance):9.30 mm(Equipped with bright & dark field objectives)
PL L20X/0.40 BD  (Work distance):7.23mm(Equipped with bright & dark field objectives)
PL L50X/0.70 BD  (Work distance):2.50 mm(Equipped with bright & dark field objectives)
Head
Trinocular inclined 30can be shot in 100% light flux.
Epi- illumination System
6V30W halogen and brightness enable control

12V50W halogen and brightness enable control

Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
Focus System
Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 1μm.
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage

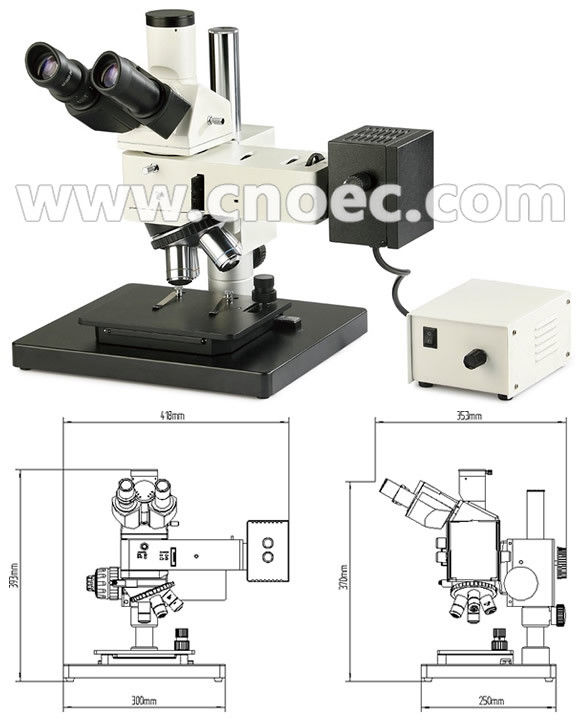

Base overall size:300mmX240mm
Mechanical stage overall size:185mmX140mm,moving range:Transersal :35mm,Longitudinal:30mm
Optional Accessories
Objective Dividing eyepiece(field number:Φ22mm)
A51.0205-G10B
Objective PL L40X/0.60 (Work distance):3.98 mm Equipped with bright field objectives
A5M.0213-40
PL L60X/0.75 (Work distance):3.18 mm
A5M.0213-60
PL L80X/0.80 (Work distance):1.25 mm
A5M.0213-80
PL L100X/0.85Work distance:0.4mm
A5M.0213-100
PL L40X/0.75 BD (Work distance):3.04 mm Equipped with bright & dark field objectives
A5M.0215-40
PL L60X/0.75 BD (Work distance):1.90 mm
A5M.0215-60
PL L80X/0.80 BD (Work distance):0.80mm
A5M.0215-80
PL L100X/0.85 BD (Work distance):0.22 mm
A5M.0215-100
CCD Adapter 0.4X
A55.0202-1
0.5X
A55.0202-4
1X
A55.0202-2
DC Adapter
CANON(EF)  NIKON( F)
