OPTO-EDU 3.2x - 192x Binocular Forensic Comparison Microscope with LED Illumination for Student and School Applications

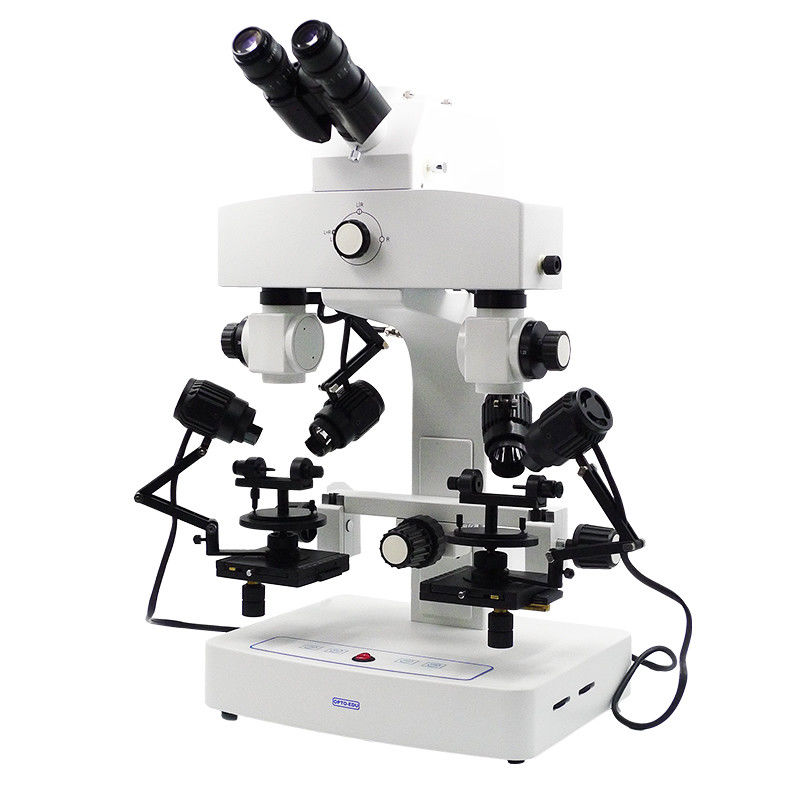

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825
Forensic Comparison Microscope
The A18.1825 comparison microscope, newly developed in 2013, is designed for forensic ballistics applications and education. This instrument provides students and professionals with a complete comparison microscope system at a competitive price point, featuring steady quality and full functionality.
Key Features
- Total Magnification: 3.8x~230x

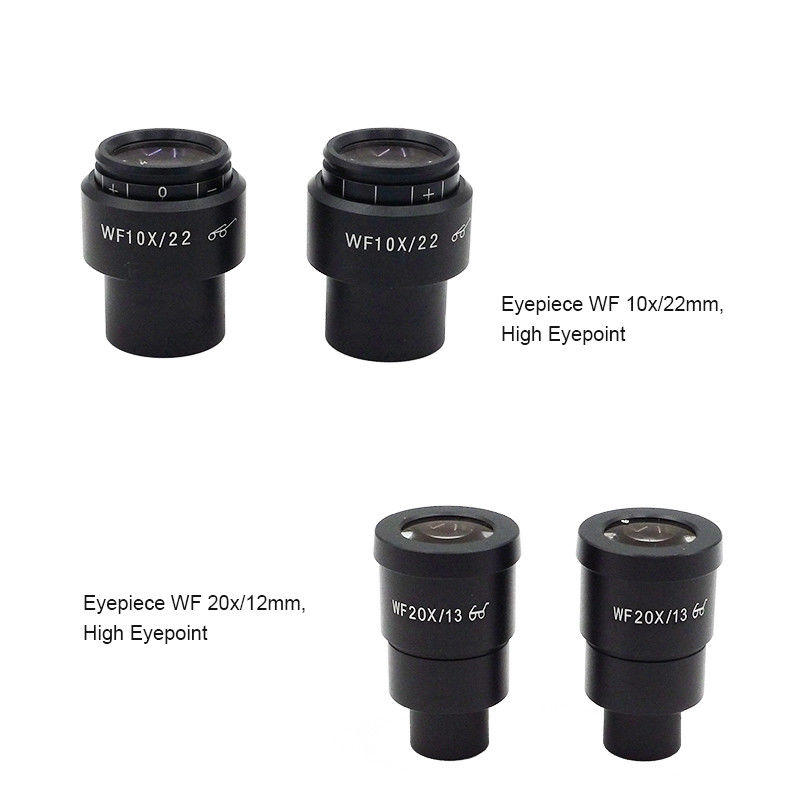

- Optical System: Wide Field Eyepiece WF10x/22mm, WF20x/12mm with High Eyepoint

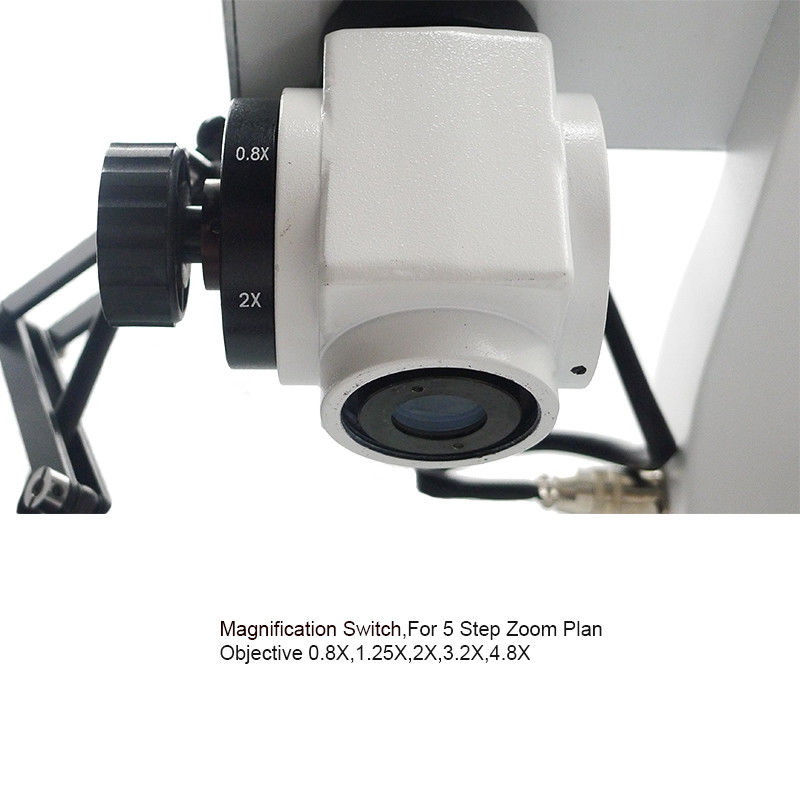

- Zoom Objective: 5 Step Zoom Plan Objective (0.8x, 1.25x, 2x, 3.2x, 4.8x)

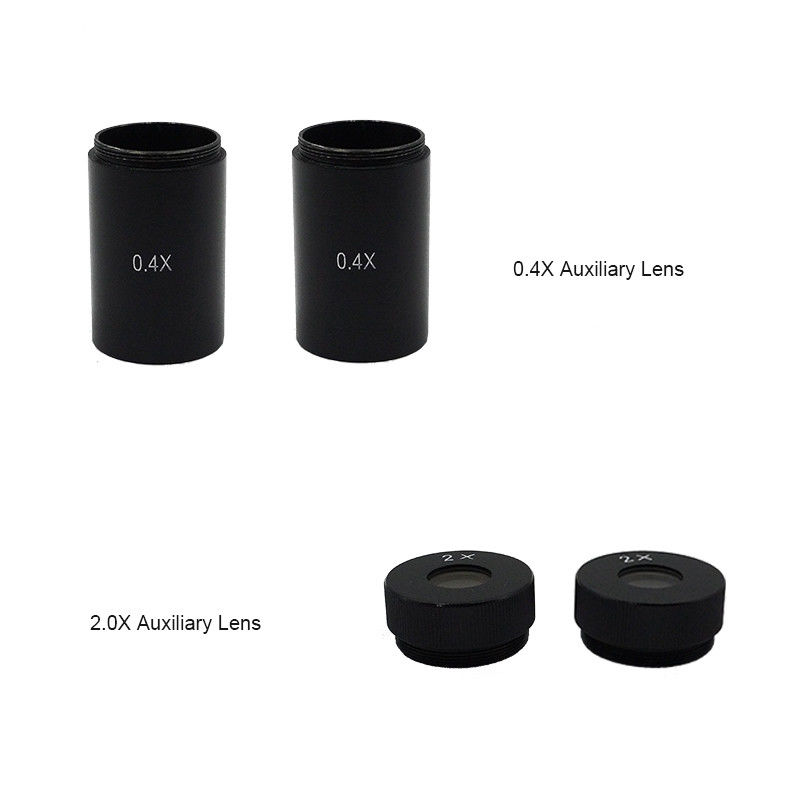

- Auxiliary Lenses: Includes 0.4x and 2.0x lenses
- Comparison Modes: Full left/right, split-image or overlapping image comparison

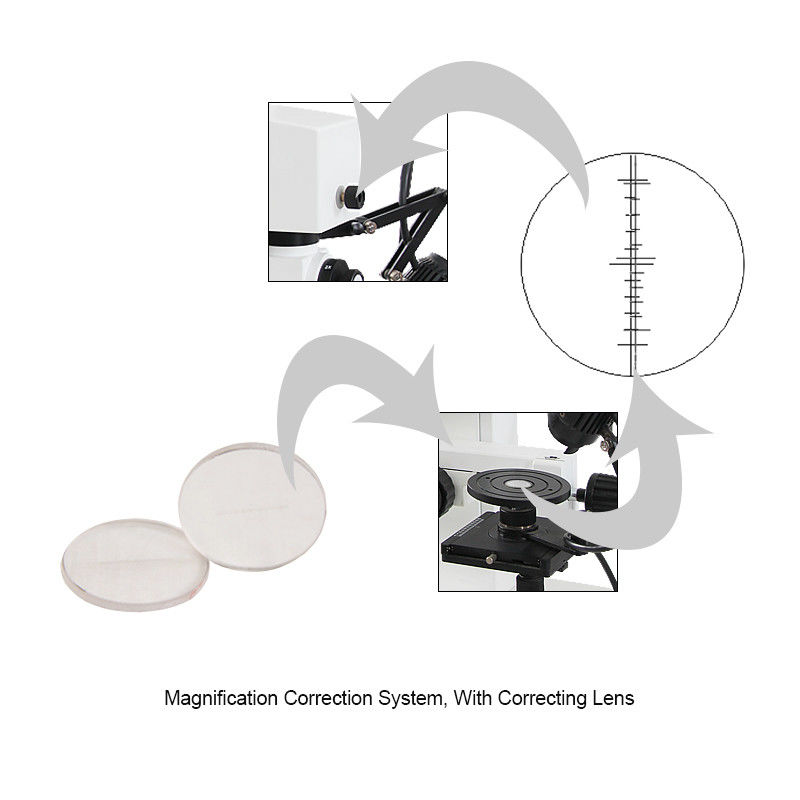

- Advanced Systems: Magnification Correcting System with Correcting Lens
- Adjustment: Separation Line Adjusting System with special metal adjust driver

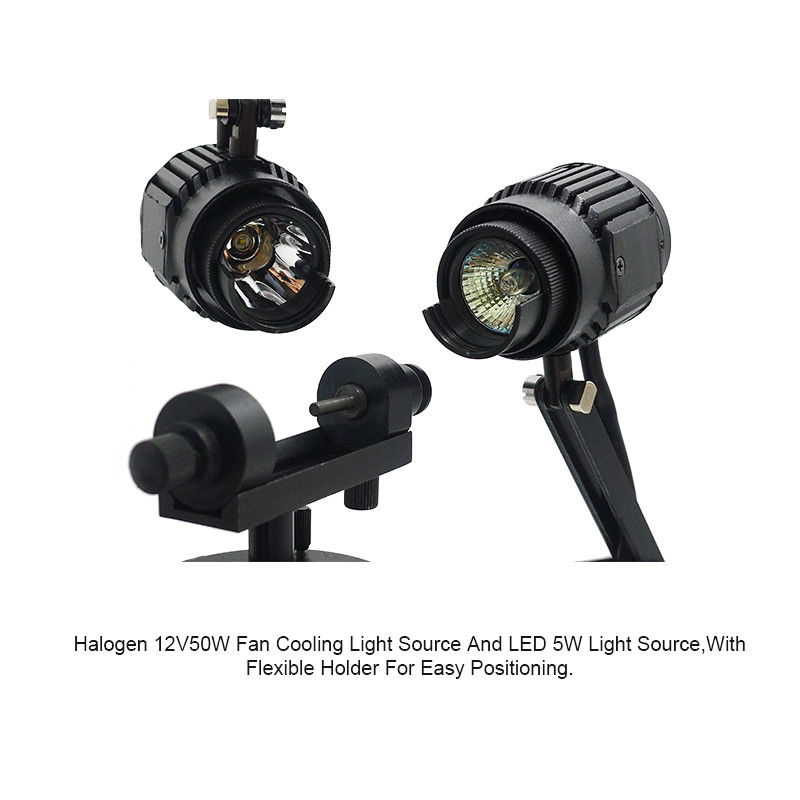

- Dual Lighting: 12V50W fan-cooled halogen light and 5W LED cold light, both adjustable
- Control Panel: Touch panel switch for separate or combined light source control

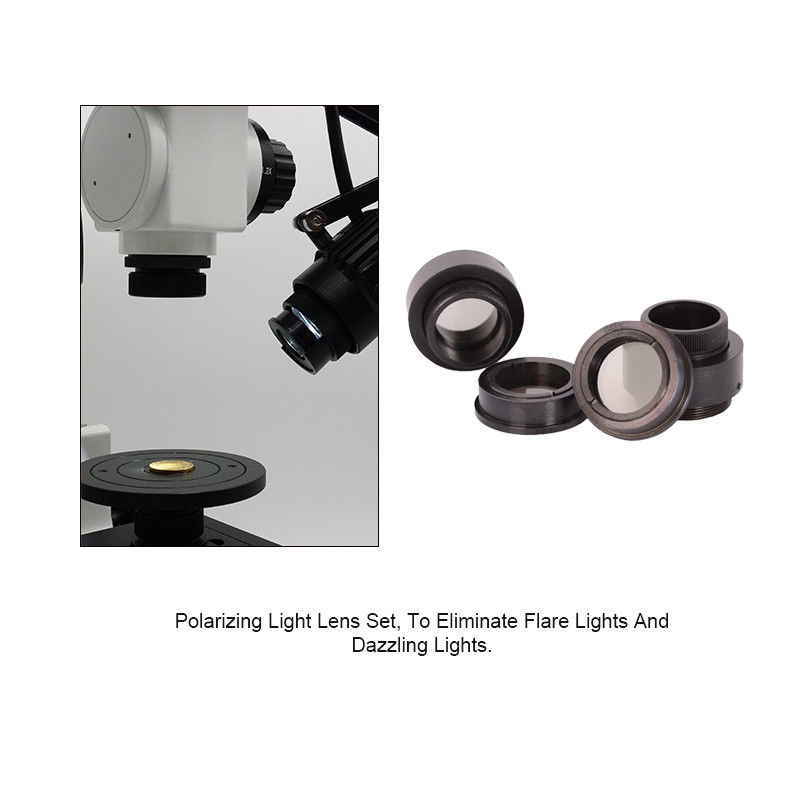

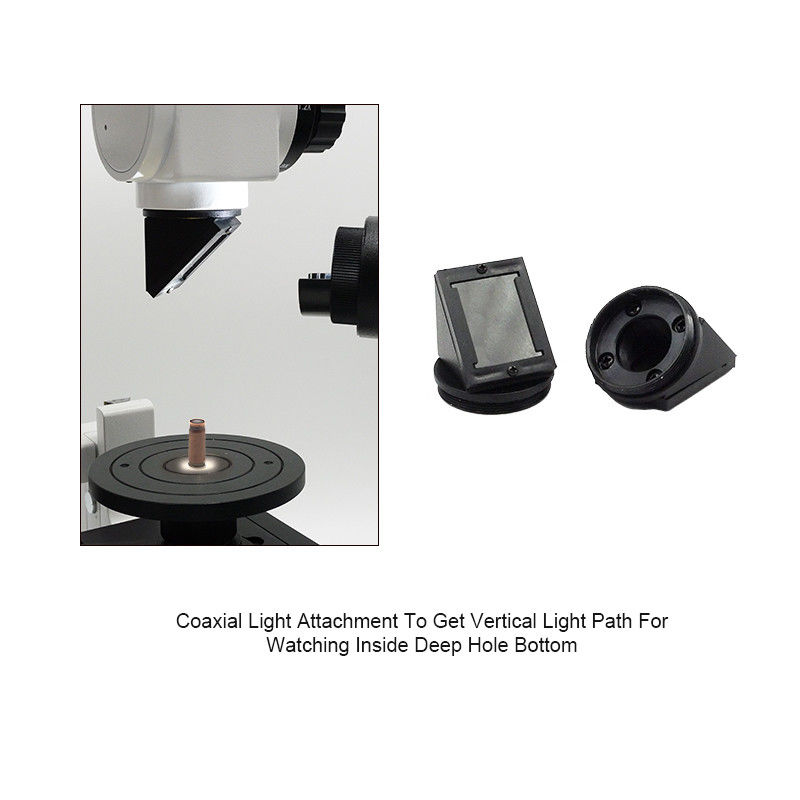

- Comprehensive Accessories: Includes coaxial light, polarizing light, UV lens, and color filters
- Power: 80~240V wide range voltage
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 3.8x~230x |

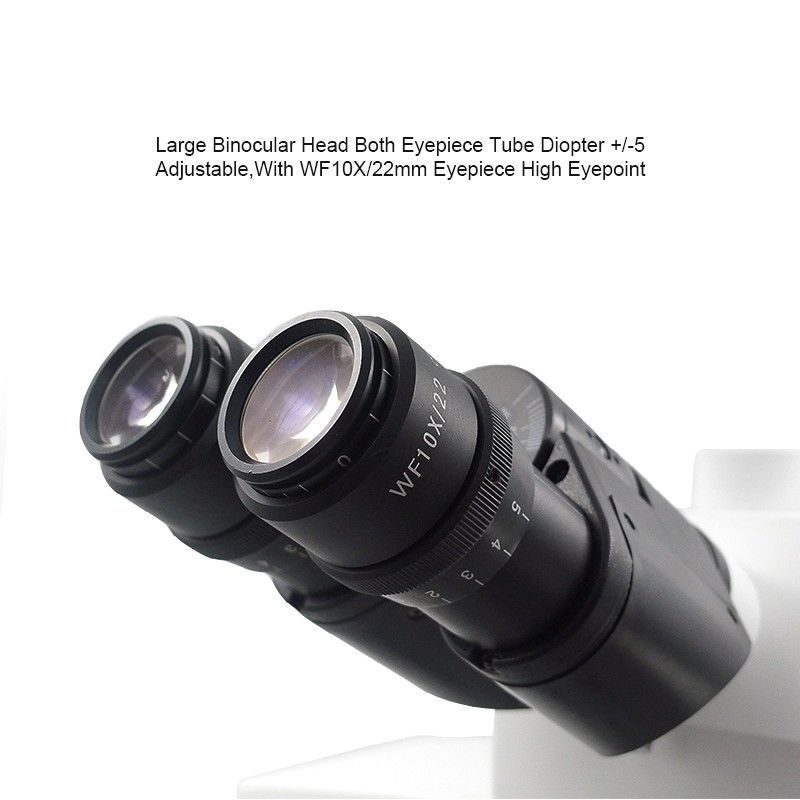

| Head | Binocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable |
| Eyepiece | WF10x/22mm, High Eyepoint WF20x/12mm, High Eyepoint |
| Objective | 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x Auxiliary Lens 0.4x, 2.0x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |
| Magnification Correcting | Magnification Correction System, With Correcting Lens |

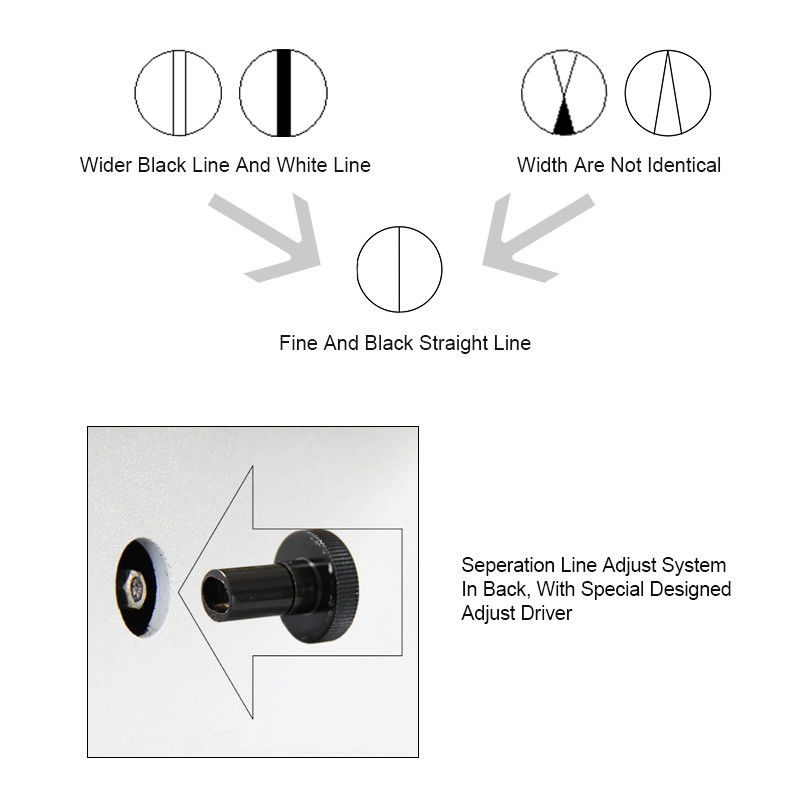

| Separation Line Adjusting | Separation Line Adjust System In Back, With Special Designed Adjust Driver |
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |

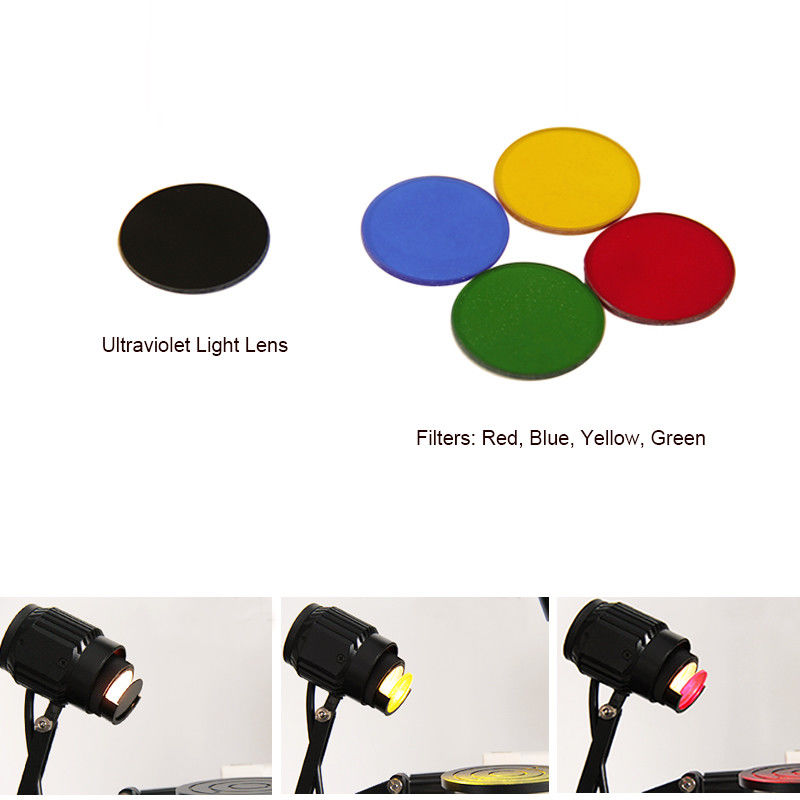

| Light Source | 12V50W Fan Cooling Strong Halogen Light (2pcs) 5W LED Cold Light (2pcs) Coaxial Light Lens (2pcs) Polarizing Light Lens (2pcs) Ultraviolet Light Lens (2pcs) Filters: Red, Blue, Yellow, Green (2pcs each) |
| Adapter | 0.5x CCD Adapter For Digital Camera (1pc) Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon) |
| Power | 80~240V Wide Range Voltage |

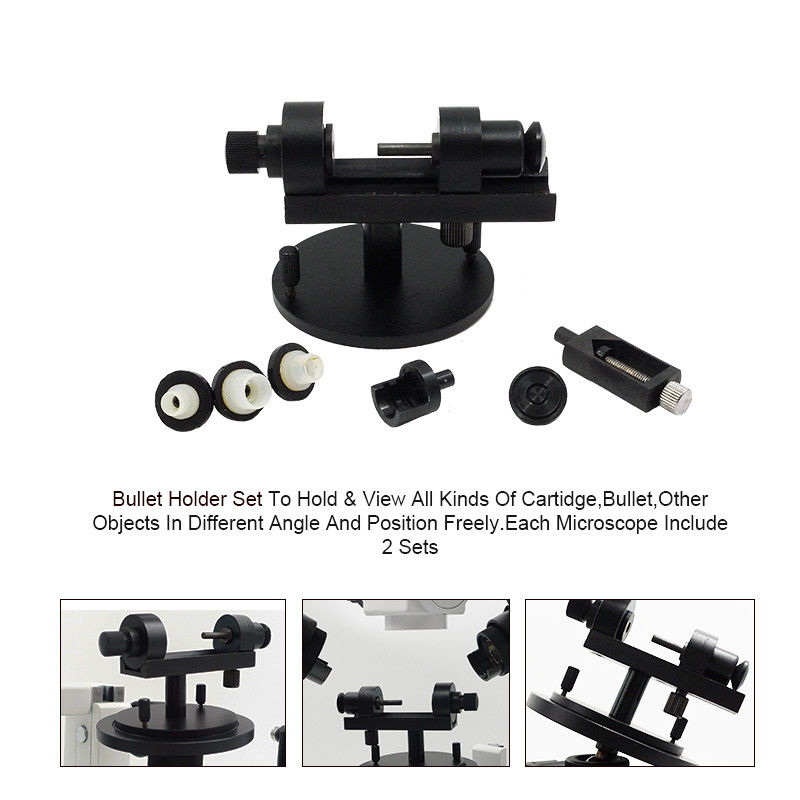

| Bullet Holder | Standard Bullet Holder 2 Sets |
| Dimension | Instrument Size 37*30*63cm |
Optional Accessories
| Accessory | Details |
|---|---|

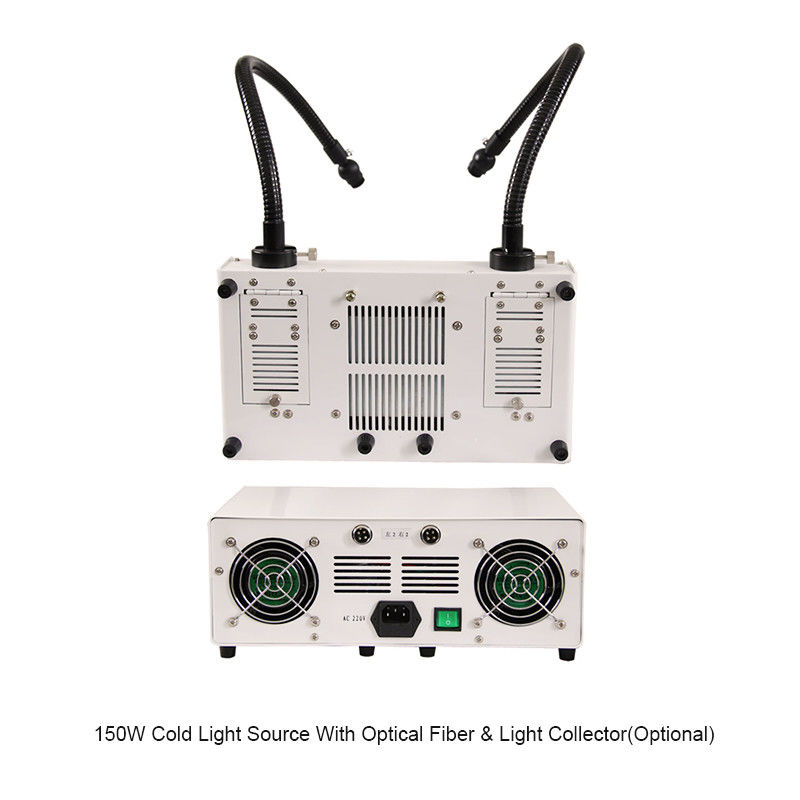

| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector (A56.1821) |
| Bullet Holder | Motorized Bullet Holder 1 Set (A54.1813) |
| LCD Pad Digital Camera | 9.7'' LCD Pad Digital Camera, Android System (A59.3520) |
