Monocular 40x - 400x Polarizing Light Microscope LED Light A15.0011

Monocular 40x - 400x Polarizing Light Microscope LED Light A15.0011
Monocular 40x - 400x Polarizing Light Microscope LED Light A15.0011 Monocular 40x - 400x Polarizing Light Microscope LED Light A15.0011

Large Image :  Monocular 40x - 400x Polarizing Light Microscope LED Light A15.0011

Product Details:
Place of Origin: China
Brand Name: OPTO-EDU
Certification: CE
Model Number: A15.0011
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1month
Payment Terms: T/T,West Union and Paypal
Supply Ability: 10000
Detailed Product Description
Application: Educational Certification: CE
Drawtube: Monocular Illumination: LED Lamp
Nosepiece: Triple Stage: Round Stage
High Light:

student compound microscope

,

compound light microscope

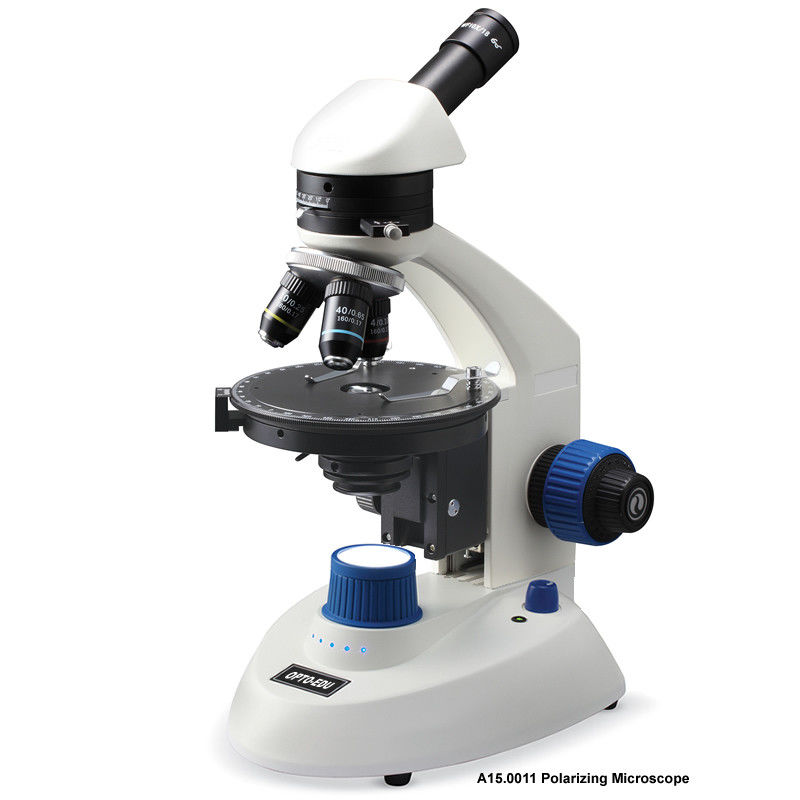

Monocular 40x - 400x Polarizing Light Microscope LED Light A15.0011





A15.0011Polarizing Microscope, newly developed in 2015with modern deisgn and high optical quality, is ideal tools in educational field.

--Monocular Head
--Triuple Nosepiece
--Round Double Layer Mechnical Working Stage
--N.A.1.25 Condenser, Iris Diaphragm

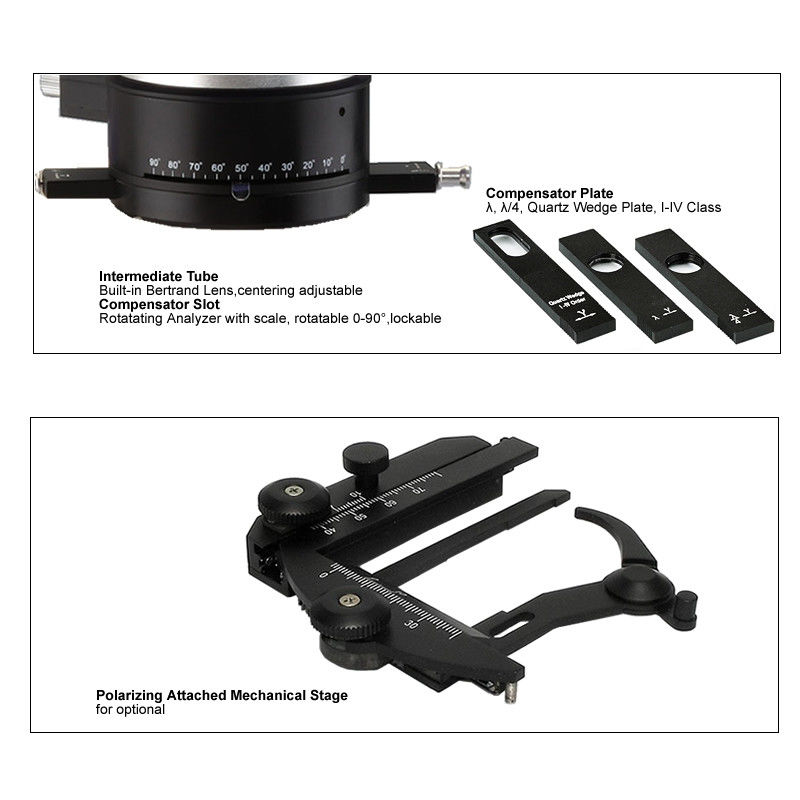

--Polarizer & Analyzier, Built-in Bertrand Lens, Compensator
--Colorful Focusing Knob, Light Collector and Power Switch
--LED Power On/Off Indicator
--LED Brightness Adjustment Indicator
--Cordless Rechargeable Battery Built-in





Specification

A15.0011 Polarizing Microscope
Head
Monocular Head, 30° Inclined, 360° Rotatable
Eyepiece
WF10x/18mm, WF15x/13mm
Nosepiece Triple Nosepiece, Ball Bearing Inner Locating
Objective Achromatic Objective 4x, 10x, 40x (S)
Working Stage Round, Diameter 142mm, Rotatable 360°, Division 1°, Vernier division 6, Lockable
Focusing Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
Condenser N.A. 1.25 Condenser, Iris Diagraphm, Filter
Polarizing Analyzer :
0-90° Rotatable,Can Be Moved Out Of Optical Path For Single Polarizing Observe
Betrand Lens Built-in
Compensator : λ Slip (First Class Red) , 1/4λ Slip, Quartz Wedge Plate (Optional)
Polarizer :
Mounted Under Abbe Condenser, 360° Rotatable
Light Source High Light LED, Brightness Adjustable, With LED Indicator
Power Cordless Built-in Rechargeable Battery
100~240V Wide Range Voltage
Power On/Off LED Indicator
Packing Net Weight 4.80Kgs/pc,
Packing 2 pcs/Carton, G.W. 10Kgs, Size 34*48*43cm
