Motorized Digital Forensic Comparison Microscope with CE and Rohs Certification for Laboratory Research
-
Highlight
transmitted light microscope
,bullet comparison microscope
-
ApplicationsLaboratory|Research
-
CertificationCE|Rohs
-
DrawtubeBinocular
-
IlluminationLED
-
Magnification2x~240x
-
TheoryComparison Microscope
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA18.1829
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month

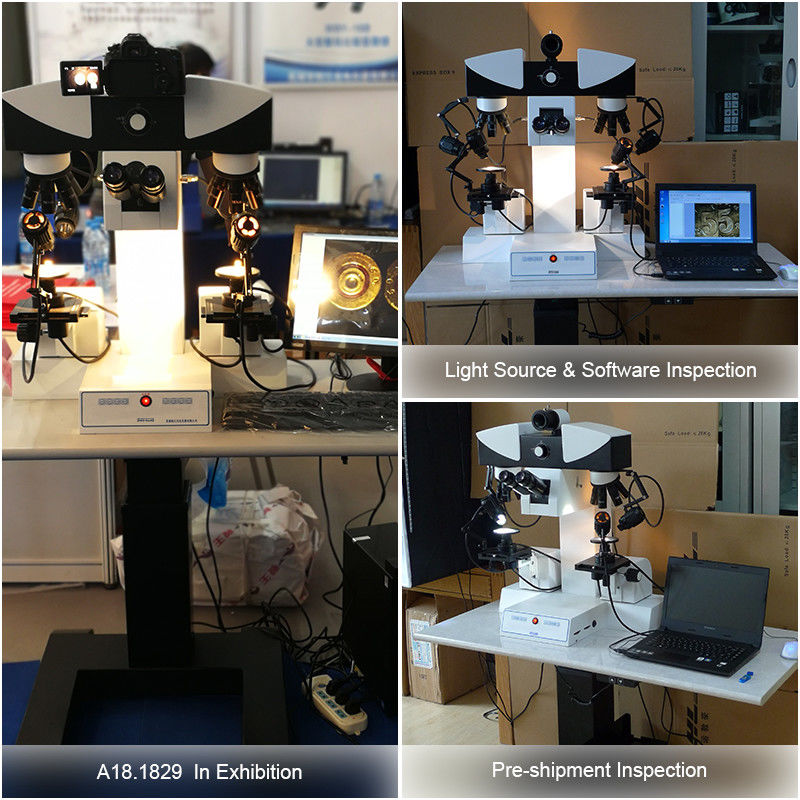

Motorized Digital Forensic Comparison Microscope with CE and Rohs Certification for Laboratory Research
Laboratory Research Bullet Comparison Microscope CE Rohs A18.1829

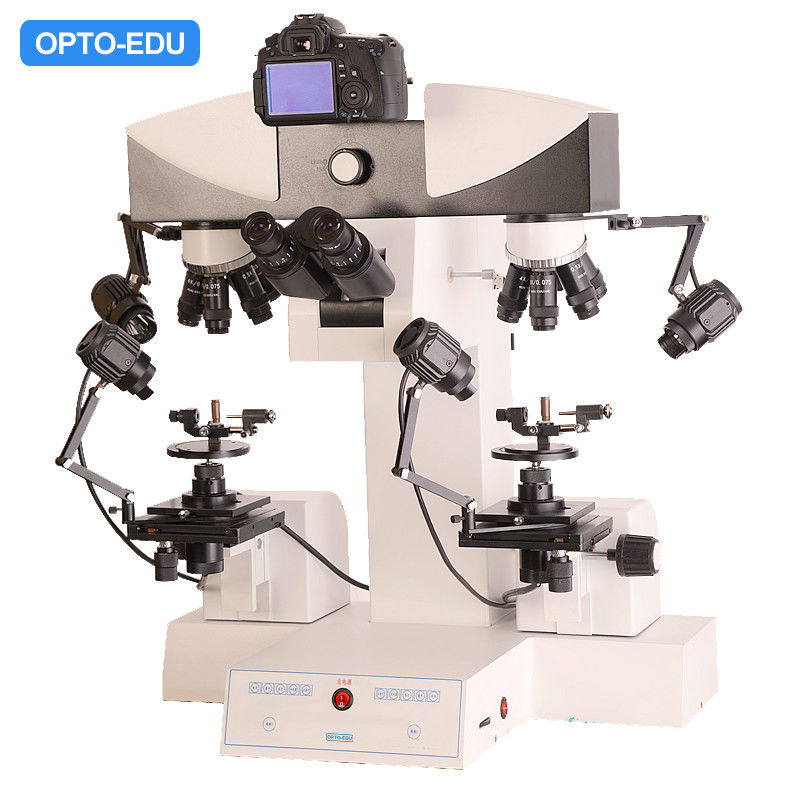

Motorized Digital Forensic Comparison Microscope with Motorized Working Table

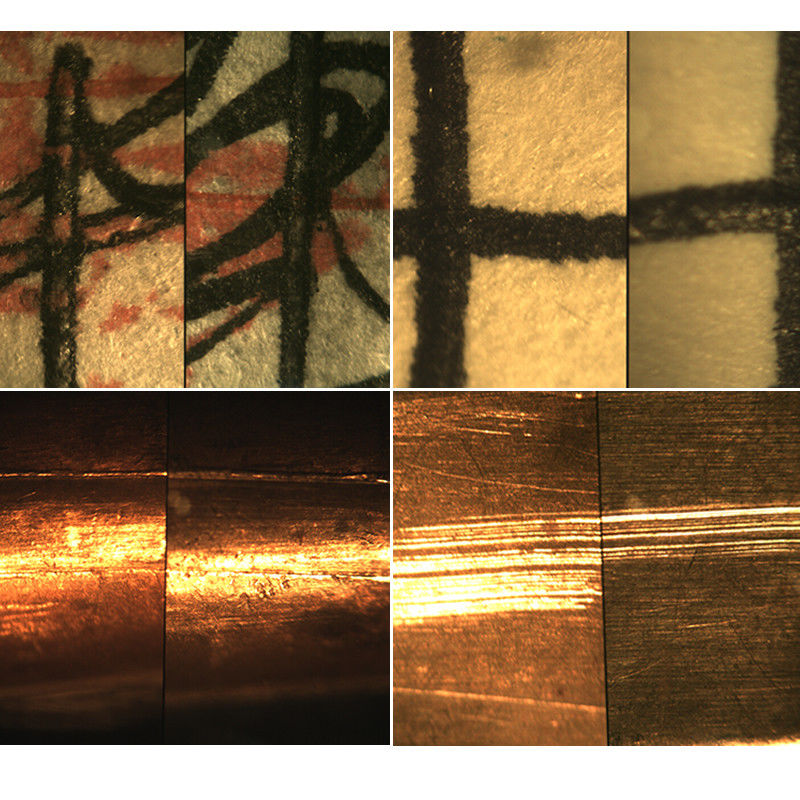

The A18.1829 Motorized Digital Forensic Comparison Microscope, newly developed in 2013, is designed for forensic science laboratory research work. It's suitable for comparing bullets, cartridge cases, cutting objects, paper documents and more. The system can be fully controlled manually or via computer software, featuring a built-in high resolution digital color camera for realtime image and video output.
Key Features
- Magnification range: 2x~240x
- 0-45° tiltable binocular head with adjustable interpupillary distance (48~75mm)
- 6-hole click stop nosepiece with LWD infinity plan achromatic objectives

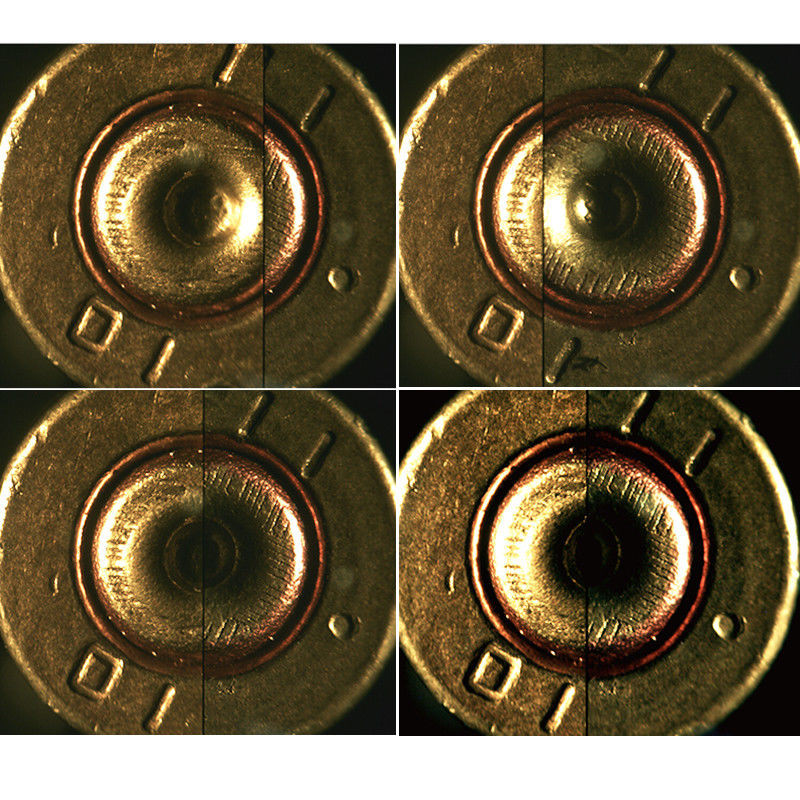

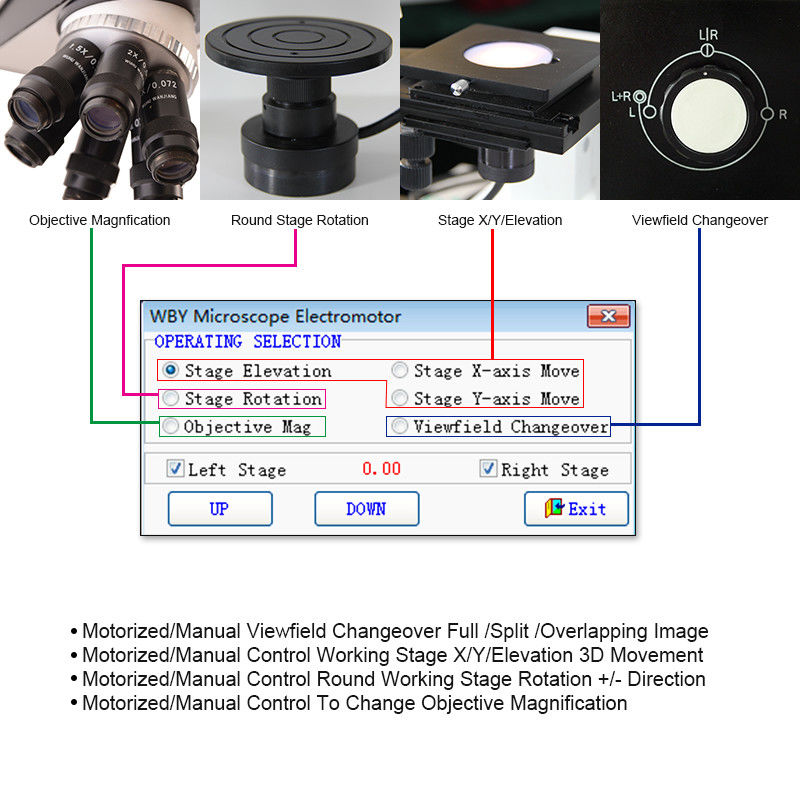

- Motorized/manual viewfield changeover (full/split/overlapping image)
- 3D motorized/manual control working stage movement (X/Y/Z)
- Built-in 3.0M high resolution color CCD camera with USB 2.0 output

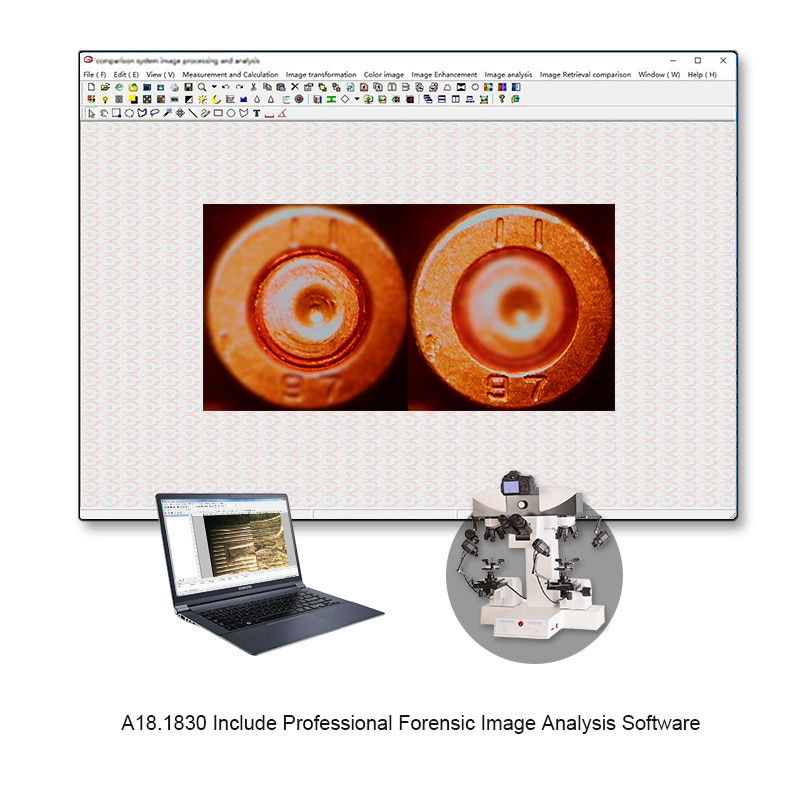

- Includes professional forensic image analysis software
Technical Specifications
| Component | Specification |
|---|---|

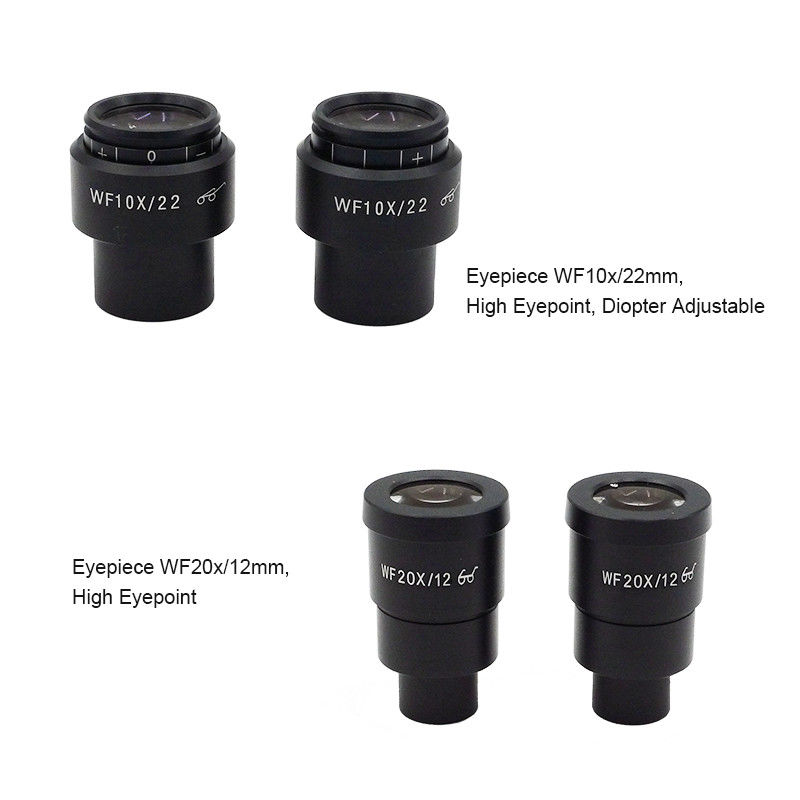

| Eyepiece | WF10x/22mm, High Eyepoint WF20x/12mm, High Eyepoint |

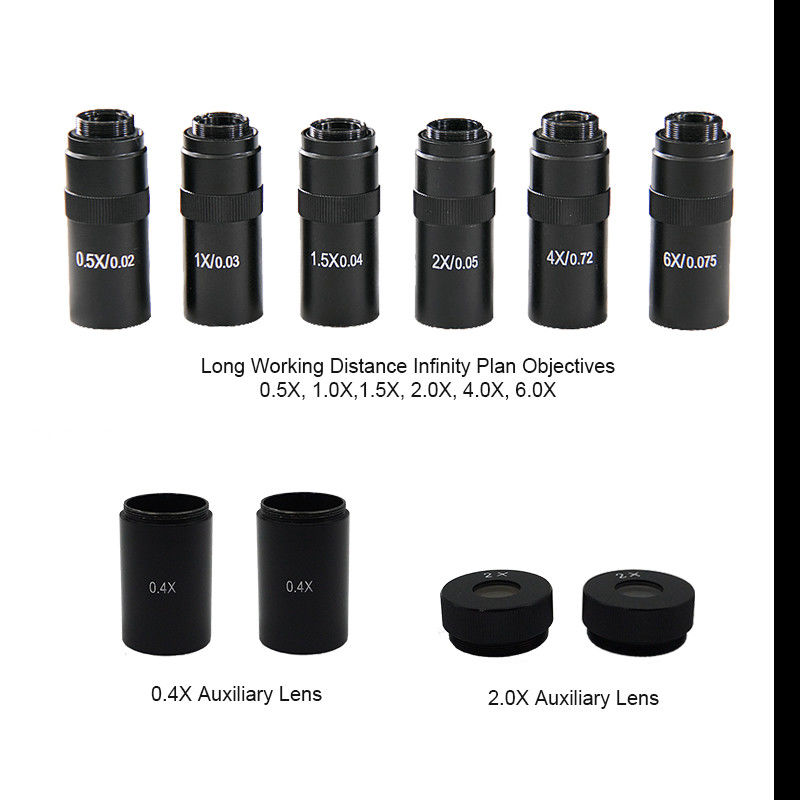

| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x, 6x Auxiliary Lens 0.4x, 2.0x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |

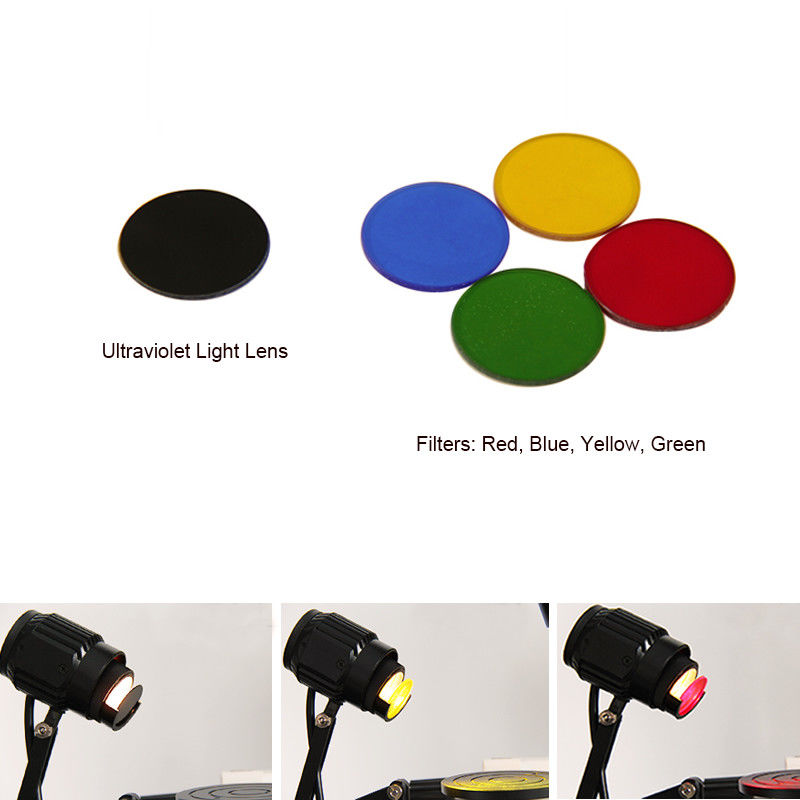

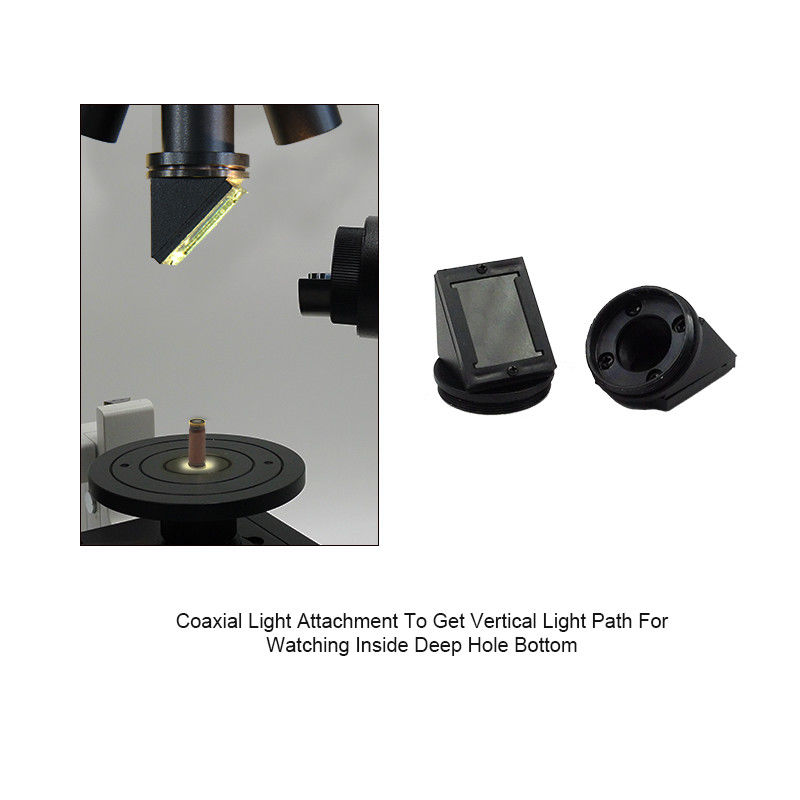

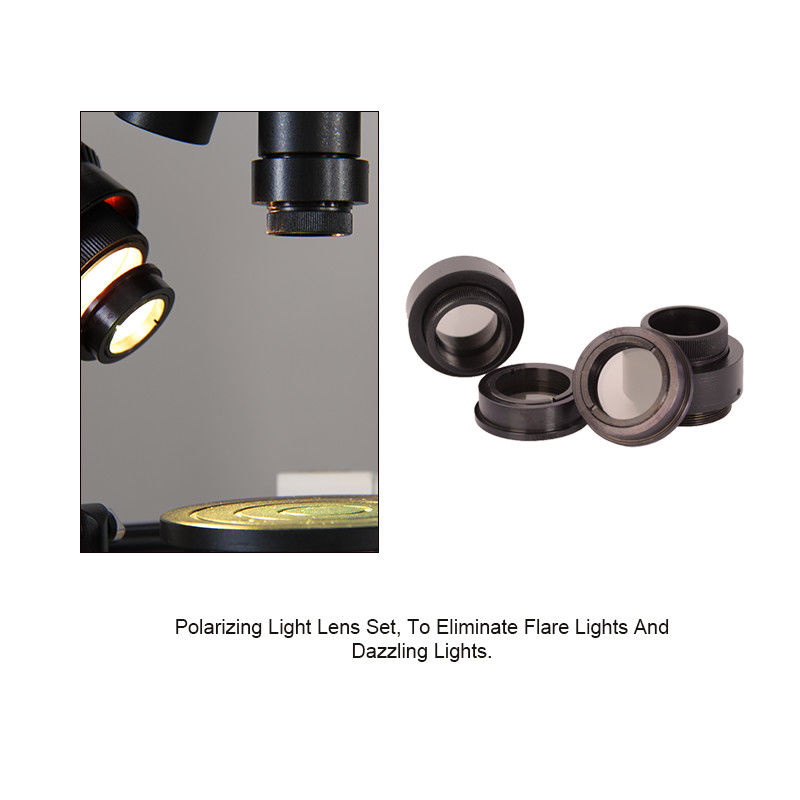

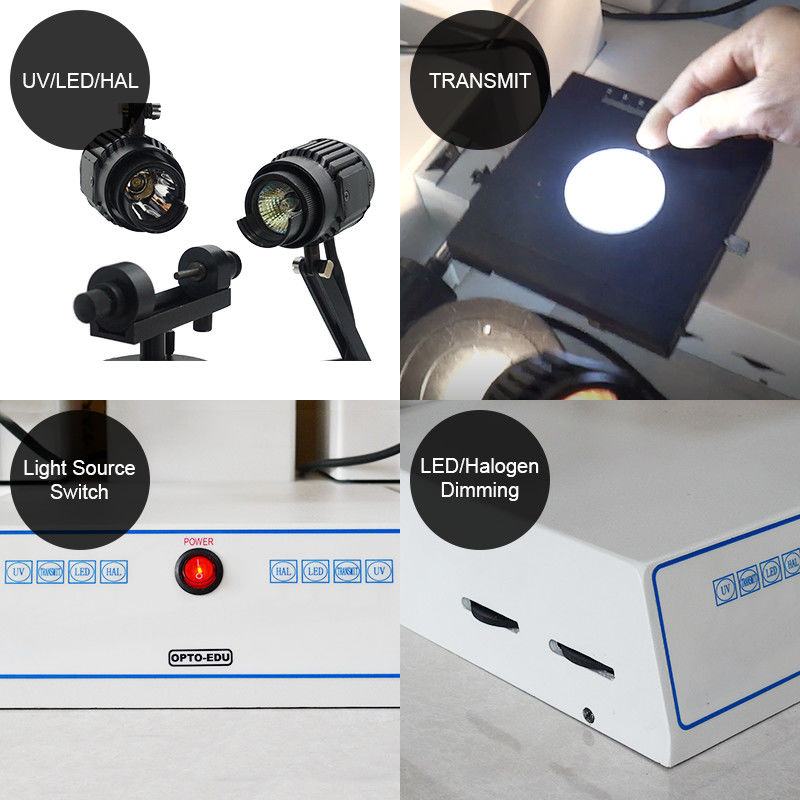

| Light Source | Multiple options including 12V50W Halogen, 5W LED, Coaxial, Polarizing, UV, and various filters |
| Power | 80~240V Wide Range Voltage |
| Dimensions | 40*60*72cm |
Magnification Chart
| Objective | Eyepiece 10X | Eyepiece 20X | Photography & Video System | Working Distance |
|---|---|---|---|---|
| 1X/0.03 | 10X/φ22 | 20X/φ12 | Measure According to Monitor & Digital Camera | 102mm |
| 1.5X/0.04 | 15X/φ15 | 30X/φ8 | ||
| 2X/0.05 | 20X/φ11 | 40X/φ6 | ||
| 4X/0.072 | 40X/φ5.5 | 80X/φ3 | ||
| 6X/0.075 | 60X/φ3.7 | 120X/φ2 | ||
| 0.5X/0.02 | 5X/φ44 | 10X/φ24 | 138mm |

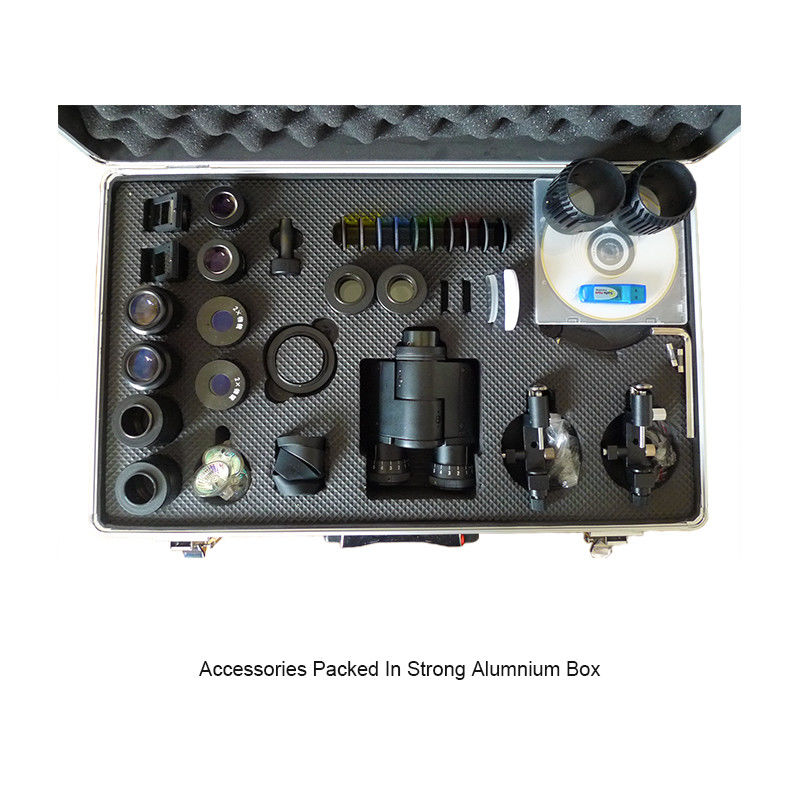

Standard Accessories

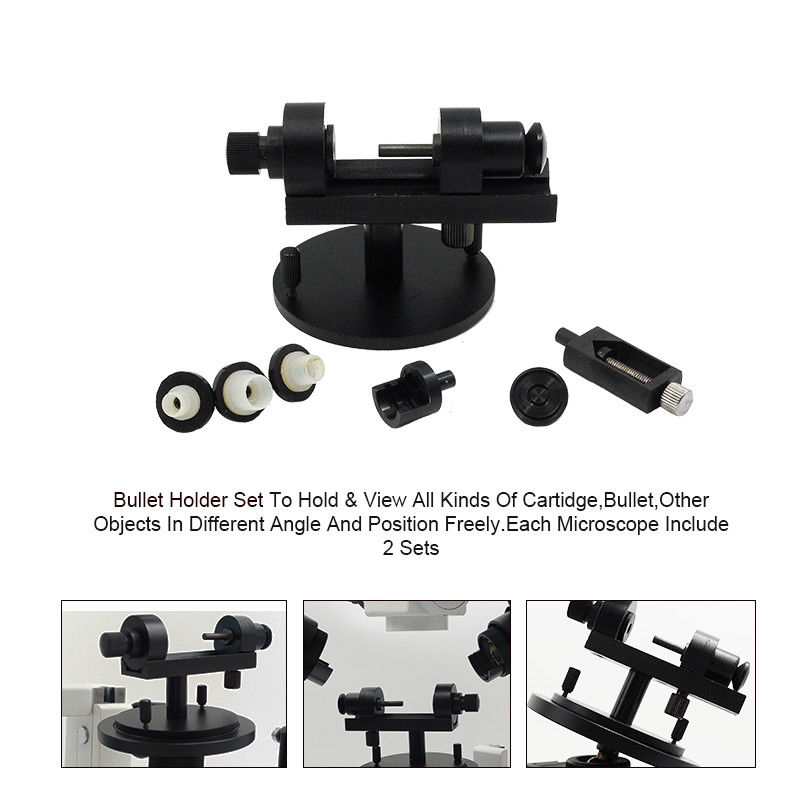

- Standard Bullet Holder 2 Sets
- Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
- 0.5x CCD Adapter For Digital Camera
- Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
- Included Laptop with Professional Forensic Image Analysis Software
Optional Accessories

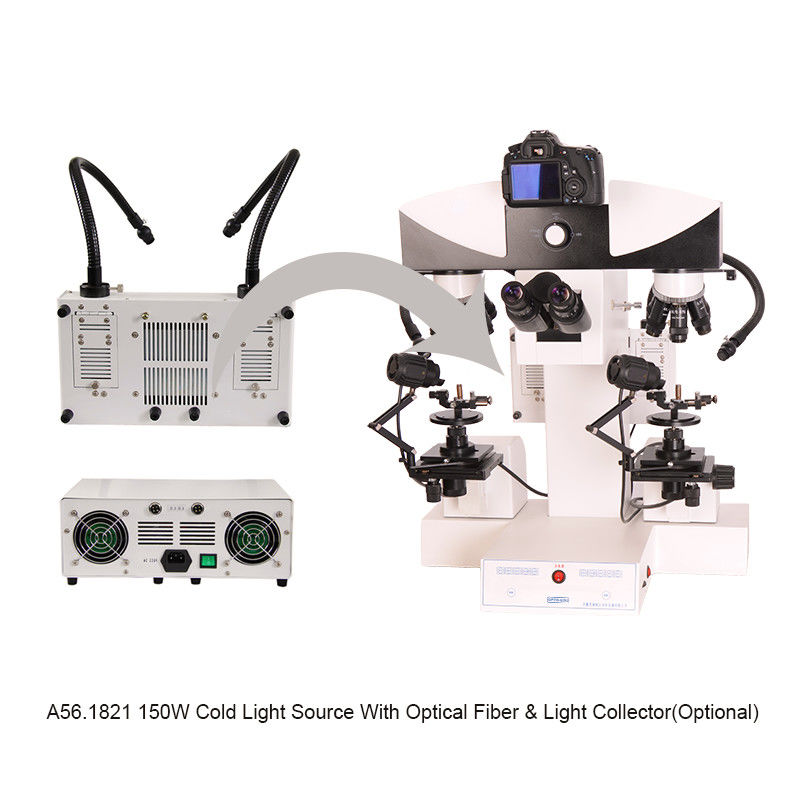

- 150W Cold Light Source, With Optical Fiber & Light Collector (A56.1821)

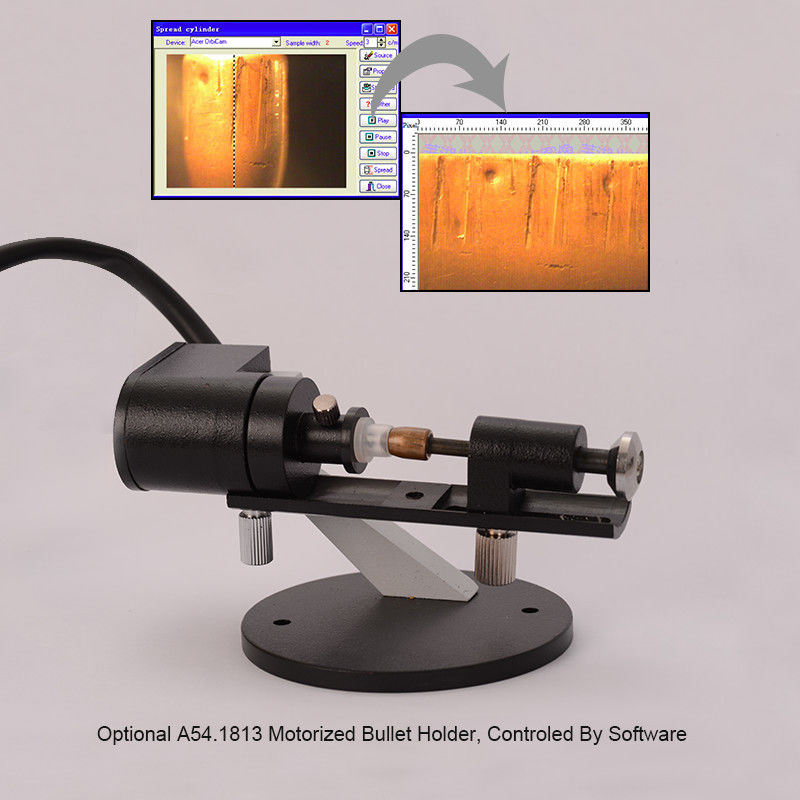

- Motorized Bullet Holder 1 Set (A54.1813)
